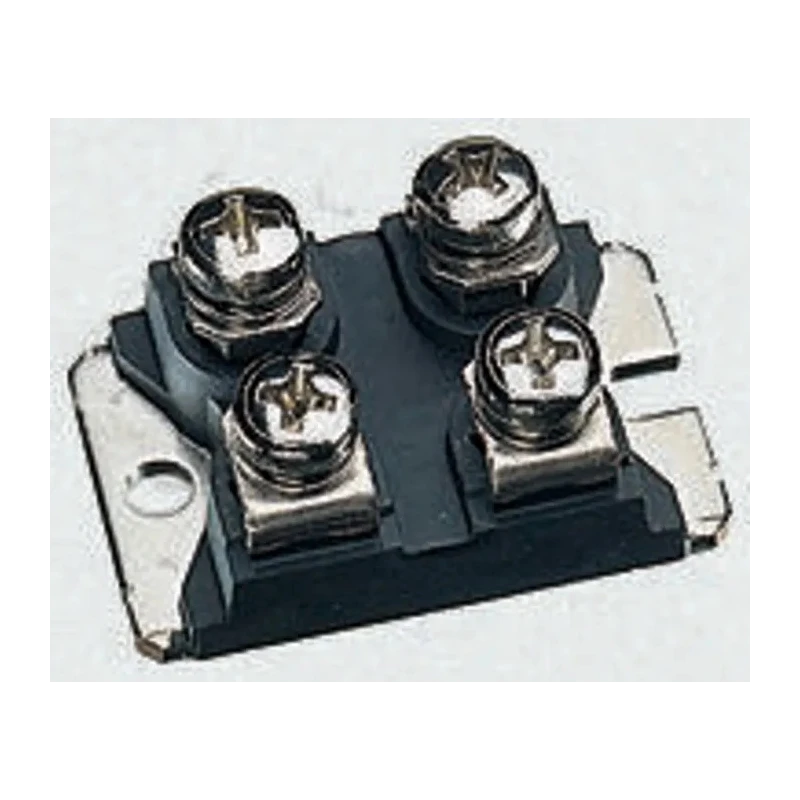

IXYS 600 V 30 A Switching Diode 4-Pin SOT-227 DSEI2X30-06C

The IXYS DSEI2X30-06C is a robust and high-efficiency switching diode designed for demanding electronic applications. This diode supports a maximum continuous forward current of 30 A and can withstand a peak reverse repetitive voltage of 600 V, making it suitable for power conversion, rectification, and switching tasks in industrial and electronic circuits.

Its isolated diode configuration combined with a switching rectifier type offers exceptional electrical isolation and fast recovery characteristics, essential for high-speed electronic switching environments. The device operates reliably over a broad temperature range from -40°C to 150°C, which enables its use in harsh industrial and automotive settings.

Housed in a durable 4-pin SOT-227 package, the diode provides compact and secure mounting on panels, facilitating easy integration into various PCB designs. The diode's maximum forward voltage of 1.6 V ensures efficient conduction with minimal power loss. Furthermore, the peak reverse recovery time is a swift 50 nanoseconds, optimizing performance in switching applications.

Technical dimensions measure 38.23 mm in length, 25.42 mm in width, and 9.6 mm in height, balancing size and performance. It supports a peak non-repetitive forward surge current of 320 A for surge tolerance, reinforcing its suitability for industrial power electronics, HVAC systems, automotive electronics, and manufacturing equipment.

Rated maximum continuous forward current of 30 A for heavy-duty applications. Peak reverse repetitive voltage of 600 V ensuring voltage resilience. Isolated diode configuration aids in superior electrical performance. Wide operating temperature range from -40°C to 150°C.

Low maximum forward voltage of 1.6 V reduces energy losses. Quick peak reverse recovery time of 50 ns supports efficient switching. Compact SOT-227 4-pin package for panel mounting. High surge current capability of 320 A peak non-repetitive forward surge current.

Originates from Philippines, reflecting trusted manufacturing standards.

This diode is ideal for use in industrial automation, power electronics, and electronic devices requiring reliable and fast switching diodes. Its combination of high current rating, voltage tolerance, and fast switching time enhance the efficiency and durability of electronic circuits.
