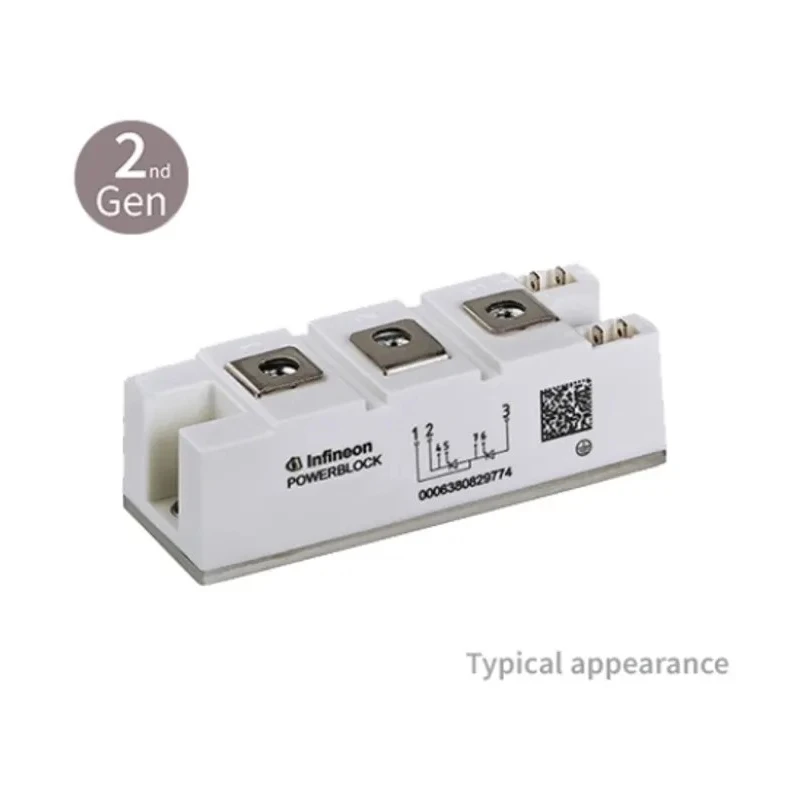

Infineon 2200 V 226 A Rectifier Diode Module Mains diode module 3-Pin Eco Block DD180N22SHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8.5mm |
| Brand | Infineon |
| Height | 30mm |
| Length | 94mm |
| Model | DD180N22SHPSA1 |
| Width | 34mm |
| Mount Type | Screw |
| Series | DD180N22S |
| Maximum Operating Temperature | 135°C |
| Package Type | Eco Block |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 226A |
| Peak Reverse Repetitive Voltage Vrrm | 2200V |
| Diode Configuration | Series |
| Rectifier Type | Mains diode module |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5750A |
| Maximum Forward Voltage Vf | 1.39V |
Key Features
- The diode has a 3-pin Eco Block screw mount package ensuring high reliability and stable operation.
- It operates within a temperature range from -40°C to 135°C for robust industrial performance.
- The module features series diode configuration and solder bond technology.
- Peak non-repetitive forward surge current rating is 5750 A for transient overcurrent tolerance.
- It offers a maximum forward voltage drop of 1.39 V for energy-efficient conduction.
- The compact dimensions include 94 mm length, 34 mm width, and 30 mm height for convenient mounting.
- The device includes a solid base plate for easy and fast assembly to heatsinks or busbars.
- Designed for high current applications with predictable high performance and lifetime due to 100% x-ray monitoring.
Product Description
Infineon DD180N22SHPSA1 Rectifier Diode Module is a high-performance mains diode module designed for industrial and electronic power applications. Rated for a peak reverse repetitive voltage of 2200 V and a maximum continuous forward current of 226 A, this module provides robust switching and rectification capabilities under demanding conditions.
The diode module is constructed in a 3-pin Eco Block package with screw mount type, incorporating solder bond technology for enhanced reliability and efficient thermal performance. It supports operation across a wide temperature range from -40°C minimum to 135°C maximum, accommodating harsh industrial environments. Its maximum forward voltage is limited to 1.39 V, optimizing efficiency in high-current circuits.
The DD180N22SHPSA1 features a peak non-repetitive forward surge current of 5750 A, making it suitable for transient overload situations. The compact design with dimensions 94 mm length, 34 mm width, and 30 mm height allows for space-efficient installation on solid base plates, enabling fast and easy mounting.
This rectifier diode module is manufactured as part of Infineon's second generation with increased current rating. The module boasts a cost-effective solution with predictable high performance and lifetime ensured by 100% x-ray monitoring during production.
Applications for the DD180N22SHPSA1 include power conversion, industrial power supplies, electronic controls, and other demanding semiconductor diode requirements in industrial manufacturing, power electronics, and electrical equipment.
The diode module's 3-pin Eco Block package enables secure screw mounting and electrical insulation. High surge current and forward current ratings support reliable industrial operation. Wide operating temperature range ensures durability in tough environments.
Compact module size suits integration in dense power assemblies and control panels. Infineon’s quality production processes maximize lifetime and operational predictability. No automotive or special certifications imply usage focused on industrial and commercial sectors.
Discover this and other semiconductor components in the Schottky Diodes & Rectifiers category at EnvMart, perfect for engineering, manufacturing, and electronics design professionals seeking trusted high-quality solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Infineon DD180N22SHPSA1 is 226 A.
This rectifier diode module is rated for a peak reverse repetitive voltage of 2200 V.
It operates within a temperature range from -40°C to 135°C, accommodating harsh industrial environments.
The maximum forward voltage drop for this model is 1.39 V, optimizing energy efficiency during conduction.
The peak non-repetitive forward surge current rating is 5750 A, allowing for transient overload tolerance.
This model features a 3-pin Eco Block package with a screw mount type for secure installation.
The dimensions of this diode module are 94 mm in length, 34 mm in width, and 30 mm in height.
The diode configuration of the Infineon DD180N22SHPSA1 is series, which enhances its performance in high-current applications.
It is suitable for power conversion, industrial power supplies, and electronic controls in demanding semiconductor requirements.
The module incorporates solder bond technology for enhanced reliability and efficient thermal performance.
The Infineon DD180N22SHPSA1 is manufactured in India.
This model has a pin count of 3, facilitating its connection in electronic circuits.
