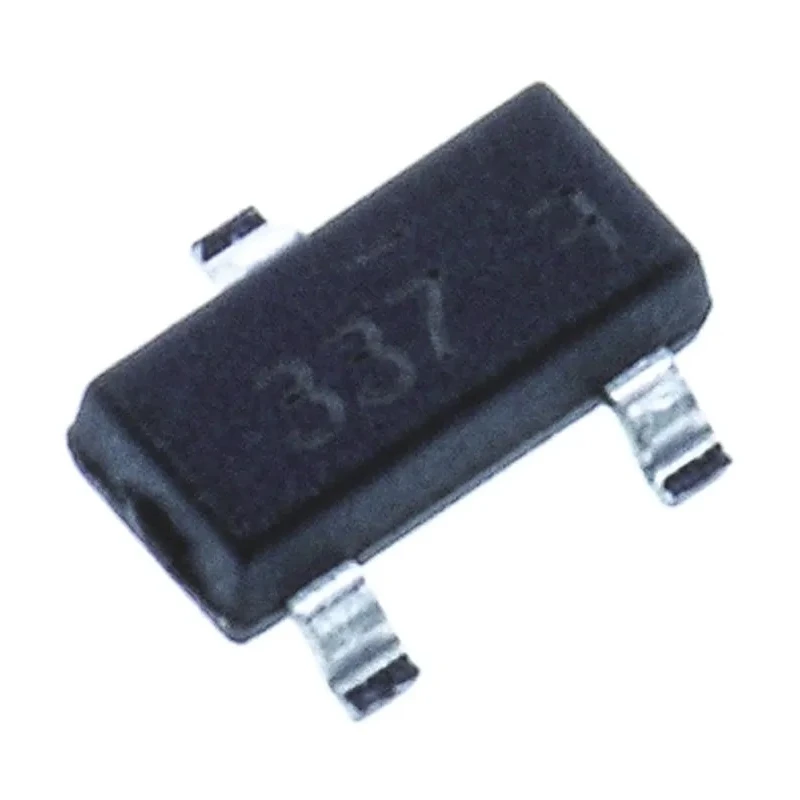

onsemi PowerTrench Type P-Channel MOSFET 150 V, 800 mA, Enhancement Mode, 3-Pin SOT-23 FDN86265P

onsemi FDN86265P PowerTrench Type P-Channel MOSFET is an advanced semiconductor device optimized for efficient power switching applications with a maximum drain-source voltage of 150 V and maximum continuous drain current of 800 mA. Designed in a compact 3-pin SOT-23 package, this enhancement mode MOSFET offers superior performance in surface-mount circuits.

The device incorporates onsemi's PowerTrench technology, featuring a shielded-gate structure that provides excellent charge balance, minimizing switching losses and supporting fast switching speeds with a typical gate charge (Qg) of 2.9 nC at Vgs. Its low on-resistance of 2.2 Ω reduces conduction losses and improves overall efficiency in power management circuits.

Managing power dissipation of up to 1.5 W and operating reliably across a wide temperature range from -55°C to 150°C, the FDN86265P is suitable for demanding industrial, commercial, and electronic subsystem applications. Its compact size with length 2.92 mm, width 1.4 mm, and height 0.94 mm makes it ideal for space-constrained designs.

Designed for surface-mount technology (SMT), this 3-pin MOSFET package ensures straightforward integration into printed circuit boards requiring effective P-channel switching solutions.

This MOSFET features enhancement mode operation for efficient power switching. It supports a maximum power dissipation of 1.5 W and a maximum operating temperature up to 150°C. The device has a low gate charge of 2.9 nC, facilitating fast switching performance.

Its maximum drain-source resistance is 2.2 Ω, optimizing conduction losses. The package dimensions are compact, measuring approximately 2.92 mm in length, 1.4 mm in width, and 0.94 mm in height. Suitable for surface mount applications with a 3-pin pin count in a SOT-23 package.

Operating temperature range extends from -55°C to 150°C for robust performance in diverse environments.

Common applications include power management in electronics, industrial control systems, communication devices, and other semiconductor modules requiring reliable MOSFET switching.
