| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 13.46mm |
| Model | 794956-3 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | VAL-U-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | VAL-U-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |

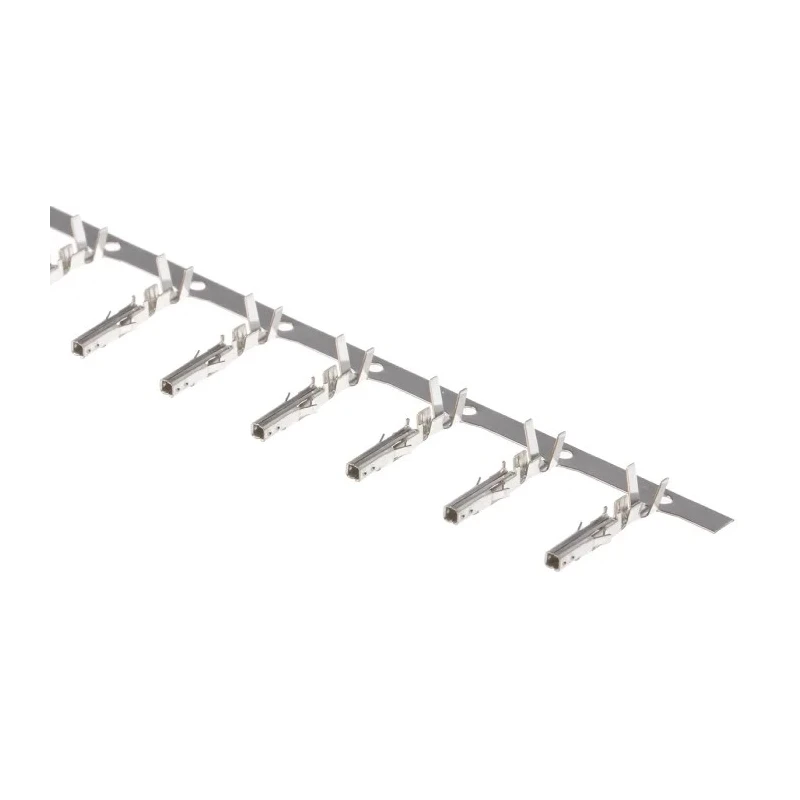

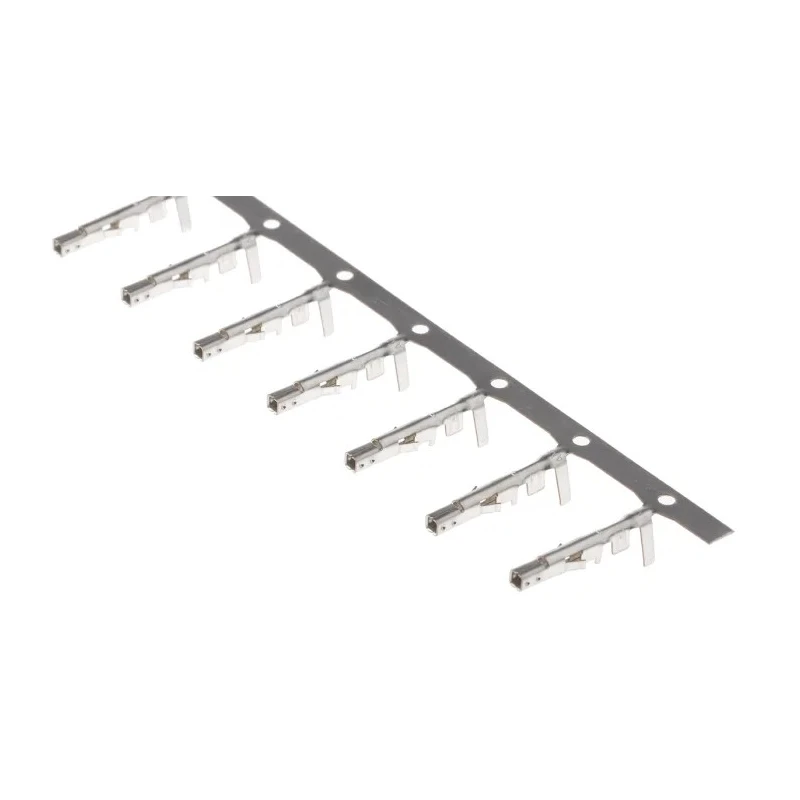

TE Connectivity 794956-3 VAL-U-LOK Series Female Crimp Terminal is engineered for reliable electrical connections in industrial and electronic applications requiring a crimped female terminal. Supporting wire sizes from 22 AWG minimum to 18 AWG maximum, this crimp contact handles currents up to 3 amperes, making it suitable for low power signal and power transfer tasks.
The contact material is phosphor bronze treated with a tin plating to provide excellent corrosion resistance and conductivity. It features a low maximum contact resistance of 20 milliohms to ensure efficient signal transmission. Designed to fit VAL-U-LOK connector housings, this terminal provides secure and stable connections.
The terminal operates reliably across a wide temperature range, from -40°C to 105°C, making it fit for use in harsh industrial environments, automotive, manufacturing, and other applications requiring robust connectivity. The crimp termination style facilitates quick, dependable assembly in wire harnessing processes.
With a compact length of 13.46 mm, the terminal is optimized for space-sensitive designs. Its female gender and precise dimensions support easier mating within VAL-U-LOK connector systems used in electronics and industrial automation.
Phosphor bronze contact material ensures mechanical strength and conductivity. Tinned plating enhances corrosion resistance and electrical performance. Compact 13.46 mm length fits tight design constraints. High reliability in temperature extremes from -40°C to 105°C.
Supports a range of wire sizes from 22 AWG to 18 AWG. Designed exclusively for use with VAL-U-LOK connector housings. Low contact resistance of 20 milliohms guarantees efficient connections. Crimp termination method ensures secure wire attachment.
This female crimp terminal is ideal for applications in electronics manufacturing, industrial automation, electrical connectors assembly, and other sectors requiring precision Crimp Contacts. The VAL-U-LOK series compatibility and robust material specifications ensure long-lasting performance.
Explore other TE Connectivity electronic components and connectors on EnvMart to complete your assembly requirements.
