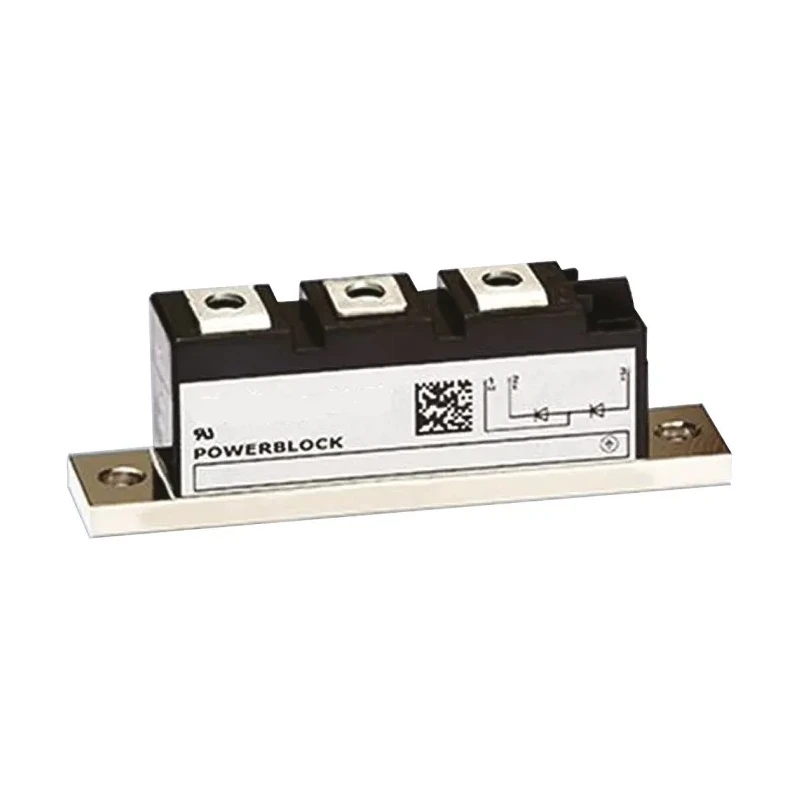

Infineon 1600 V 89 A Diode Rectifier Diode 3-Pin DD89N16KHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 30mm |
| Length | 92mm |
| Model | DD89N16KHPSA1 |
| Width | 20mm |
| Mount Type | Panel |
| Series | DD89N16K |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 89A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.8kA |
| Maximum Forward Voltage Vf | 1.5V |
Key Features
- Maximum continuous forward current of 89 A ensures reliable power handling.
- Peak reverse repetitive voltage rated at 1600 V for high voltage applications.
- Three-pin panel mount configuration for easy installation.
- Maximum forward voltage of 1.5 V reduces energy loss during operation.
- Operating temperature range from -40°C to 150°C supports varied industrial environments.
- Peak non-repetitive forward surge current of 2.8 kA supports high transient currents.
- Compact dimensions with 92 mm length, 20 mm width, and 30 mm height.
- Pressure contact technology improves fail-safe operation and prevents arcing.
Product Description
Infineon DD89N16KHPSA1 Diode Rectifier Diode 3-Pin is a panel mount rectifier diode module designed for demanding industrial applications requiring high voltage (1600 V) and current (89 A) handling capabilities. It incorporates PowerBLOCK housing with pressure contact technology that ensures easy mounting, fail-safe operation, and prevention of short arcs on failure.
This rectifier diode is part of the DD series dual diodes modules, featuring an electrically insulated copper base plate improving thermal dissipation and robustness. It is suitable for use in power controllers, soft starter units, and motor drive systems in industrial, manufacturing, and HVAC applications.
The diode operates reliably in harsh conditions, with a wide operating temperature range from -40°C to 150°C. Its maximum forward voltage of 1.5 V helps in efficient power conversion and minimal voltage drop. The device also supports a peak non-repetitive forward surge current of 2.8 kA, enabling it to withstand transient loads.
Physically, the module is compact with dimensions 92 mm length, 20 mm width, and 30 mm height, mounted using a standard 3-pin configuration for ease of integration. Automotive standard compliance is not included, making this module optimal for industrial electronics systems.
High continuous forward current rating of 89 A for heavy power applications. Peak reverse repetitive voltage of 1600 V for robust voltage handling. Panel mount type with 3-pin configuration for secure installation. PowerBLOCK housing with pressure contact technology for reliable operation.
Wide operating temperature from -40°C up to 150°C for industrial environments. Surge current tolerance of 2.8 kA for transient conditions. Compact size suitable for power controllers and drive applications.
This Infineon rectifier diode provides a reliable solution for electrical engineers and system integrators designing power electronics equipment. It ensures efficient rectification with solid thermal management and durable construction typical of Infineon's PowerBLOCK modules.
Explore more semiconductor components and Schottky diodes at EnvMart to fulfill your industrial equipment design requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 89 A, ensuring reliable power handling for demanding applications.
The peak reverse repetitive voltage for this model is rated at 1600 V, making it suitable for high voltage applications.
This rectifier diode has compact dimensions of 92 mm in length, 20 mm in width, and 30 mm in height, facilitating easy integration into various systems.
The operating temperature range for this diode is from -40°C to 150°C, allowing it to perform reliably in varied industrial environments.
The maximum forward voltage of this diode is 1.5 V, which helps reduce energy loss during operation.
This model features a panel mount configuration with a standard 3-pin setup for easy installation.
The peak non-repetitive forward surge current supported by this diode is 2.8 kA, enabling it to withstand high transient currents.
This diode is suitable for use in power controllers, soft starter units, and motor drive systems in industrial, manufacturing, and HVAC applications.
It incorporates pressure contact technology, which enhances fail-safe operation and prevents arcing during failure.
This diode is part of the DD series dual diode modules, designed for high voltage and current handling capabilities.
The peak reverse current for this model is specified at 20 mA, which is relevant for its operational characteristics.
The country of origin for this diode is India, reflecting its manufacturing location.
