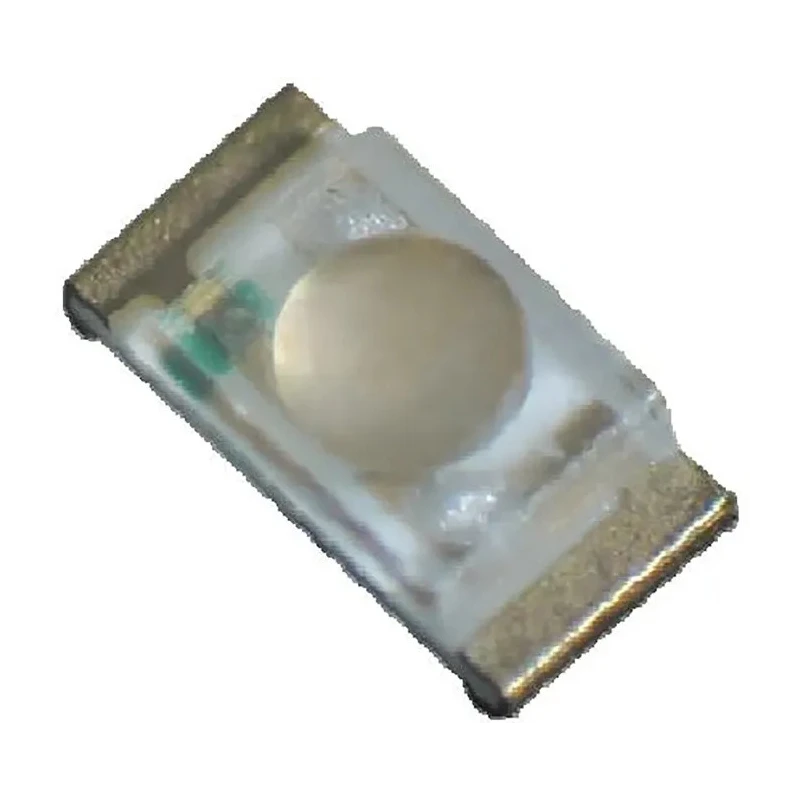

Kingbright Red LED, 2.5V, Surface Mount, 0603 Package, 170 mcd, KPHD-1608SURCK
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KPHD-1608SURCK |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPHD-1608 |
| Maximum forward current | 185mA |
| Viewing angle | 120 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 170 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 0.7 x 0.65 mm |
| Lens Shape | Dome |
Key Features
- The LED features a dominant wavelength of 630nm, emitting a bright red light.
- Designed for efficient surface mounting with a small 0603 (1.6 x 0.8 mm) package footprint.
- Delivers a brightness of 170 mcd at a low forward voltage of 2.5V.
- Wide viewing angle of 120 degrees for versatile indicator and display backlighting applications.
- Capable of handling a maximum forward current of 185mA while dissipating up to 75mW power.
- Clear lens with a dome shape provides uniform light distribution.
- Supplied in tape and reel packaging for efficient automated assembly.
Product Description
The Kingbright KPHD-1608SURCK Red LED is a high-performance surface mount diode designed for electronic, industrial, and display applications requiring reliable visual indication. Featuring a compact 0603 package with a footprint of 1.6 x 0.8 mm and a height of only 0.65 mm, this LED is ideal for modern PCB assemblies where space-saving and brightness are essential.
With a forward voltage of 2.5V and a brightness of 170 mcd, this LED delivers vivid red illumination at a dominant wavelength of 630nm. Its wide 120-degree viewing angle ensures uniform visibility, making it suitable for both indicator lights and display backlighting in diverse electronics products.
The 0603 surface mount package allows for easy integration into densely populated circuit boards. Low power consumption and 75mW maximum power dissipation support energy-efficient designs. Clear dome lens design focuses the output while maintaining wide angular coverage.
Suitable for industrial control panels, laboratory instruments, consumer electronics, and automotive indicator systems. Delivered in tape and reel packaging for streamlined automated and high-volume production.
The Kingbright KPHD-1608SURCK is RoHS compliant, making it a responsible choice for environmentally conscious manufacturers. Typical uses include industrial signal indicators, laboratory instrument displays, communication equipment, and optoelectronic devices requiring compact, reliable surface mounted LEDs.
Explore more LEDs and optoelectronic products from Kingbright and renowned brands through EnvMart’s electronics component categories.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.5V.
It can handle a maximum forward current of 185mA.
This model delivers a brightness of 170 mcd.
The dominant wavelength of the KPHD-1608SURCK is 630nm, emitting a bright red light.
It has a wide viewing angle of 120 degrees.
The LED is supplied in tape and reel packaging for efficient automated assembly.
The 0603 package has a footprint of 1.6 x 0.8 mm and a height of 0.65 mm.
The maximum power dissipation for the KPHD-1608SURCK is 75mW.
It features a dome-shaped lens for uniform light distribution.
Yes, this LED is RoHS compliant.
It is suitable for industrial control panels, laboratory instruments, consumer electronics, and automotive indicator systems.
The KPHD-1608SURCK LED has 2 pins.
