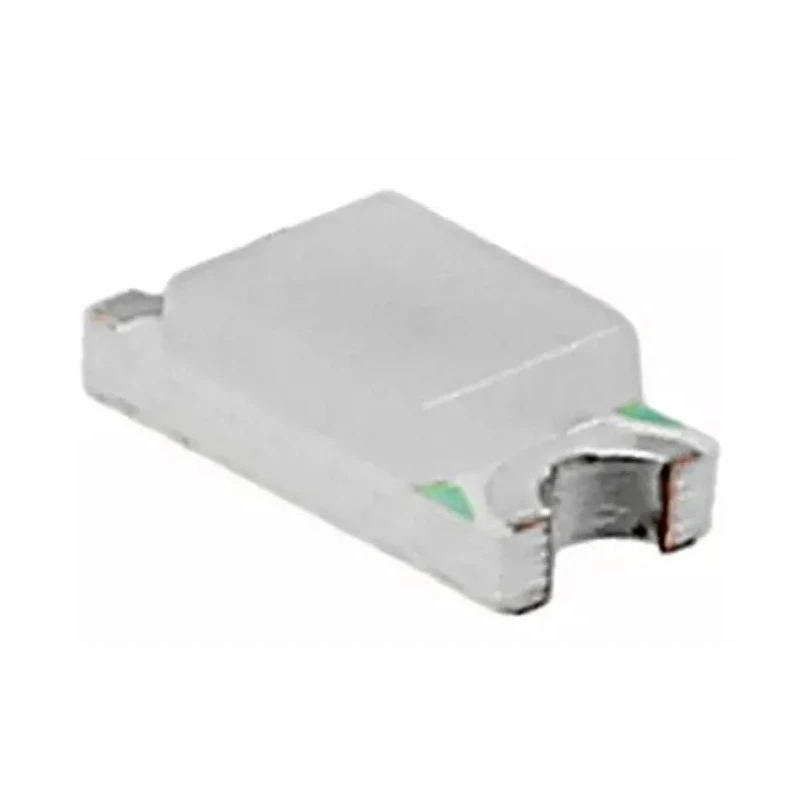

VCC Surface Mount White LED VAOL-S12WR4, 3.15V, 100mA, 3216 Package, Tape & Reel

Free Delivery in India | Lowest Global Shipping Charges

VCC Surface Mount White LED VAOL-S12WR4, 3.15V, 100mA, 3216 Package, Tape & Reel



Category LEDs - Light Emitting Diodes Brand VCC Condition New

Specifications

Country of Origin	Taiwan
Brand	VCC
Model	VAOL-S12WR4
Packaging	Tape & Reel
Mount Type	Surface
Series	VAOL-S12WR4
Maximum forward current	100mA
Viewing angle	140 °
Package Type	3216
Lens Colour	Yellow
Standards/Approvals	RoHS
LED Colour	White
Forward Voltage	3.15V
LED Luminosity	112 mcd
Maximum Power Dissipation	110mW
Lens Dimensions	2 x 1.5 mm
Lens Shape	Rectangular
Lens Finish	Diffused

Key Features

Reliable surface mount LED for optoelectronics applications.
White light output with 3.15V forward voltage and 100mA maximum forward current.
Compact 3216 package type for efficient space utilization.
Tape & reel packaging ensures easy component handling and automated placement.
140° viewing angle supports wide electronic display and indicator designs.
Diffused lens finish optimizes luminosity and uniformity.
Rectangular, yellow lens with 2 x 1.5 mm dimensions.
Maximum power dissipation rated at 110mW for robust performance.

Product Description

VCC VAOL-S12WR4 is a high-quality surface mount LED designed for demanding optoelectronic applications, delivering reliable white light output. It operates at a forward voltage of 3.15V and supports a maximum forward current of 100mA, making it suitable for various electronic systems, displays, and indicator panels.

The LED features a compact 3216 package type that ensures efficient space utilization in PCB layouts and automated production environments. With tape & reel packaging, bulk handling and component placement become seamless during manufacturing.

The VAOL-S12WR4 provides a broad viewing angle of 140°, allowing for wide-area indication and visibility in display modules. Its diffused lens finish and rectangular shape (yellow lens, 2 x 1.5 mm) enhance uniform light distribution and reduce glare, supporting clear device operation in professional equipment.

With a maximum power dissipation of 110mW and luminous intensity of 112 mcd, this LED delivers robust brightness while maintaining durability under continuous operation. The lens shape, color, and finish are optimized for both visual appeal and technical performance in electronics.

The VAOL-S12WR4 is compliant with RoHS standards, ensuring responsible manufacturing and environmental safety. It is designed for compatibility with infrared and vapor phase reflow soldering processes, supporting industrial assembly requirements.

This LED is primarily intended for industrial, laboratory, commercial, and manufacturing applications where reliable visual indicators are critical - including control panels, display modules, medical equipment indicators, and more.
