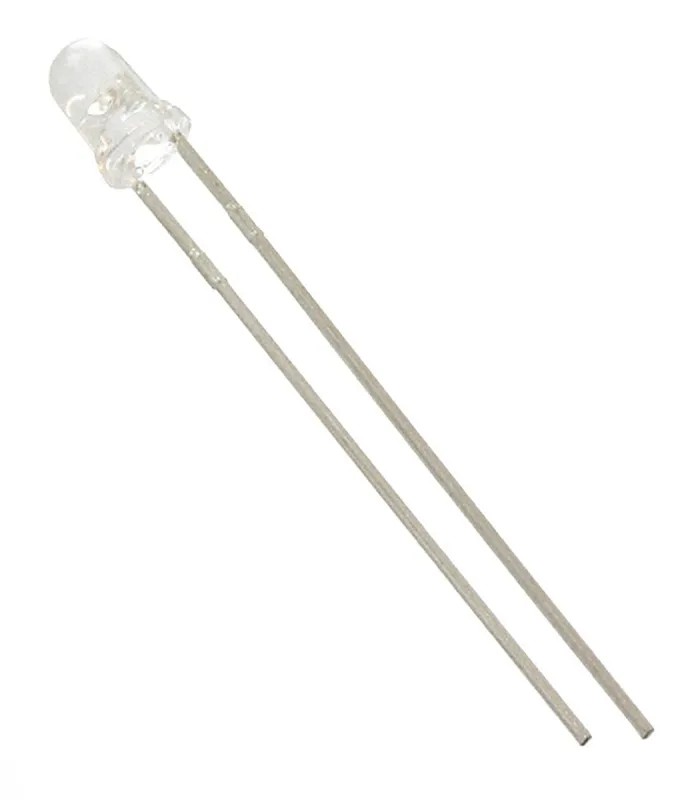

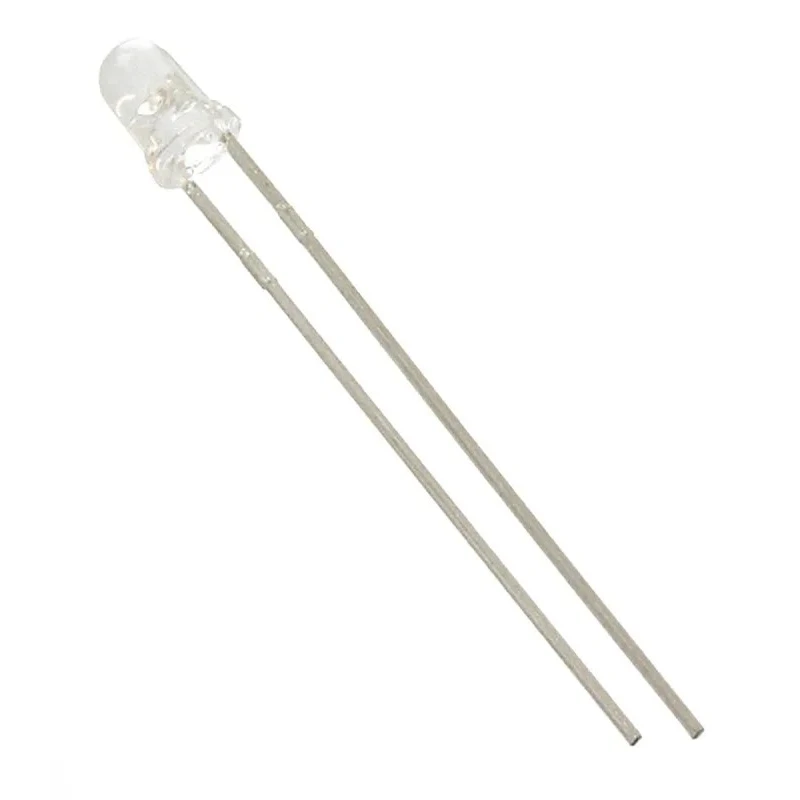

Lite-On Orange, Yellow LED 3 mm (T-1) 2.4V 60mA Through Hole LTL1CHKFKNN
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Lite-On |
| Model | LTL1CHKFKNN |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Number Of Leds | 1 |
| Maximum forward current | 60mA |
| Viewing angle | 45 ° |
| Package Type | 3 mm (T-1) |
| Standards/Approvals | RoHS |
| LED Colour | Orange, Yellow |
| Dominant Wavelength | 605nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 320 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 5.2 x 3.8 mm |
| Lens Shape | Round |
Key Features
- Features a 3 mm (T-1) round lens with clear finish for effective light emission.
- Through-hole mount construction allows for reliable PCB installation.
- Maximum forward current of 60 mA ensures optimal luminosity and lifespan.
- Operates at a forward voltage of 2.4 V offering high efficiency.
- Wide 45° viewing angle allows broad illumination coverage.
- Robust design with a maximum power dissipation rating of 75 mW.
- Typical luminous intensity of 320 mcd ensures high visibility.
- Clear round lens provides defined and bright output in electronic circuits.
Product Description
Lite-On LTL1CHKFKNN is a high-quality orange and yellow light emitting diode (LED) designed for industrial, laboratory, and electronic equipment applications. With a compact 3 mm (T-1) round lens format, this dual-color LED provides distinct status indication in a range of control panels and visual displays.
This LED operates efficiently at a typical forward voltage of 2.4 V and supports up to 60 mA forward current, allowing for bright, reliable light output. Capable of power dissipation up to 75 mW, it suits designs requiring durable indicators with strong performance characteristics. The through-hole mounting type ensures secure placement and easy integration in printed circuit boards (PCBs).
The LTL1CHKFKNN is built with a clear, round lens offering orange and yellow light at a dominant wavelength of 605 nm. Its 45° viewing angle supports wide, highly visible illumination, while a typical luminous intensity of 320 mcd guarantees clear visibility even in environments with substantial ambient lighting. Industry-compliant, this component meets RoHS standards for hazardous substances, and its construction ensures reliable performance through a variety of operating conditions.
With two pins and bulk packaging, designers can readily deploy it in batch assembly or automated insertion systems. The compact 3 mm housing (lens dimensions 5.2 x 3.8 mm) allows it to be used in dense layouts, low-profile modules, and regulated indicator clusters.
Common applications for this Lite-On LED include industrial control panels, test and measurement instruments, status indicators, signage, and various electronic instruments demanding robust, visible signalization. Its dual-color capability provides flexibility for multi-state signaling in laboratory and process control settings.
Explore more technical LED components in the Electronics Components category to find products suited for your indicator, signalization, or illumination projects. Browse the full range of Lite-On optoelectronic and LED solutions on EnvMart.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This LED operates at a forward voltage of 2.4 V, which contributes to its high efficiency.
The maximum forward current for the LTL1CHKFKNN is 60 mA, ensuring optimal luminosity and lifespan.
It features a wide viewing angle of 45°, allowing for broad illumination coverage.
The typical luminous intensity is 320 mcd, providing high visibility even in well-lit environments.
This model utilizes a through-hole mount construction, allowing for reliable PCB installation.
The lens dimensions are 5.2 x 3.8 mm, suitable for compact applications.
It has a maximum power dissipation rating of 75 mW, which supports its performance characteristics.
This LED emits orange and yellow light, with a dominant wavelength of 605 nm.
This model is provided in bulk packaging, making it suitable for batch assembly or automated insertion systems.
It has two pins, which are standard for through-hole LED installations.
Yes, it meets RoHS standards for hazardous substances, ensuring environmental compliance.
Common applications include industrial control panels, test instruments, and status indicators, where robust signalization is required.
