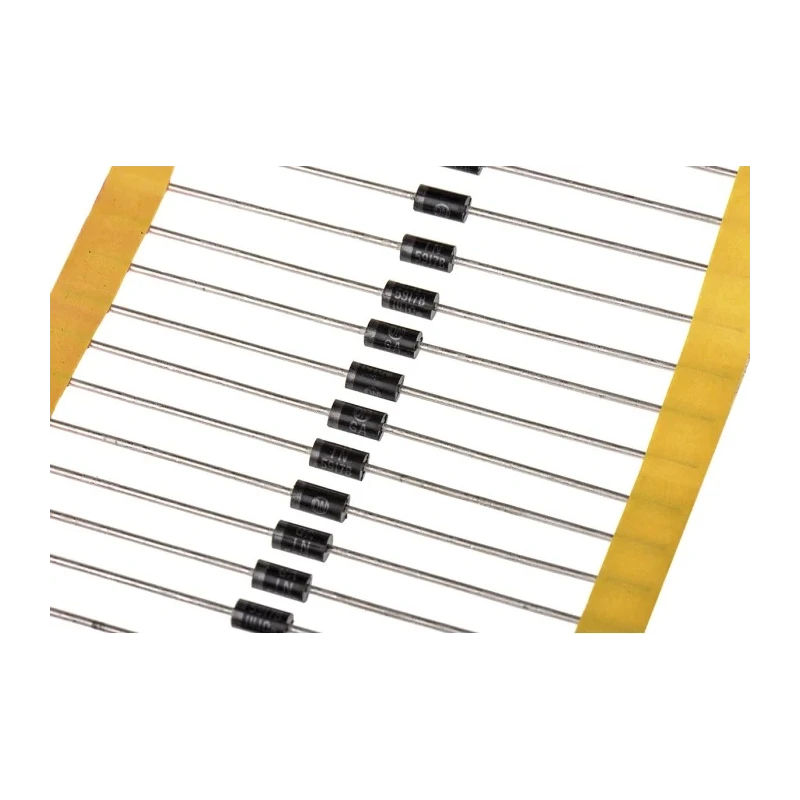

onsemi 4.7 V 3 W Zener Diode Single Through Hole 2-Pin Case 017AA 1N5917BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5917BRLG |
| Mount Type | Through Hole |
| Series | 1N5913B |
| Maximum Operating Temperature | 200°C |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 3W |
| Diode Configuration | Single |
| Test Current It | 79.8mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 4.7V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 500Ω |
Key Features
- This Zener diode has a nominal Zener voltage of 4.7 volts for stable voltage reference.
- It supports a maximum power dissipation of 3 watts, suitable for moderate power circuits.
- The single-element diode features a through-hole mount style with two pins for easy PCB integration.
- It offers a maximum Zener impedance of 500 Ω ensuring effective voltage regulation at test current.
- The device operates under a temperature range from -65°C to 200°C for reliable performance in harsh environments.
- With a maximum reverse leakage current of only 1 μA, it ensures minimal leakage at reverse bias.
- The compact case 017AA package measures 5.2 mm in length and 2.7 mm in height.
- This product conforms to the 1N5913B series of ON Semiconductor Zener diodes optimized for voltage regulation.
Product Description
onsemi 1N5917BRLG is a single-element Zener diode designed as a voltage regulator with a nominal voltage of 4.7 V. Packaged in a compact Case 017AA with through-hole mount and 2 pins, this Zener diode dissipates up to 3 W of power reliably. It is tailored for use in electronic circuits requiring stable voltage references and voltage regulation.
This Zener diode has a maximum Zener impedance of 500 Ω and a test current of 79.8 mA which ensures consistent operation within the rated voltage threshold. Its maximum reverse leakage current is 1 μA, minimizing unwanted current flow under reverse bias.
The device is engineered to function across a wide temperature range from -65°C to 200°C, making it suitable for harsh industrial, automotive, and electronic applications where reliability under thermal stress is essential.
The physical dimensions of this Zener diode are 5.2 mm length and 2.7 mm height, which assists in designing compact and space-efficient boards. It belongs to the well-known 1N5913B series of ON Semiconductor Zener diodes specialized for voltage regulation.
This Zener diode features a single diode configuration optimized for voltage regulation. It mounts through-hole with 2 pins for straightforward PCB assembly. Supports up to 3 W maximum power dissipation for moderate power electrical circuits.
Maintains a nominal Zener voltage of 4.7 V ensuring voltage stability. Operates over a broad temperature range from -65°C to 200°C for durability. Compact Case 017AA packaging for efficient board space use. Max reverse leakage current is very low at 1 μA, minimizing current loss.
Designed for industrial, automotive, and electronic equipment voltage regulation. Explore more ON Semiconductor Zener Diodes at EnvMart for your voltage regulation and electronic component needs.
