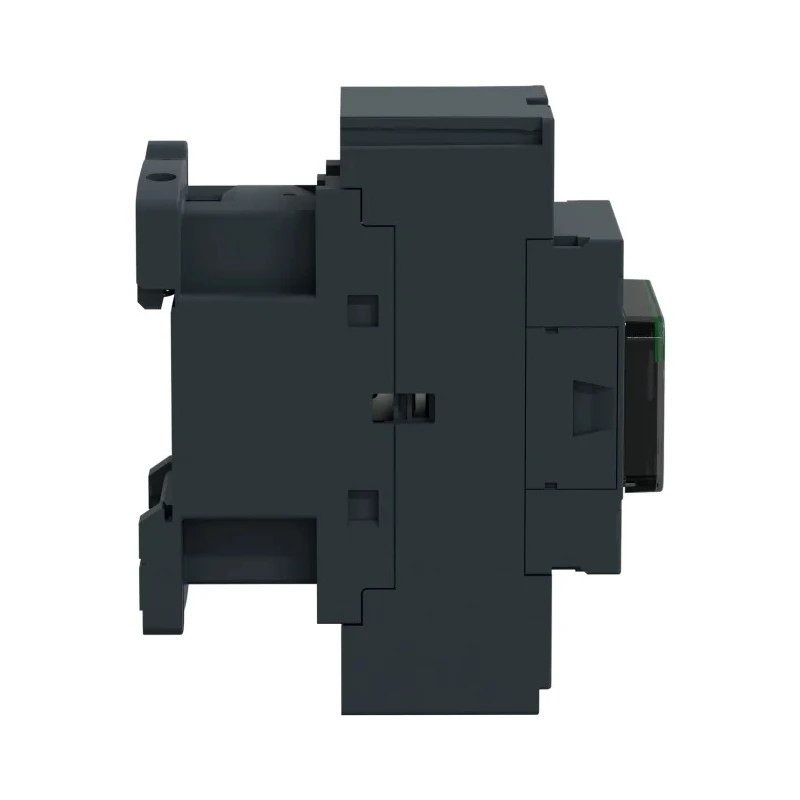

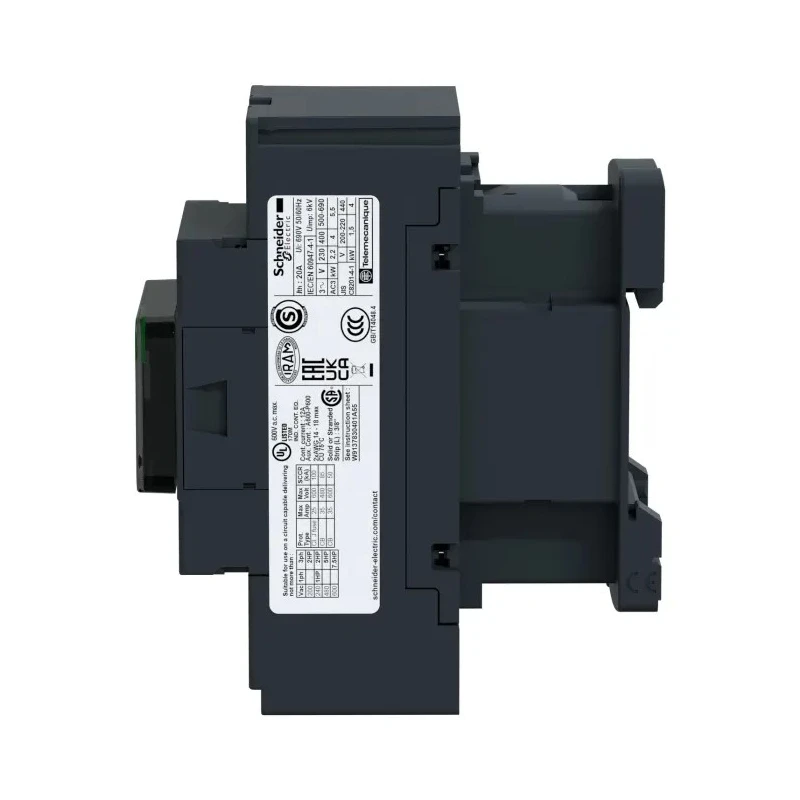

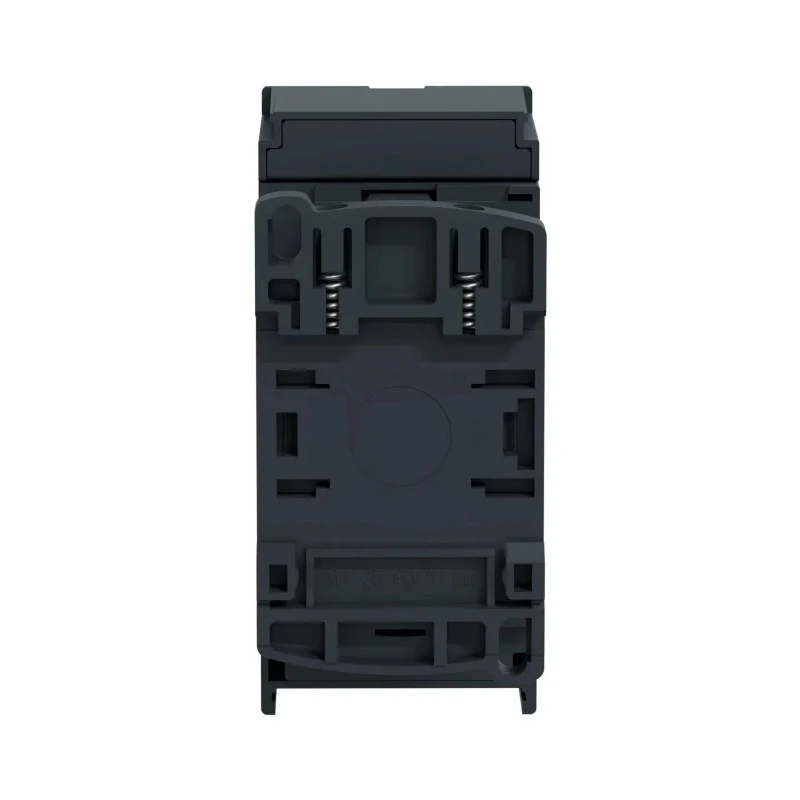

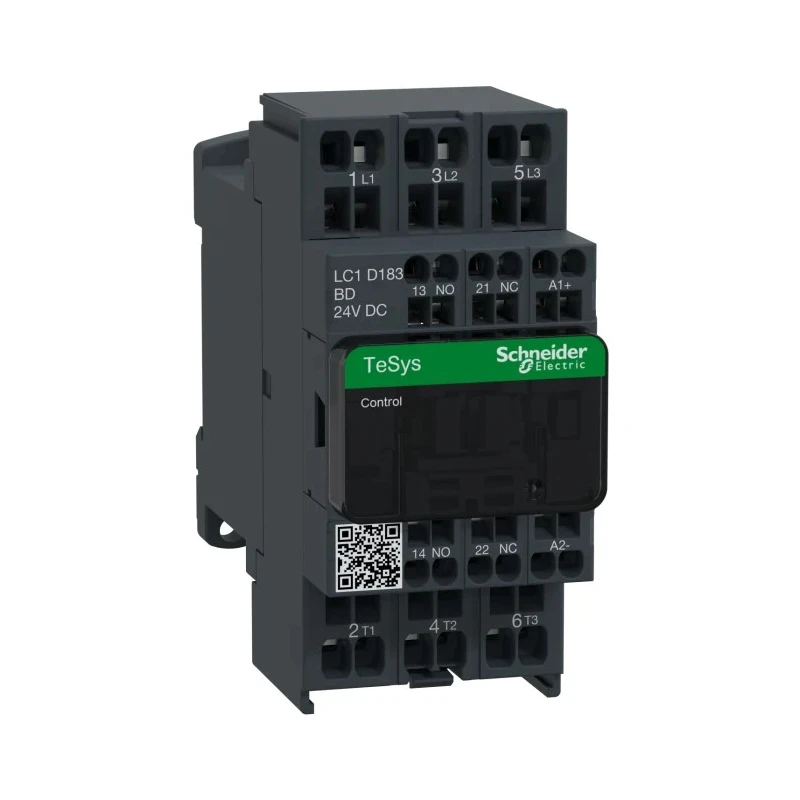

Schneider Electric TeSyS D 3-Pole Contactor LC1D183BD 24V DC Coil 18A 7.5 kW 690V AC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 99mm |
| Model | LC1D183BD |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | Plate, Rail Mount |
| Series | TeSys D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Cage Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Designed for industrial automation requiring compact, reliable switching.
- Supports up to 690V AC contact voltage for high-voltage applications.
- Equipped with 3 NO main contacts and 2 auxiliary contacts (1 NO/1 NC).
- Features cage clamp terminals for secure and quick wiring.
- Operates efficiently within a wide temperature range from −5°C to 60°C.
- Suitable for plate or rail mounting in control panels.
- Integral coil suppression reduces interference and extends lifespan.
- Mechanical linkage simplifies auxiliary contact signaling integration.
Product Description
Schneider Electric LC1D183BD 3-Pole Contactor with 24V DC Coil is an industrial-grade switching device designed to control motors and resistive loads in automation systems. With an 18A contact current and a power rating of 7.5 kW, this contactor is engineered to handle medium-power motor applications at voltages up to 690V AC.
The device features a compact footprint suitable for plate and rail mounting within electrical panels. It includes 3 normally open main contacts and 2 auxiliary contacts configured as 1 normally open and 1 normally closed, facilitating versatile control and signaling functions.
Equipped with cage clamp terminals, the contactor allows rapid and tool-free connection of flexible conductors, enhancing installation efficiency. Integral coil suppression technology reduces electromagnetic interference while prolonging coil lifespan, making it ideal for demanding industrial environments.
Its operational temperature range spans from −5°C to 60°C, with derating above 60°C, and it supports high operational rates up to 3600 cycles per hour, ensuring durability and reliability in continuous use. The contactor is suitable for use in three-phase motor starters, heating and resistive element control, and retrofit applications where compact control panels are essential.
Manufactured to meet international standards including CCC, CSA, EAC, IEC, RoHS, and UL, this Schneider Electric TeSyS D contactor delivers dependable performance in demanding industrial and commercial sectors.
Designed for reliable motor control and resistive load switching. High-voltage operation up to 690V AC ensures broad application suitability. Multiple auxiliary contacts enable flexible control and signaling. Compact design fits within space-constrained automation panels.
Integral suppression on coil minimizes interference and extends life. Spring cage clamp terminals enable fast, secure wiring. Wide ambient temperature range supports diverse environments. High operational rate capability for frequent switching needs.
Complies with multiple international safety and quality standards. Manufactured in Indonesia with quality and durability focus.
Suitable across industrial automation, manufacturing, HVAC, and process control applications, the LC1D183BD contactor by Schneider Electric offers practical and efficient motor and load control. Explore other related control components and enhance your installations with trusted Schneider Electric solutions on EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 7.5 kW, suitable for medium-power motor applications.
It supports a maximum contact voltage of 690V AC, making it suitable for high-voltage applications.
This contactor is a 3-pole device, designed for effective motor control and resistive load switching.
The coil voltage for the LC1D183BD is 24V DC, which is standard for many industrial applications.
The dimensions are 99mm in length, 99mm in depth, and 45mm in width, allowing for compact installation.
It features cage clamp terminals, which enable secure and quick wiring without the need for tools.
The operational temperature range spans from -5°C to 60°C, accommodating various environmental conditions.
This contactor includes 2 auxiliary contacts, configured as 1 normally open and 1 normally closed.
The normal state configuration for the main contacts is 3 normally open (NO).
It complies with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
This model can be mounted on plates or rails, making it versatile for installation in control panels.
It is suitable for motor control and resistive load applications, particularly in industrial automation settings.
