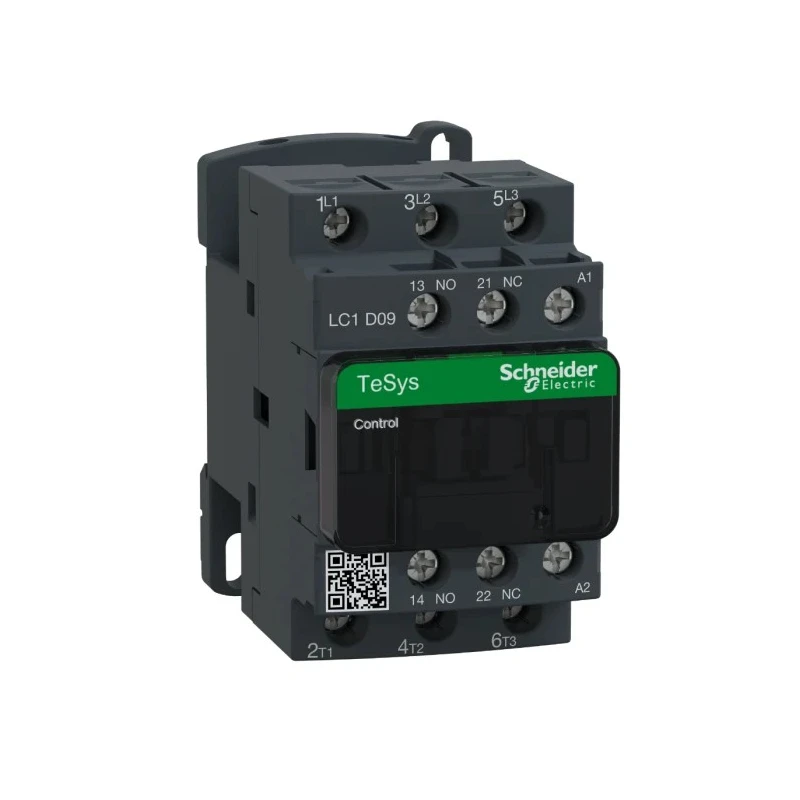

Schneider Electric TeSys D Contactor 3-Pole 9 A 4 kW 380V 3 NO 690V AC 400V AC Coil LC1D09Q7

Schneider Electric LC1D09Q7 is a high-quality TeSys D series contactor designed for industrial and commercial motor control applications requiring reliable switching of resistive loads up to 9 A at 690V AC. This 3-pole contactor features a 400V AC coil and supports power ratings up to 4 kW at 380V, suitable for a wide range of motor starting and control scenarios.

The compact device mounts easily on DIN rails or can be fixed by screws, providing flexibility in electrical panel designs. It uses screw clamp terminals for secure electrical connections of both load and auxiliary circuits. The internal auxiliary contacts include one normally open and one normally closed contact, which is mirror certified, enhancing operational safety and monitoring capabilities.

Constructed for demanding industrial environments, this contactor withstands temperatures from -5°C to 60°C and supports mechanical durability of up to 15 million cycles, ensuring longevity under frequent switching. Its compact dimensions of 77 mm length, 45 mm width, and 86 mm depth optimize panel space.

Multistandard certified including IEC, UL, CSA, CCC, EAC, and compliant with RoHS and REACh environmental directives, the LC1D09Q7 contactor embodies energy efficiency and sustainability. It is designed for disassembly to reduce environmental impact at end-of-life. Applications include lighting control, HVAC systems, pharmaceutical manufacturing, and water management plants.

The device enables high switching speeds up to 3600 cycles per hour and provides high short-circuit current ratings when paired with appropriate circuit breakers or fuses, enhancing electrical system protection. This contactor supports control voltages of 380V AC and is suitable for use in complex industrial control circuits requiring reliable and efficient operation.

Designed for motor control and resistive load applications. Compact DIN Rail mounting with screw clamp terminals for ease of installation. Includes 3 normally open (NO) contacts for reliable switching performance. Equipped with 1 normally open and 1 normally closed auxiliary contacts with mirror certification.

Operates within a temperature range of -5°C to 60°C ensuring durability in diverse environments. Mechanical durability rated up to 15 million cycles for extended service life. Certified by multiple standards including IEC, UL, CSA, CCC, EAC, and RoHS compliant.

Compact dimensions measuring 77 mm length x 45 mm width x 86 mm depth. Allows high operational rates up to 3600 cycles per hour. Manufactured in France with environmental design considerations for disassembly and sustainability.

Choose Schneider Electric Contactors for dependable performance in industrial, manufacturing, HVAC, and water treatment control systems. Explore the wide range of Schneider Electric products on EnvMart for efficient electrical and automation solutions.
