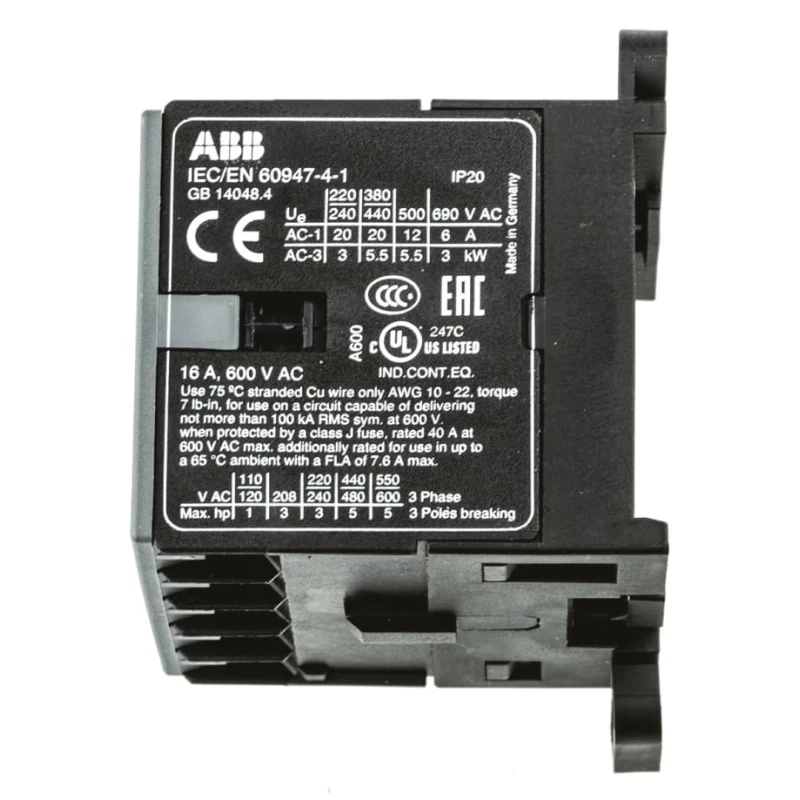

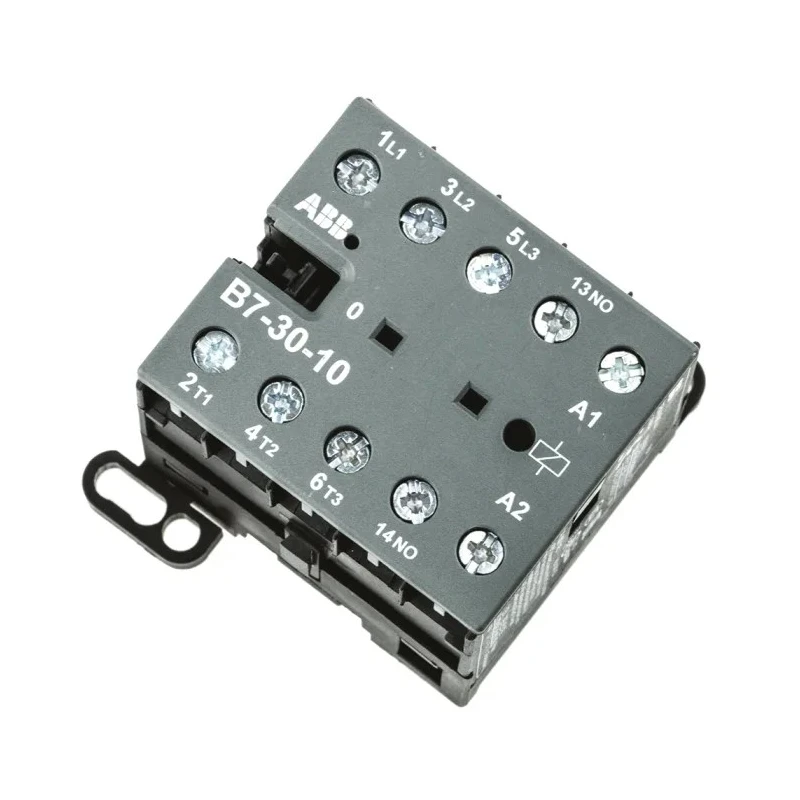

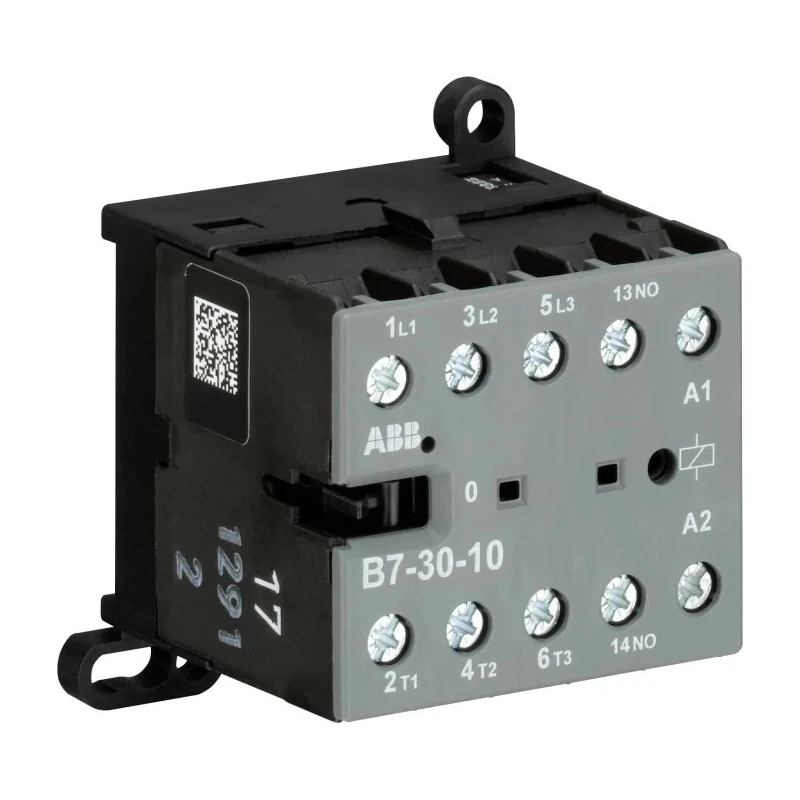

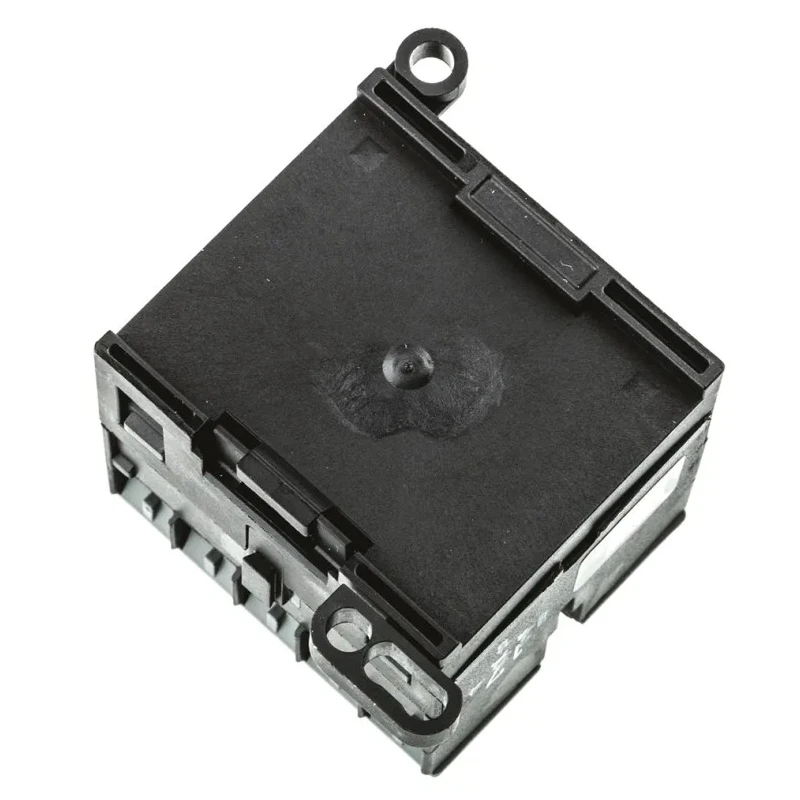

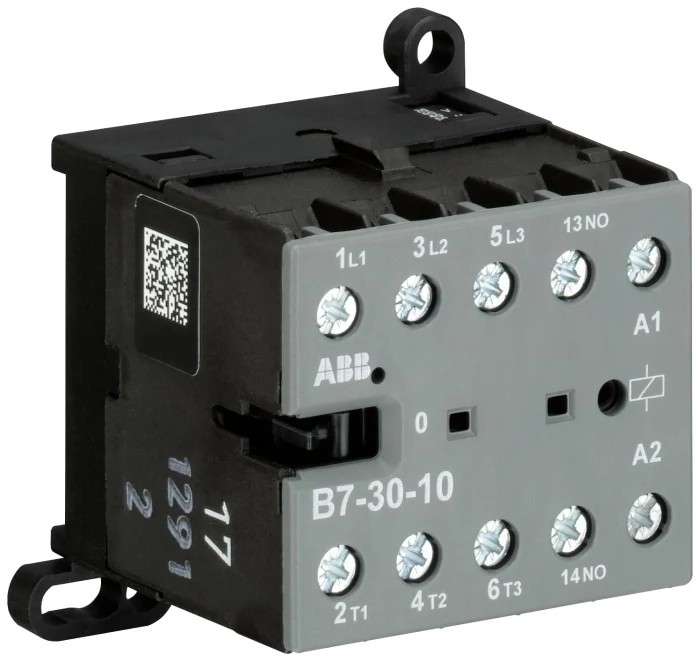

ABB B7 Series Mini Contactor, 24V AC Coil, 3-Pole, 20A Current, 690V AC Contact Voltage, 5.5 kW GJL1311001R0101 B7-30-10-01

Free Delivery in India | Lowest Global Shipping Charges

ABB B7 Series Mini Contactor, 24V AC Coil, 3-Pole, 20A Current, 690V AC Contact Voltage, 5.5 kW GJL1311001R0101 B7-30-10-01



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Function	Motor Control
Length	57.5mm
Model	GJL1311001R0101 B7-30-10-01
Depth	46.5mm
Width	52.5mm
Mount Type	DIN Rail
Series	B7
Power Rating	5.5kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	RoHS, CCC, CE, CSA, EAC, IEC, UKCA, UL
Contact Voltage	690V ac
Coil Voltage	24V ac
Normal State Configuration	3 NO
Contact Current	20A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NO
Operational Current Ie	16A
Control Circuit Voltage Uc	24V ac
Contactor Application	Motor Control
Pole and Throw Configuration	3
ABB B Contactor, 24V ac Coil, 3-Pole, 9 A, 4 kW 24V ac, 3 NO, 690V acBrand	ABB

Key Features

Rated for 20A contact current supporting up to 5.5 kW motor power.
Provides 3 normally open contacts and 1 normally open auxiliary contact.
Screw terminal connections ensure durable and easy wiring.
Supports control circuit voltage of 24V AC and contact voltage of 690V AC.
Compact dimensions of 57.5mm length, 52.5mm width, and 46.5mm depth.
Reliable DIN rail mounting for simple installation.
Operates reliably from -25°C up to 55°C ambient temperature.
Silent coil operation minimizes noise during switching.

Product Description

ABB GJL1311001R0101 B7-30-10-01 is a mini contactor designed for motor control applications requiring a 24V AC coil with a 3-pole configuration supporting 20A of contact current and up to 5.5 kW motor power rating. It is equipped with 3 normally open contacts and 1 normally open auxiliary contact configured for expanded control capabilities.

This contactor features screw terminal connections that facilitate secure and straightforward wiring. The compact size of 57.5 mm length, 52.5 mm width, and 46.5 mm depth makes it ideal for installations where space is limited. The device operates reliably across a broad ambient temperature range from -25°C to 55°C, making it suitable for industrial and commercial environments.

Mounting is simplified with a DIN rail design, helping reduce installation time and effort. The silent coil operation minimizes noise, enhancing user comfort in noise-sensitive settings. Compliance with multiple international standards, including RoHS, CE, UL, CSA, CCC, IEC, EAC, and UKCA, ensures safety, quality, and regulatory adherence.

Applications include controlling single-phase or three-phase motor loads and other automation systems requiring robust contactor performance. Its high contact voltage rating up to 690V AC expands its versatility in controlling various equipment and machines.

Rated contact current of 20A supports motor loads up to 5.5 kW. Compact design suitable for space-constrained installations. DIN rail mount for easy and standardized fitting. Wide operating temperature range from -25°C to 55°C.

Silent coil operation reduces operational noise in environments. Multiple international approvals and standards compliance. Screw terminal wiring for dependable electrical connection. Expandable control with auxiliary contact configuration.

Manufactured in Germany ensuring premium quality.
