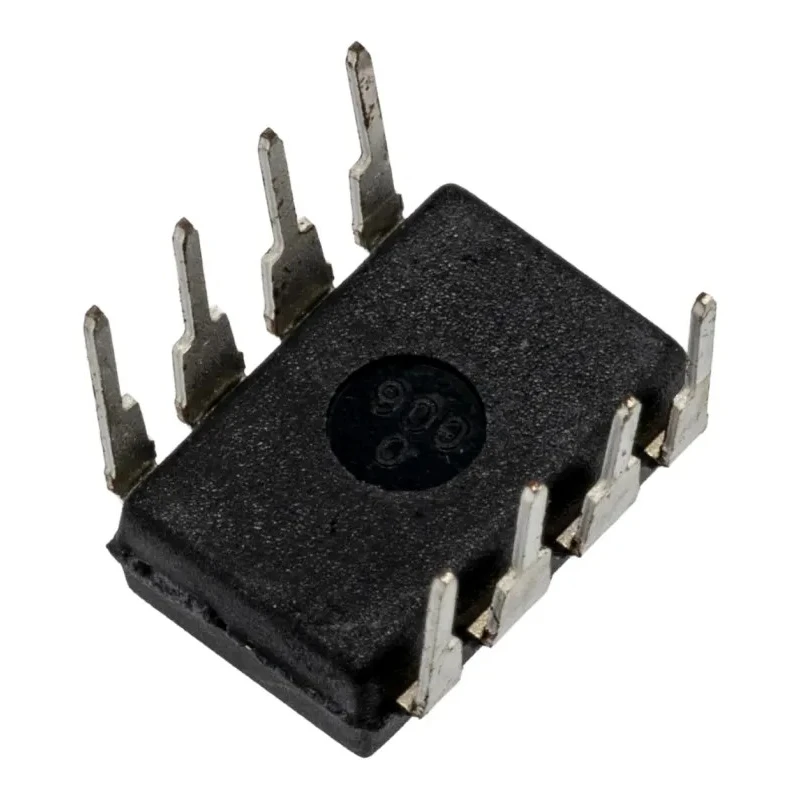

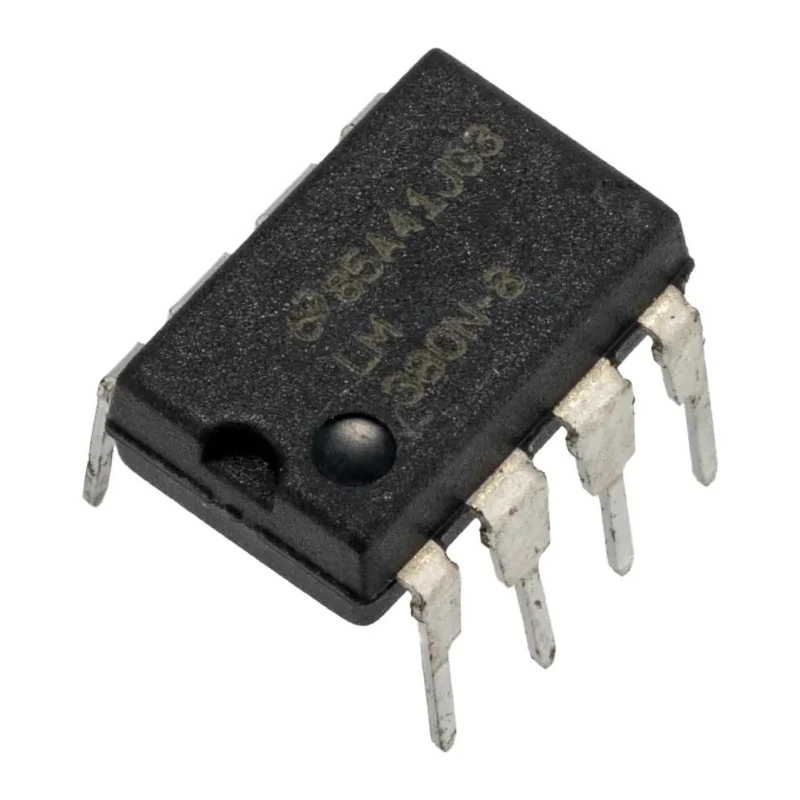

Texas Instruments Audio Power Amplifier, 8-Pin MDIP, 2.5W, Class A-B, Through Hole Mount LM380N-8/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.26mm |
| Length | 10.16mm |
| Model | LM380N-8/NOPB |
| Width | 6.6mm |
| Output Power | 2.5W |
| Mount Type | Through Hole |
| Series | LM380 |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 12V |
| Amplifier Type | Audio Power Amplifier |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 100MHz |
Key Features
- Class A-B amplifier for efficient audio amplification.
- Through hole mount with 8 pins in MDIP package.
- Operating voltage range from 12V minimum to 22V maximum.
- Single channel amplifier delivering clear audio sound.
- Built-in thermal overload, short circuit, and safe operating area protections.
- Robust design suitable for commercial and industrial audio systems.
- Gain Bandwidth Product of 100MHz allowing quality audio processing.
- Operating temperature range 0°C to 70°C for reliable performance.
Product Description
Texas Instruments LM380N-8/NOPB is a high-quality Audio Power Amplifier IC featuring an 8-Pin MDIP package designed for speaker applications requiring 2.5 watts output power. This single channel Class A-B amplifier operates efficiently over a supply voltage range of 12 to 22 volts, making it suitable for a variety of industrial and commercial audio amplification tasks.
The amplifier includes advanced built-in safety features such as thermal overload protection, short circuit protection, and safe operating area protection which enhance reliability and longevity.
Its Gain Bandwidth Product of 100MHz ensures a high level of audio quality with minimal distortion, suitable for both consumer and professional audio equipment.
Designed as a through hole mount component, it offers ease of assembly on printed circuit boards and mechanical stability. The compact dimensions (10.16mm length, 6.6mm width, 8.26mm height) allow incorporation into space-constrained designs.
Operating reliably within a temperature range of 0°C to 70°C, this device is optimized for ambient conditions typical in electronic systems without automotive compliance. Class A-B amplifier for efficient audio amplification.
Through hole mount with 8 pins in MDIP package. Operating voltage range from 12V minimum to 22V maximum. Single channel amplifier delivering clear audio sound. Built-in thermal overload, short circuit, and safe operating area protections.
Robust design suitable for commercial and industrial audio systems. Gain Bandwidth Product of 100MHz allowing quality audio processing. Operating temperature range 0°C to 70°C for reliable performance. Compact dimensions: length 10.16mm, width 6.6mm, height 8.26mm.
Non-automotive standard compliant component.
This amplifier is ideal for use in consumer electronics, industrial audio equipment, HVAC sound systems, and laboratory signal amplification. Its robust integration and protection features make it a reliable choice for enhancing audio performance in demanding environments.
Explore a wide range of semiconductor amplifiers and Audio Amplifier ICs for your next project or industrial application with EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an output power of 2.5 watts.
The amplifier operates within a voltage range of 12V to 22V.
It is designed for through hole mounting.
The Gain Bandwidth Product of this model is 100MHz, allowing for quality audio processing.
Its dimensions are 10.16mm in length, 6.6mm in width, and 8.26mm in height.
The maximum operating temperature is 70°C.
This amplifier features a single channel design.
It includes built-in thermal overload protection, short circuit protection, and safe operating area protection.
The minimum operating temperature is 0°C.
It is suitable for consumer electronics, industrial audio equipment, HVAC sound systems, and laboratory signal amplification.
The amplifier comes in an 8-Pin MDIP package.
This model is classified as a Class A-B amplifier.
