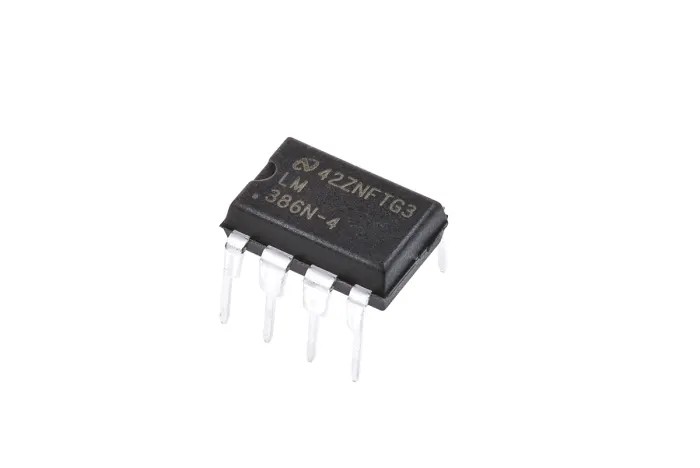

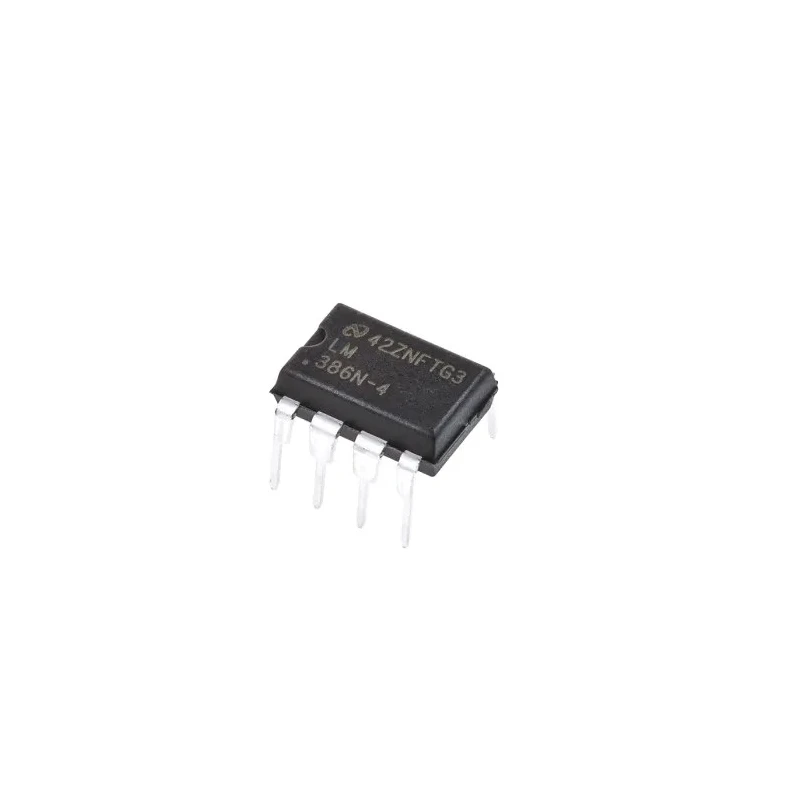

Texas Instruments Audio Power Amplifier, 8-Pin, 1W MDIP LM386N-4/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.26mm |
| Length | 10.16mm |
| Model | LM386N-4/NOPB |
| Width | 6.6mm |
| Output Power | 1W |
| Mount Type | Through Hole |
| Series | LM386 |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 9V |
| Amplifier Type | Audio Power Amplifier |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 300kHz |
Key Features
- Operates within a supply voltage range of 9V to 18V for versatile application.
- Class A-B amplifier ensuring high fidelity sound output.
- Single channel configuration ideal for speaker amplification.
- Compact dimensions of 10.16mm length, 6.6mm width, and 8.26mm height.
- Gain bandwidth product of 300kHz supports clear audio performance.
- Designed to operate from 0°C to 70°C ambient temperature.
- Features 8 pins in an MDIP package for secure through-hole mounting.
- No automotive standard compliance, suitable for general industrial and consumer electronics.
Product Description
Texas Instruments LM386N-4/NOPB audio power amplifier is a versatile integrated circuit designed for audio signal amplification in electronic applications. Featuring an 8-pin MDIP package and a 1 watt output power, this amplifier supports through-hole mounting and operates within a voltage range from 9V to 18V.
This Class A-B amplifier delivers high-fidelity sound with a gain bandwidth product of 300kHz making it suitable for driving speakers in various industrial, consumer electronics, and DIY audio projects. Its single-channel design simplifies use in audio amplification circuits.
With operating temperature range from 0°C to 70°C, the LM386N-4 is robust for standard environmental conditions. The compact package size of 10.16mm in length, 6.6mm width, and 8.26mm height facilitates easy PCB integration.
The device includes advanced protective features such as thermal overload and short-circuit protection ensuring durability in demanding conditions. It is widely used in electronic laboratories, educational kits, and audio equipment manufacturing.
Operates at supply voltages between 9V and 18V. 1 watt power output for single speaker systems. Class A-B amplification offers balanced performance and efficiency. Single channel with 8-pin MDIP through-hole package. Compact footprint suitable for space-constrained PCB layouts.
Robust design ensuring reliability under standard operating temperatures. Applications include speaker amplification, audio electronics prototyping, and embedded audio circuits.
This audio amplifier IC is part of Texas Instruments' LM386 series, known for ease of use and reliability in audio applications. Engineers and hobbyists rely on this IC for clear audio amplification with minimal external components.
Explore more Audio Amplifier ICs and other semiconductor electronic components at EnvMart to power your projects with quality and performance assured by leading brands like Texas Instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this audio amplifier is 1 watt, suitable for driving single speaker systems.
It operates within a supply voltage range of 9V to 18V, allowing for versatile application in various electronic circuits.
The compact dimensions are 10.16mm in length, 6.6mm in width, and 8.26mm in height, facilitating easy integration into PCB layouts.
This model features a through-hole mounting type, which is suitable for secure installation on circuit boards.
The gain bandwidth product is 300kHz, supporting clear audio performance in amplification applications.
It is designed to operate within an ambient temperature range of 0°C to 70°C, making it suitable for standard environmental conditions.
This model has a single channel configuration, ideal for applications requiring speaker amplification.
The amplifier comes in an 8-pin MDIP package, which allows for secure through-hole mounting.
It is classified as a Class A-B amplifier, which ensures a balance of performance and efficiency in audio applications.
This model is suitable for speaker amplification, audio electronics prototyping, and embedded audio circuits.
It includes advanced protective features such as thermal overload and short-circuit protection, enhancing its durability in demanding conditions.
The country of origin for this audio amplifier is India.
