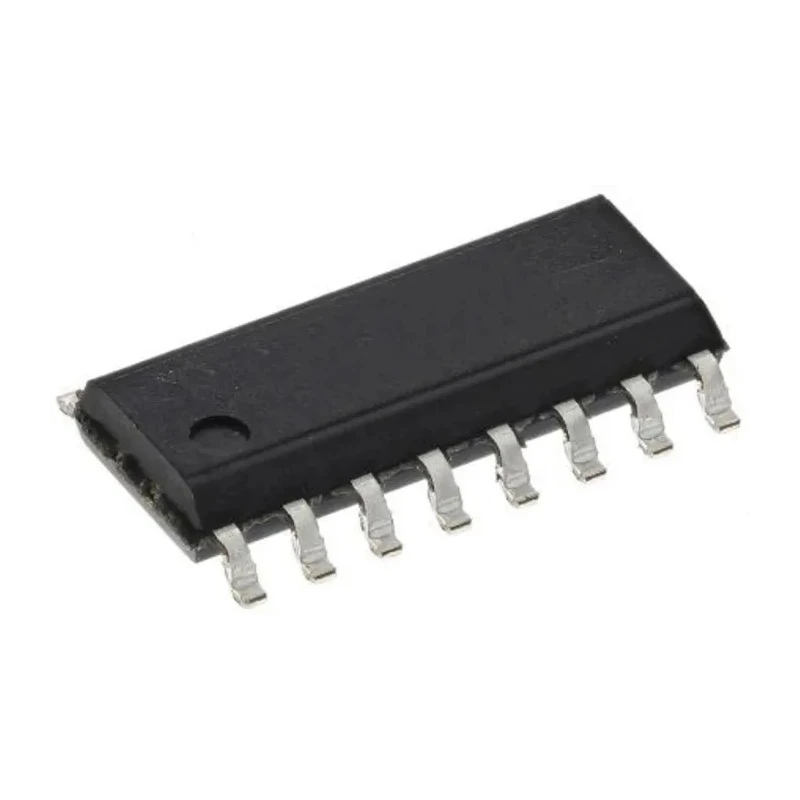

Maxim Integrated Audio Amplifier, 135W Output Power, Class A-B, Surface Mount, 16-Pin QSOP MAX13331GEE/V+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Model | MAX13331GEE/V+ |
| Output Power | 135W |
| Mount Type | Surface |
| Series | MAX13331 |
| Maximum Operating Temperature | 105°C |
| Package Type | QSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Amplifier Type | Audio |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 22kHz |
Key Features
- Operates at a supply voltage range of 4V to 5.5V ensuring versatile power compatibility.
- Single channel audio amplifier with Class A-B topology for efficient amplification.
- AEC-Q100 automotive standard compliance suitable for automotive entertainment applications.
- Includes integrated click-and-pop suppression for improved audio quality.
- Short-to-ground and battery output protection safeguards against electrical faults.
- Adjustable gain feature for MAX13331 enhances signal control flexibility.
- Ground-referenced outputs reduce requirement for bulky DC-blocking capacitors.
- Temperature range from -40°C to 105°C enables operation in harsh environments.
Product Description
Maxim Integrated MAX13331GEE/V+ is a high-performance audio amplifier IC designed for delivering 135W output power from a single channel with Class A-B operation. Packaged in a compact 16-pin QSOP surface mount, this component supports applications requiring surface mounting and efficient power amplification.
Operating over a voltage range of 4V to 5.5V, it integrates features such as an internal 2MHz charge pump that prevents AM radio interference, ensuring sound integrity. Its ground-referenced outputs eliminate the need for bulky DC-blocking capacitors, allowing for streamlined device designs.
The device provides robust short-to-ground and battery output protection with VBAT tolerance up to +45V and load dump protection, enhancing its reliability in automotive and industrial environments. The integrated click-and-pop suppression enhances audio quality by reducing transient noises during power-up and shutdown.
This amplifier supports adjustable gain for the MAX13331 variant, offering design flexibility, while the MAX13330 variant provides fixed -1.5V/V gain. It has a gain bandwidth product of 22kHz, suitable for high-fidelity audio applications.
Designed to operate across a broad temperature range of -40°C to 105°C and meeting AEC-Q100 automotive standards, this audio amplifier is ideal for automotive entertainment systems, including rear seat entertainment, as well as other industrial and consumer electronics requiring dependable audio amplification.
Operates from 4V to 5.5V single supply voltage for flexible power options. 16-pin QSOP package supports compact, surface-mount PCB assemblies. Class A-B amplifier with a single audio channel for efficient sound output. Integrated protections including short-circuits and battery voltage tolerance enhance operational safety.
High power output of 135W delivers strong audio performance. Compliance with automotive AEC-Q100 standard ensures suitability for vehicle use. Click-and-pop suppression technology minimizes audio noise disruptions. Wide operating temperature range (-40°C to 105°C) supports diverse environments.
Ground-referenced outputs reduce external component requirements. Ideal for automotive entertainment and various industrial audio applications.
This Maxim Integrated audio amplifier represents an advanced solution for designers seeking reliable, high-power audio amplification in a compact, automotive-qualified package. Browse EnvMart’s extensive selection of Amplifiers and Semiconductor components for complementary electronics.
Explore more products in our Audio Amplifier ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MAX13331GEE/V+ audio amplifier delivers an output power of 135W from a single channel.
It operates at a supply voltage range of 4V to 5.5V, providing versatile power compatibility.
This model is a Class A-B audio amplifier, designed for efficient amplification.
The amplifier can operate within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
Yes, it includes short-to-ground and battery output protection, enhancing its reliability in various applications.
The gain bandwidth product for the MAX13331GEE/V+ is 22kHz, which is suitable for high-fidelity audio applications.
It is packaged in a compact 16-pin QSOP surface mount configuration, suitable for space-constrained designs.
This amplifier complies with the AEC-Q100 automotive standard, making it suitable for automotive applications.
It features integrated click-and-pop suppression technology, which minimizes transient noises during power-up and shutdown.
This model is a single channel audio amplifier, designed for efficient sound output.
The ground-referenced outputs reduce the requirement for bulky DC-blocking capacitors, streamlining device designs.
It is ideal for automotive entertainment systems and various industrial audio applications requiring reliable audio amplification.
