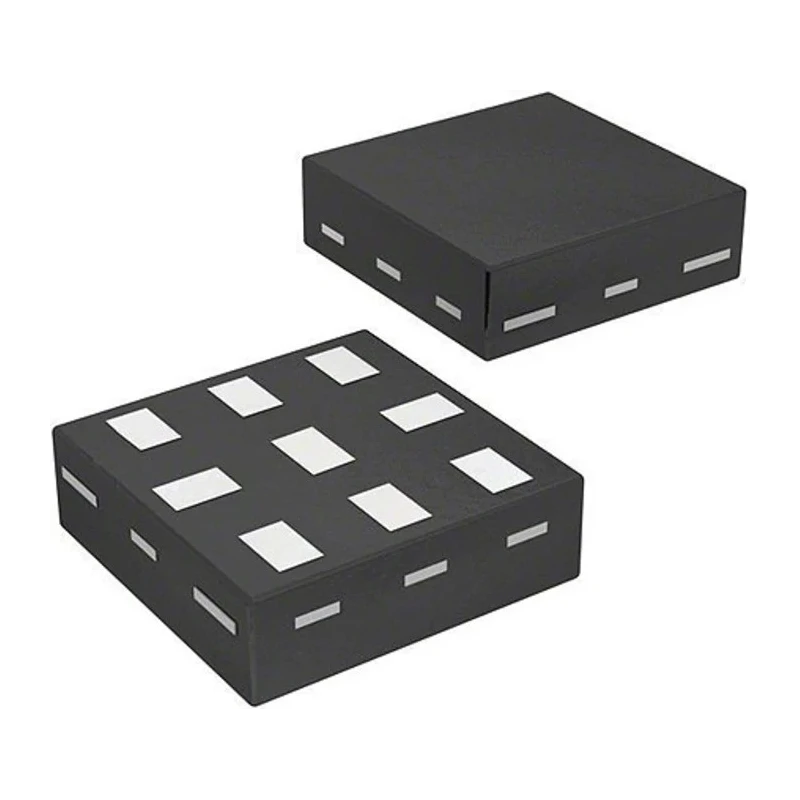

DiodesZetex Audio Amplifier IC, Class D, Surface Mount, 9-Pin UFLGA, 3W Output PAM8013AKR
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.55mm |
| Length | 1.45mm |
| Model | PAM8013AKR |
| Width | 1.45mm |
| Output Power | 3W |
| Mount Type | Surface |
| Series | PAM8013 |
| Maximum Operating Temperature | 85°C |
| Package Type | UFLGA |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Pin Count | 9 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.8V |
| Amplifier Type | Audio |
| Amplifier Class | Class D |
Key Features
- Provides efficient Class D amplification to minimize power loss.
- Operates at supply voltages between 2.8V and 5.5V.
- Suitable for single channel audio output applications.
- Compact footprint with dimensions 1.45mm x 1.45mm x 0.55mm.
- Designed for operating temperature range of -25°C to 85°C.
- Ideal for integration in speaker amplifier designs using surface mount technology.
- Contains 9 pins on a UFLGA package for robust connectivity.
- Automotive standard compliance not applicable.
Product Description
DiodesZetex PAM8013AKR is a highly integrated Audio Amplifier IC designed for efficient audio amplification applications. It features a single channel Class D amplifier architecture capable of delivering 3 watts output power, optimized for surface mount assembly using a compact 9-pin UFLGA package with dimensions of 1.45mm length, 1.45mm width, and 0.55mm height.
This IC supports a wide operating supply voltage range from 2.8 volts to 5.5 volts, allowing versatility in power supply configurations. Its operational temperature range extends from -25°C to a maximum of 85°C, making it suitable for various environmental conditions.
The PAM8013AKR is designed for applications such as speaker amplification in consumer electronics and other audio devices requiring high efficiency and minimal heat dissipation. Its Class D amplifier topology provides high efficiency which helps to reduce power waste and improve battery life where applicable.
The nine-pin UFLGA package enables easy surface mount soldering, supporting compact PCB designs for industrial, consumer electronics, and automotive-grade audio applications, although it does not comply with automotive standards. Its small physical size makes it ideal for integration in tight circuit layouts.
Manufactured in China, this component ensures reliability and consistent quality for audio amplifier requirements. The device does not possess specific certifications or approvals beyond the general semiconductor standards.
Provides efficient Class D amplification to minimize power loss. Operates at supply voltages between 2.8V and 5.5V. Suitable for single channel audio output applications. Compact footprint with dimensions 1.45mm x 1.45mm x 0.55mm.
Designed for operating temperature range of -25°C to 85°C. Ideal for integration in speaker amplifier designs using surface mount technology. Contains 9 pins on a UFLGA package for robust connectivity. Automotive standard compliance not applicable.
Manufactured in China ensuring consistent quality. No additional standards or approvals specified. Explore the extensive range of Audio Amplifier ICs and related components at EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAM8013AKR delivers an output power of 3 watts.
It operates at supply voltages between 2.8V and 5.5V.
This model comes in a UFLGA package type with 9 pins.
The dimensions are 1.45mm in length, 1.45mm in width, and 0.55mm in height.
It is designed to operate within a temperature range of -25°C to 85°C.
It is suitable for single channel audio output applications, particularly in speaker amplification for consumer electronics.
This model is a Class D audio amplifier, known for its efficiency in minimizing power loss.
It is designed for surface mount assembly.
It belongs to the PAM8013 series of audio amplifiers.
No, automotive standard compliance is not applicable for this model.
It is manufactured in China.
This amplifier IC features a single channel configuration.
