| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAT54QC-QZ |
| Mount Type | Surface |
| Series | BAT54QC-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |

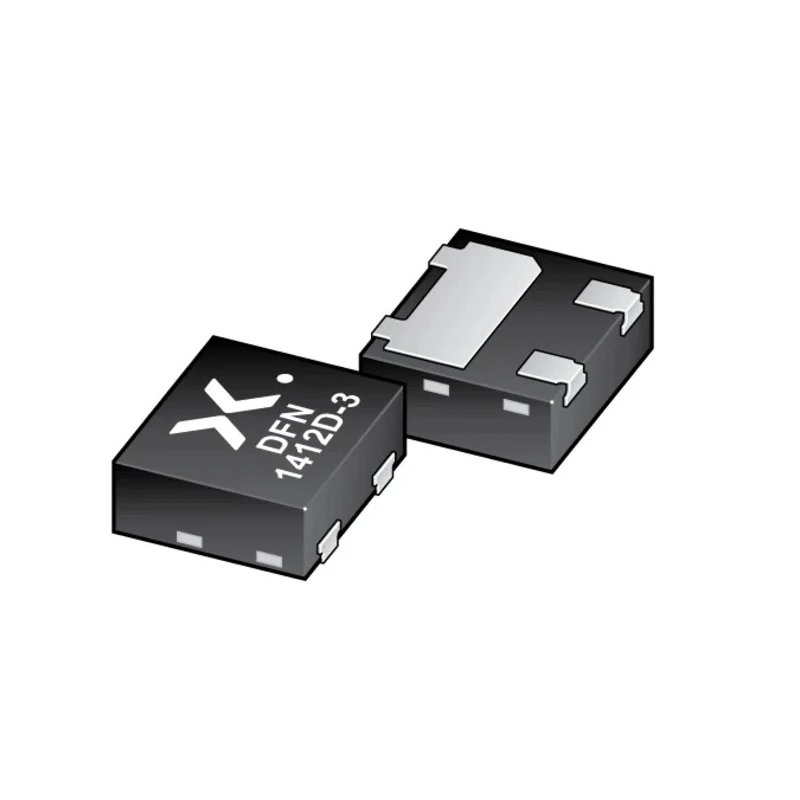

Nexperia BAT54QC-QZ is a Schottky barrier diode designed for surface mounting in DFN1412D-3 package with a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V.
The diode offers low forward voltage drop of 380 mV which improves efficiency and reduces power losses in power conversion circuits.
It is constructed in an ultra-small leadless plastic package measuring only 0.5 mm in height. The package includes side-wettable flanks suitable for automated optical inspection, enhancing manufacturing quality assurance.
The operating temperature range of -55°C to 150°C ensures this diode is robust for automotive and industrial applications. Qualified to meet automotive standard AEC-Q101 and RoHS directives, this diode is suitable for environments requiring reliability and regulatory compliance.
Low forward voltage of maximum 380 mV for efficient power management. Surface mount DFN1412D-3 package with side-wettable flanks. Maximum continuous forward current: 200 mA; surge current: 200 mA. Wide operating temperature range from -55°C to 150°C.
Automotive qualified AEC-Q101 and RoHS compliant. Leadless ultra small package with low profile of 0.5 mm. Suitable for Automatic Optical Inspection (AOI) during assembly. Applications include power rectification, voltage clamping, and protection in automotive, industrial, and electronics manufacturing sectors.
