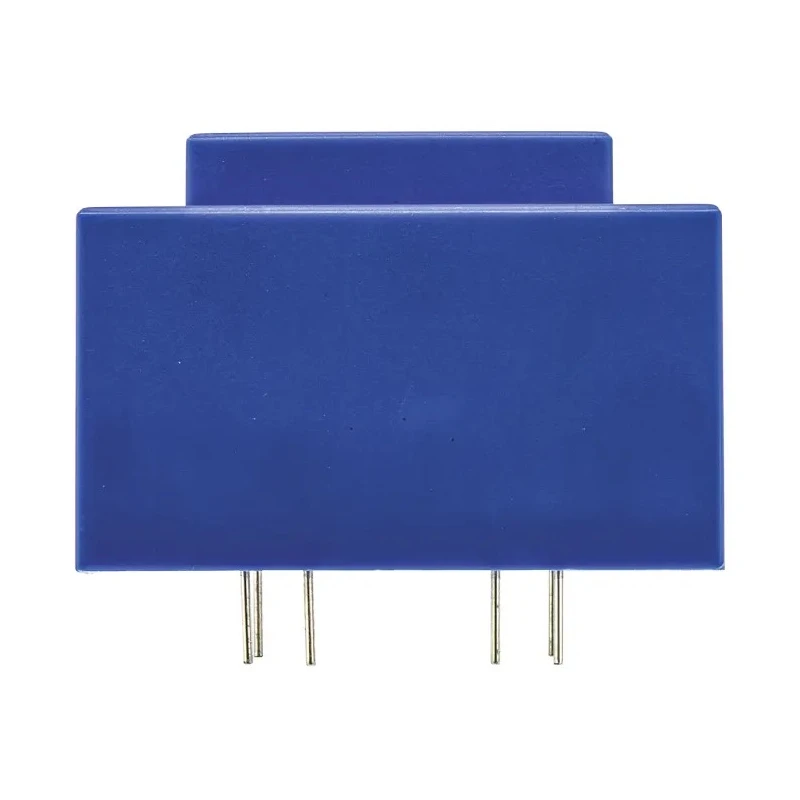

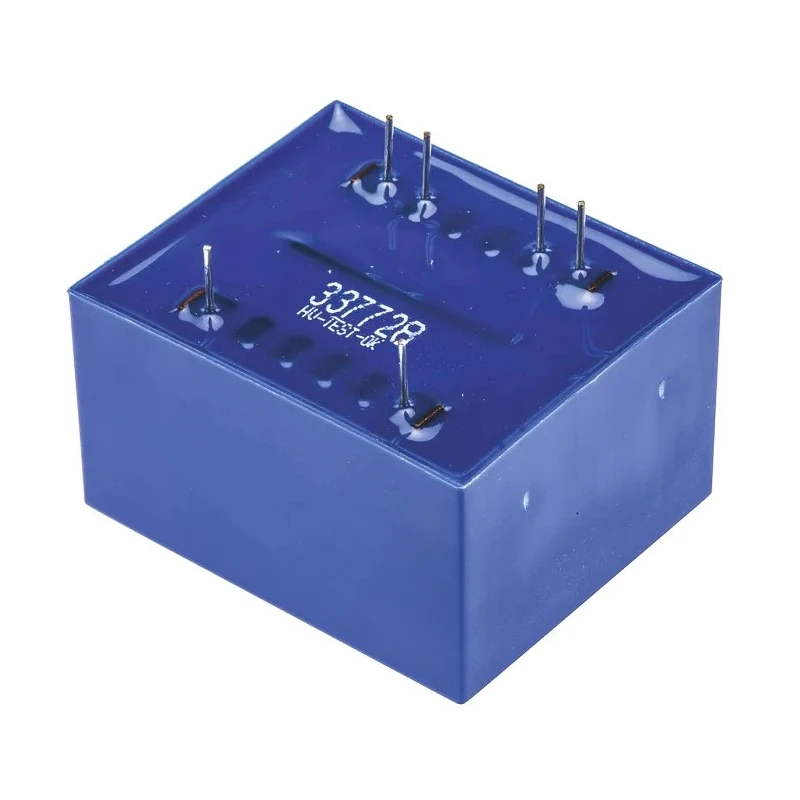

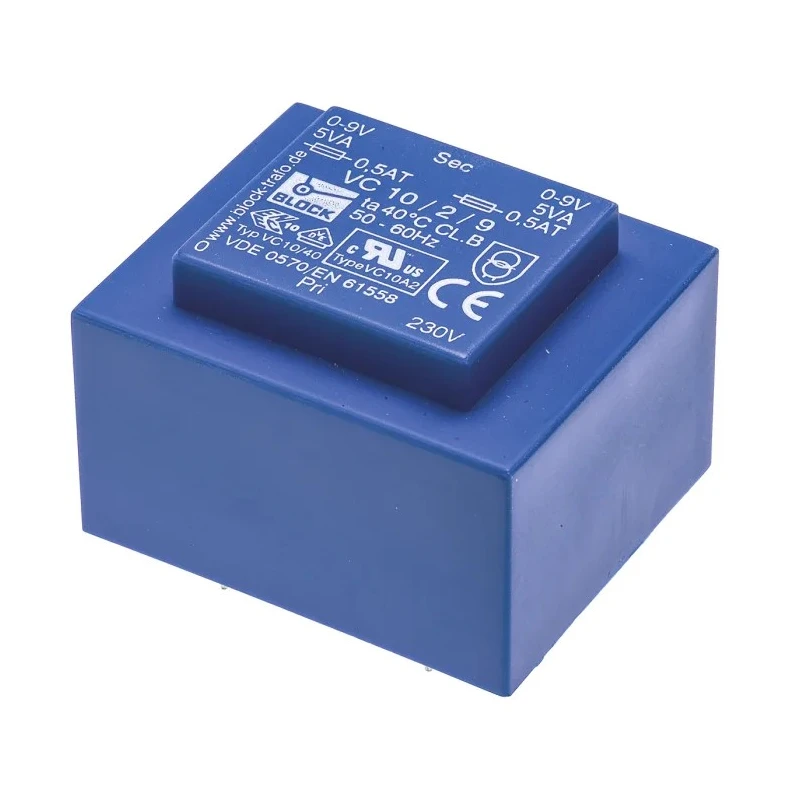

Block PCB Transformer 2 x 9 V ac 2 Output Pin, 230 V Primary, 10 VA Power VC 10/2/9

Block VC 10/2/9 is a high-quality PCB Transformer designed for electronic power applications, featuring a primary voltage of 230 V ac and dual secondary outputs of 2 x 9 V ac with 10 VA power capacity. This transformer is suited for mounting directly onto printed circuit boards with pin type mounts offering reliable fixation.

The encapsulated transformer is vacuum resin moulded to UL94-V0 rating, providing excellent electrical insulation and safety. It has low inter-winding capacitance which minimizes noise interference, making it ideal for sensitive electronic equipment.

Measuring 51mm in length, 34.6mm in width, and 43mm depth, and weighing only 280 grams, this compact design supports efficient power distribution within constrained spaces. It operates efficiently at 74% within a frequency range of 50 to 60 Hz and can withstand operational temperatures up to a maximum of 40°C.

Compliance with multiple international standards such as ENEC (VDE), UL 5085-1/-2, CSA 22.2 No.66, IEC 61558-2-6 assures users of its reliability and safety for industrial and laboratory electronics, power supplies, and control systems.

This product is manufactured in Germany and is tested 100% electrically and flash tested for quality assurance. It is an ideal solution for various electronics, manufacturing, HVAC controls, and water treatment systems requiring stable and safe voltage transformation.

Designed for PCB mounting with pin type mount for secure installation. Encapsulated construction with UL94-V0 vacuum resin moulding for enhanced electrical safety. Low noise thanks to low inter-winding capacitance. Efficient operation with 74% efficiency rating.

Dual 9 V ac outputs flexible for series or parallel connection. Complies with ENEC (VDE), UL 5085-1/-2, CSA, and IEC safety standards. Compact dimensions of 51mm x 34.6mm x 43mm. Lightweight at 280 grams.
