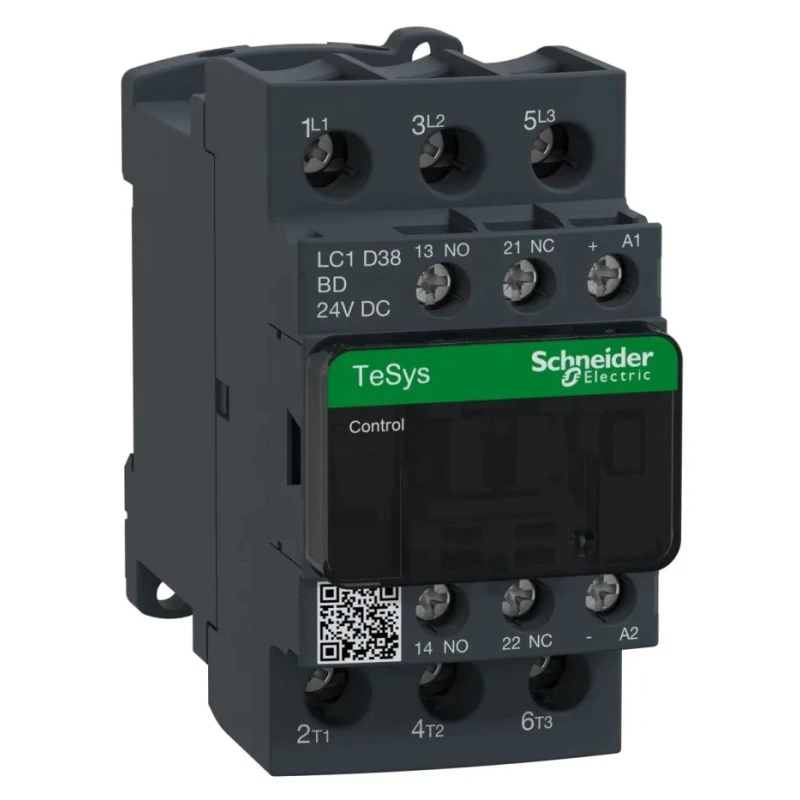

Schneider Electric TeSyS D 3-Pole Contactor LC1D38BD 24V DC Coil 38 A 18.5 kW 3 NO 690V AC

Schneider Electric LC1D38BD is a 3-pole TeSyS D series contactor engineered specifically for motor control and resistive load applications. Equipped with a 24V DC coil and rated for 38 Amps contact current, this device supports heavy duty switching with a power rating of 18.5 kW and contact voltage up to 690V AC, making it suitable for various industrial and commercial electrical systems.

The contactor includes 3 normally open (NO) contacts along with 2 auxiliary contacts configured as 1 NO and 1 NC, providing enhanced control circuit flexibility. The robust screw terminal connections ensure firm attachment ideal for high-vibration environments, enhancing reliability and safety.

Measuring compactly at 85 mm in length, 45 mm in width, and 101 mm in depth, it facilitates easy DIN rail mounting even in limited space setups. This device operates efficiently in temperatures ranging from -40°C to +60°C, allowing deployment in challenging conditions. It carries multiple international approvals including RoHS, UL, CCC, CSA, EAC, EN 60947-5-1, and IEC, underscoring its compliance and quality standards.

The contactor is highlighted by features like a bidirectional peak limiting diode suppressor that protects the coil against voltage spikes, ensuring longevity and durability. It is particularly effective in applications such as medical equipment, compressors, pumps, and agricultural machinery where reliable switching performance is critical.

Designed for precise and effective circuit regulation, the Schneider Electric LC1D38BD contactor is ideal for commercial and industrial control systems requiring high current handling capability beyond standard relays. Its IP20 rating offers touch protection for enhanced workplace safety.

Choose this component to ensure efficient motor and load control with dependable performance in your electrical installations. The contactor features a 24V DC coil voltage and supports a 690V AC contact voltage. It includes 3 normally open (NO) power poles and 2 auxiliary contacts (1 NO and 1 NC) for versatile control.

Screw-type terminals ensure secure connections, suitable for installations subject to vibration. Compact design with dimensions 85 mm length, 45 mm width, and 101 mm depth facilitates space-saving DIN rail mounting. Operating temperature range from -40°C to 60°C enables use in harsh environments.

Compliant with RoHS and multiple safety standards including UL, CCC, CSA, EAC, EN 60947-5-1, and IEC approvals. Ideal for applications in motor starters, compressors, pumps, and agricultural machinery. Features bidirectional peak limiting diode suppression for coil protection and long service life.
