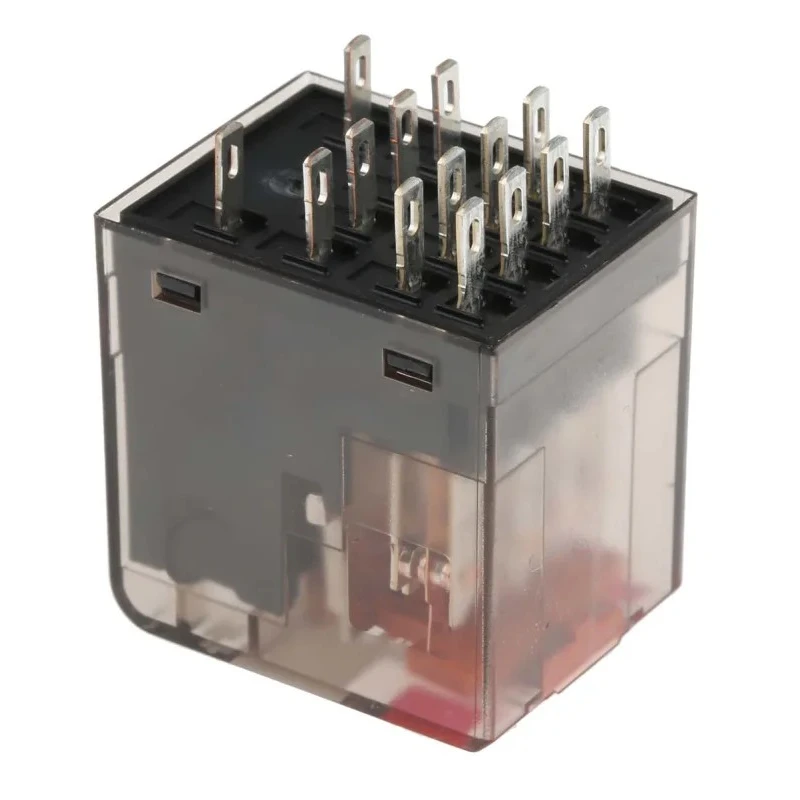

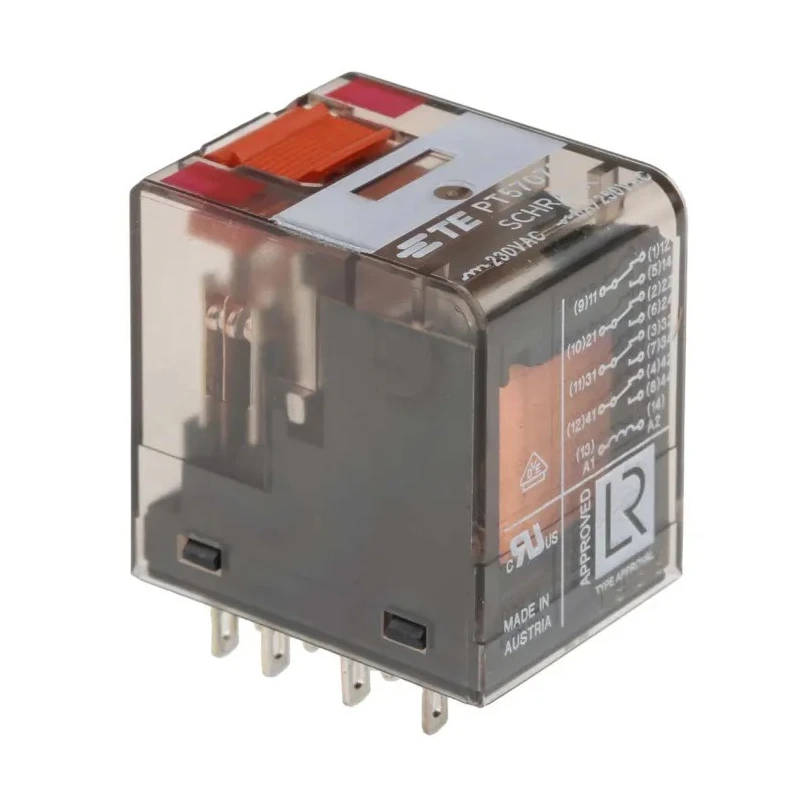

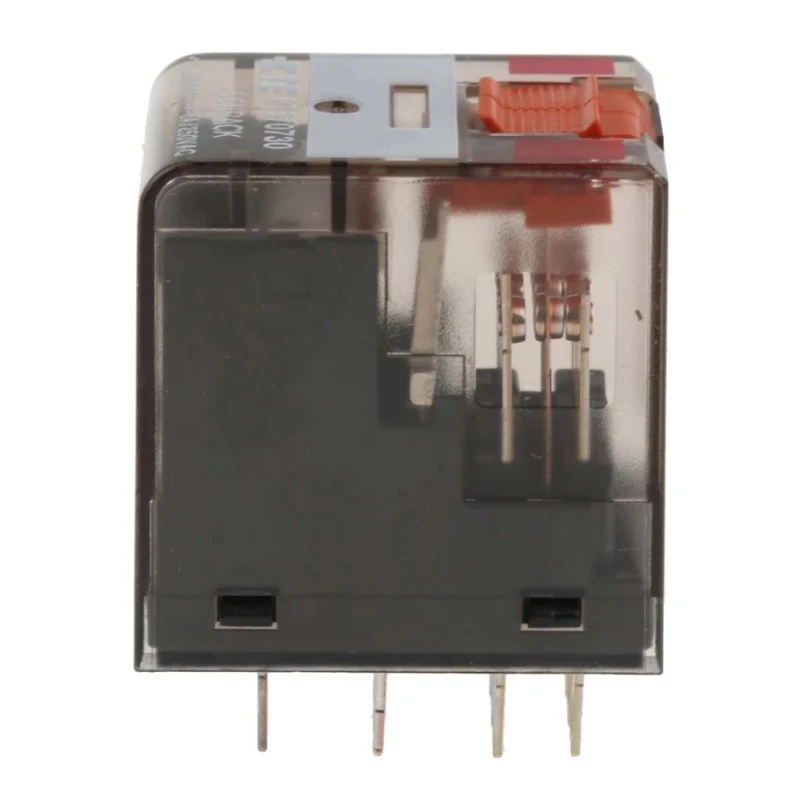

TE Connectivity 230V AC Coil 6A Switching Current 4PDT PCB Power Relay PT570730 9-1419111-1

TE Connectivity PT570730 9-1419111-1 PCB Power Relay is a high-quality non-latching relay designed for industrial and automation control applications. It features a coil voltage of 230V AC and can switch currents up to 6 Amps using a 4PDT (four-pole double-throw) contact arrangement, making it highly versatile for complex switching tasks on printed circuit boards.

The relay’s compact size with dimensions of 35mm height, 28mm length, and 22.5mm width enables integration in tight PCB spaces. Its quick connect terminal type allows for rapid and secure electrical connections.

Designed to operate reliably within a wide temperature range from -40°C to 70°C, this relay is suitable for use in harsh industrial environments. Its contacts are made from silver nickel alloy with cadmium-free materials ensuring durability and resistance to corrosion.

Safety and compliance are assured by certifications including VDE, IEC, RoHS, and UL, supporting applications requiring adherence to international safety standards. The coil to contact isolation withstands up to 2.5kVAC, providing excellent electrical isolation for safer circuit designs.

The relay includes functional features such as an LED indicator and a mechanical lockable manual test facility for easy diagnostics and control in automation systems. Operates at 230V AC coil voltage with 19.5kΩ coil resistance for energy-efficient performance.

Switching capabilities rated at 6A continuous current and 240V AC maximum switching voltage. Compact PCB mount design with quick connect terminals for straightforward installation. Wide operating temperature suitability from -40°C to 70°C for industrial applications.

High-quality silver nickel alloy contacts for longevity and reliable switching. Certified to major international standards including UL, CSA, and VDE for safety assurance. Includes LED and manual test indicator for operational monitoring and manual override.

Made in Austria, reflecting excellent manufacturing standards and quality control.

This TE Connectivity PCB Power Relay is ideal for use in industrial automation, control systems, manufacturing equipment, and electrical panels where precise and reliable switching is required. It fits perfectly into projects requiring compact power relays with a solid balance of performance, durability, and safety.
