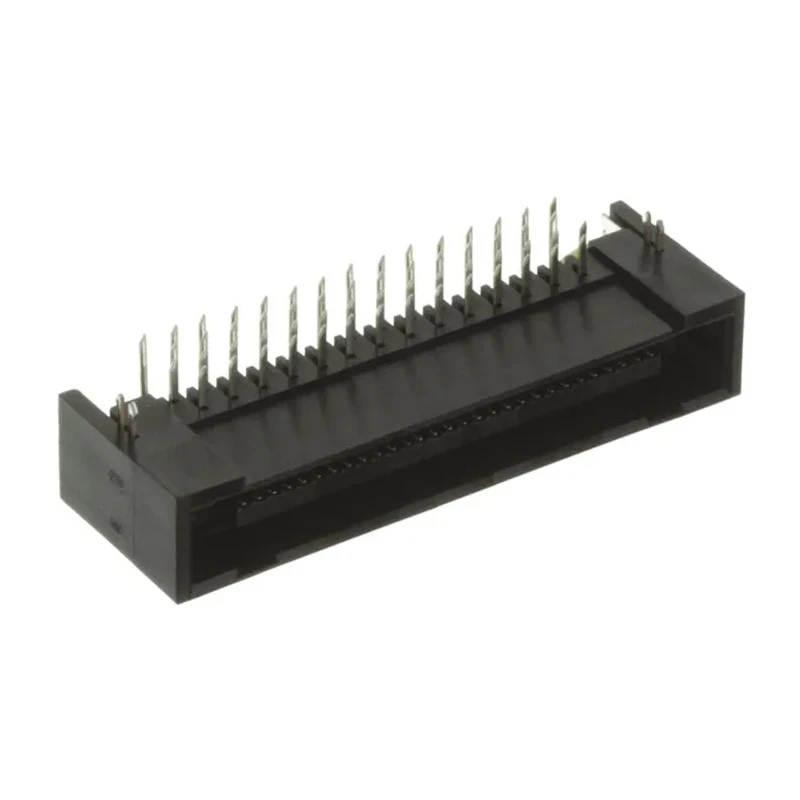

JAE TX25 Series Right Angle Through Hole PCB Header, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TX25

Free Delivery in India | Lowest Global Shipping Charges

JAE TX25 Series Right Angle Through Hole PCB Header, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TX25



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	JAE
Orientation	Right Angle
Current	1A
Model	TX25
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	TX25
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	30
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features 30 gold-plated copper alloy contacts for durability and excellent conductivity.
Constructed with Polybutylene Terephthalate housing, providing stability and insulation.
Designed as a shrouded connector with right angle orientation for board-to-board mounting.
Supports up to 1A current and withstands operating temperatures from -40°C to 80°C.
Solder termination for secure and stable mechanical connection.
Through-hole mount type suitable for robust PCB assembly.
Rated for 500V voltage, ensuring safe electrical operation.
Includes polarizing keys for correct mating and enhanced reliability.

Product Description

JAE TX25 Series Right Angle Through Hole PCB Header, model TX25, features 30 contacts arranged in 2 rows with a 1.27 mm pitch, specifically designed for board-to-board applications. The connector's housing is made from high-quality Polybutylene Terephthalate, providing excellent thermal and mechanical stability. This shrouded connector ensures protection against accidental damage and enhances connection reliability.

The contacts use a copper alloy core plated with gold, which guarantees excellent conductivity and durability under repeated mating cycles. Operating temperature ranges from -40°C to 80°C, supporting a wide range of environmental conditions in industrial and electronic manufacturing settings.

This product employs a through-hole mount type with solder termination, ensuring a secure and firm connection to the PCB. Its right angle orientation facilitates efficient PCB layout and space saving in compact electronic assemblies. Rated at 1A current and 500V voltage, this header is suitable for low power electronic devices requiring stable and reliable board interconnections.

Applications include telecommunications equipment, electronic devices requiring robust plug-in connections, industrial control systems, and telecommunications technology. The inclusion of polarizing keys prevents incorrect mating and supports consistent, repeatable connections.

30 gold-plated copper alloy contacts provide reliable conductivity. Polybutylene Terephthalate housing offers mechanical robustness. Right angle, shrouded design for enhanced protection and space efficiency. Supports currents up to 1A and voltages up to 500V.

Through-hole mount and solder termination ensure firm PCB attachment. Operating temperature range from -40°C to 80°C suits diverse environments. Board-to-board connector system with 1.27 mm pitch spacing. Polarizing keys ensure accurate mating and prevent assembly errors.

Designed for industrial, manufacturing, and telecom use cases.

This JAE TX25 Series PCB Header is an essential component for engineers and manufacturers seeking reliable, long-lasting board connectors. Browse more PCB Headers and connectors on EnvMart for comprehensive solutions suitable for all electronic assembly needs.
