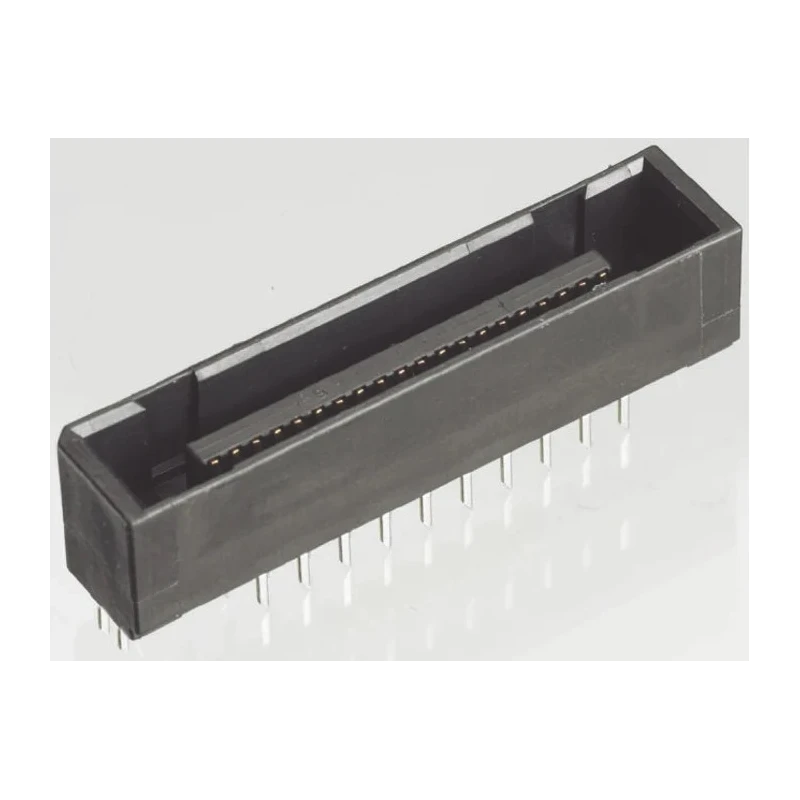

JAE TX25 Series Straight Through Hole PCB Header 60 Contacts 1.27 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | JAE |
| Orientation | Straight |
| Current | 1A |
| Model | TX25 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | TX25 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with Polybutylene Terephthalate housing for durability.
- Copper alloy contacts plated with gold ensure low resistance and reliable connectivity.
- Rated for a current of 1 amp and voltage of 500 volts.
- Operates reliably within a temperature range of -40°C to 80°C.
- Designed with a long electrical engagement length for a stable and reliable connection.
- Non-pin type contacts withstand mating and unmating twisting forces.
- Includes polarizing keys for correct alignment in rack and panel applications.
- Mount type is through hole for secure PCB attachment.
Product Description
The JAE TX25-60P-6ST-H1E is a high-performance PCB header connector designed for straight through hole mounting with 60 contacts arranged in 2 rows and a 1.27 mm pitch. The connector features copper alloy contacts with gold plating to ensure minimal contact resistance and excellent corrosion resistance.
With a current rating of 1A and voltage rating of 500V, the TX25 series connector is suited for a wide range of electronic applications requiring secure board-to-board connections. Its operating temperature range from -40°C to 80°C allows deployment in harsh and variable environmental conditions. The connector’s design incorporates a long electrical engagement length, which delivers a highly reliable and stable connection, critical for industrial and manufacturing electronics.
The non-pin type contact design enhances durability by withstanding mating and unmating twisting forces, while the clever "click action" mechanism confirms a positive connection. The connector housing includes polarizing keys to prevent incorrect mating, making it ideal for rack and panel connector applications in electronic devices and systems.
Mounting is via a through hole type, ensuring a secure fit onto printed circuit boards, which supports high volume production and efficient assembly. The shrouded connector system also protects contacts from accidental damage and short circuits, adding to overall system reliability.
Constructed with durable Polybutylene Terephthalate housing. Copper alloy contacts with gold plating for optimal conductivity. Rated for 1 amp current and 500 volts operating voltage. Operating temperature range from -40°C to 80°C ensures versatility.
Long electrical engagement length provides stable and reliable connections. Non-pin contacts resist twisting forces during mating and unmating. Polarizing keys prevent incorrect connection in rack and panel applications.
Through hole mount type for secure PCB installation. Shrouded design for contact protection and enhanced safety.
This connector is extensively used in industrial electronics, manufacturing, laboratory equipment, power and signal interconnection applications, and wherever a high-quality PCB Header is required. Browse the Electronics Components category on EnvMart for more high-performance connectors from leading brands like JAE.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header is rated for a current of 1 amp and a voltage of 500 volts.
This model features a pitch of 1.27 mm and has 60 contacts arranged in 2 rows.
It uses a through hole mounting type for secure attachment to printed circuit boards.
The housing is made from Polybutylene Terephthalate, and the contacts are made from copper alloy with gold plating.
The operating temperature range is from -40°C to 80°C.
Yes, it includes polarizing keys to ensure correct alignment and prevent incorrect mating.
The non-pin type contacts are designed to withstand mating and unmating twisting forces, enhancing durability.
It is suitable for industrial electronics, manufacturing, laboratory equipment, and power and signal interconnection applications.
This model is designed as a board-to-board connector system.
The long electrical engagement length provides a stable and reliable connection, which is critical for electronic applications.
The termination type for this connector is solder.
The country of origin for this product is India.
