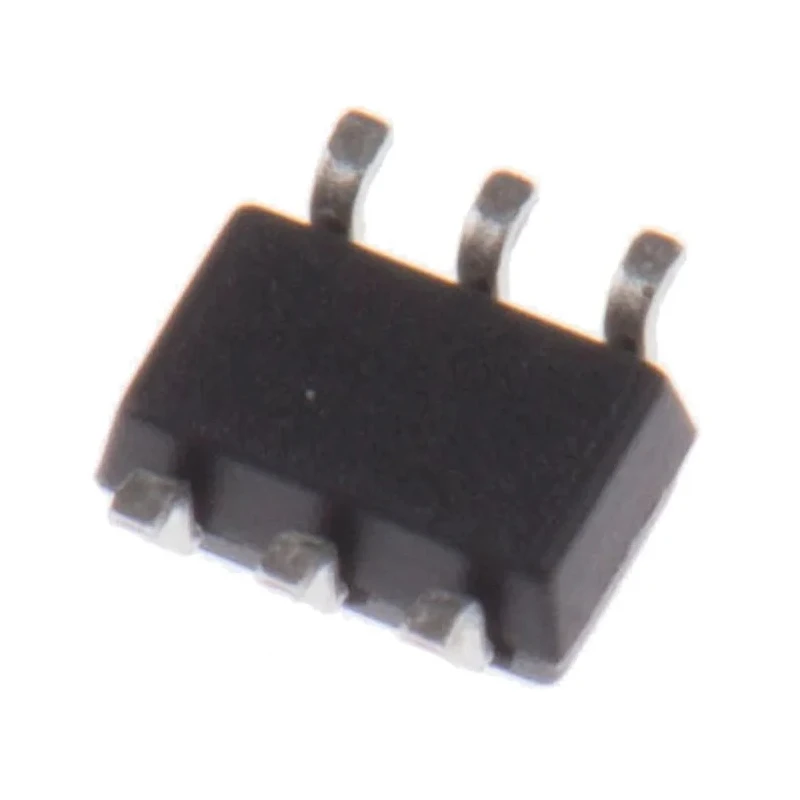

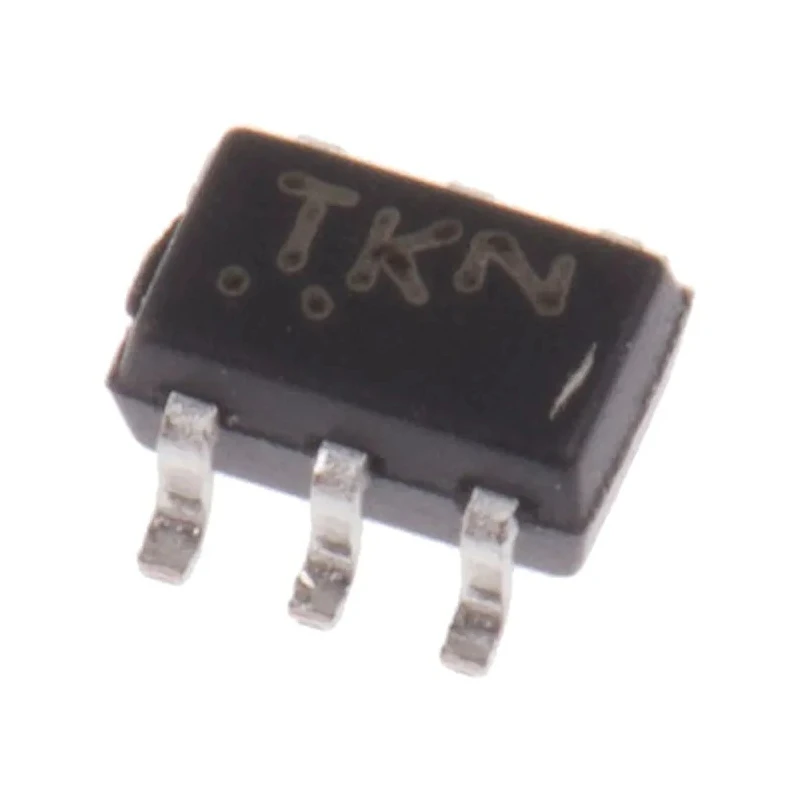

onsemi Isolated 2 Type P-Channel MOSFET, 880 mA, 20 V Enhancement, 6-Pin SOT-363 NTJD4152PT1G

onsemi NTJD4152PT1G Isolated 2 Type P-Channel MOSFET is a surface mount transistor designed for discrete semiconductor applications requiring efficient low-voltage switching up to 20 V with a continuous drain current of 880 mA. It features isolated dual P-Channel elements in a compact 6-pin SOT-363 package measuring 2.2 mm by 1.35 mm by 1 mm, optimized for space-constrained PCBs.

The transistor operates in enhancement mode, with a maximum power dissipation rating of 350 mW, supporting reliable operation in demanding thermal environments ranging from -55°C up to 150°C. Its typical gate charge of 2.2 nC ensures fast switching performance suitable for precision electronic circuits. The gate-source voltage maximum of 12 V provides robustness in controlling the MOSFET under varying input conditions.

This MOSFET is compliant with the AEC-Q101 automotive qualification standard, making it ideal for automotive and industrial semiconductor applications where reliability is critical. The device's forward voltage is approximately -0.8 V, which is useful for design considerations in power management circuits.

Common applications include power switching, signal amplification, and protection circuits within industrial, automotive, and consumer electronics. Its compact SOT-363 package facilitates easy integration into densely packed circuit boards for modern electronic devices.

This MOSFET features an enhancement mode dual P-Channel isolated configuration enabling dual transistor applications. It supports continuous drain currents up to 880 mA for moderate power operations. With a maximum drain-source voltage of 20 V, it is suited for low-voltage power management.

The device endorses a maximum power dissipation of 350 mW ensuring adequate thermal handling. Supports wide temperature range from -55°C to 150°C suitable for challenging industrial environments. Complies with AEC-Q101 automotive standard for higher quality assurance and reliability.

Ideal for applications in automotive electronics, industrial controls, and consumer devices. 6-pin SOT-363 surface mount package enables compact design footprint. Discover our wider selection of MOSFETs and semiconductor components on EnvMart for your electronic design and manufacturing needs.
