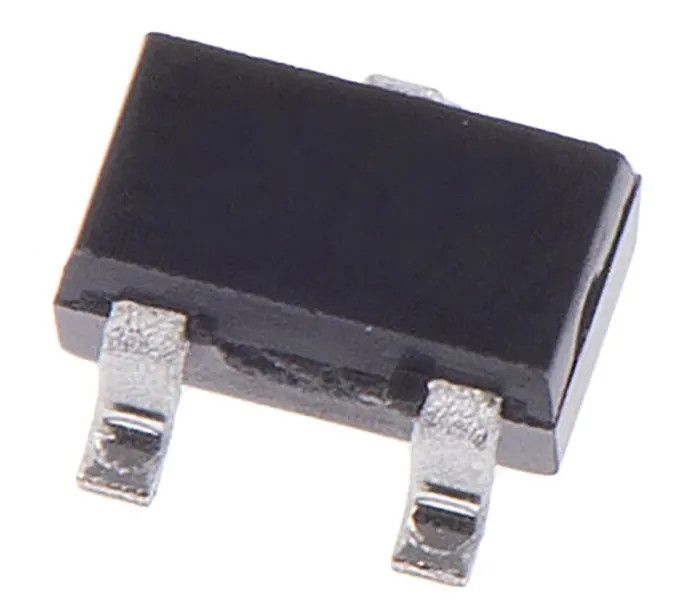

DiodesZetex 30 V 200 mA Switching Diode Surface Mount SC-70 Package BAT54AW-7-F

DiodesZetex BAT54AW-7-F is a high-performance surface mount switching diode designed for electronic components and semiconductor applications. Featuring a robust SC-70 package, this diode supports a maximum continuous forward current of 200 mA and a reverse repetitive voltage rating of 30 V, making it suitable for various low voltage switching circuits.

The diode employs a common anode 3-pin configuration, enhancing compatibility with diverse circuit designs. Its low forward voltage drop of 1 V and a rapid peak reverse recovery time of 5 ns contribute to improved energy efficiency and reduced switching losses, essential for power-sensitive applications.

Designed to operate reliably under extreme conditions, the diode supports a broad temperature range from -65°C to 125°C and can sustain peak non-repetitive forward surge currents up to 600 mA. These characteristics enable its use in industrial, automotive circuitry testing, and signal switching domains, although automotive certification is not applicable for this model.

The compact physical dimensions of 2.2 mm length, 1.35 mm width, and 1 mm height make it ideal for high-density printed circuit boards where space saving is critical. While no specific standards or automotive approvals are declared, the diode maintains consistent performance adhering to quality semiconductor manufacturing benchmarks.

This product suits engineering, manufacturing, and repair applications in electronics, providing reliable switching diode functionality for industrial equipment, instrumentation, and power management systems.

Designed for surface mount applications using compact SC-70 package. Maximum continuous forward current of 200 mA ensures efficient switching performance. Peak reverse repetitive voltage is 30 V suitable for low voltage switching circuits.

Three-pin common anode diode configuration for versatile circuit designs. Low forward voltage drop of 1 V enhances energy efficiency in rectifier applications. Extremely fast peak reverse recovery time of 5 ns reduces switching losses.

Wide operating temperature range from -65°C to 125°C ensures reliability in harsh conditions. Peak non-repetitive forward surge current rating of 600 mA protects against transient events. Compact dimensions: length 2.2 mm, width 1.35 mm, height 1 mm facilitate high density PCB layouts.

Automotive standard compliance not applicable for this model. Explore more DiodesZetex semiconductor products at EnvMart for efficient and reliable electronic solutions.
