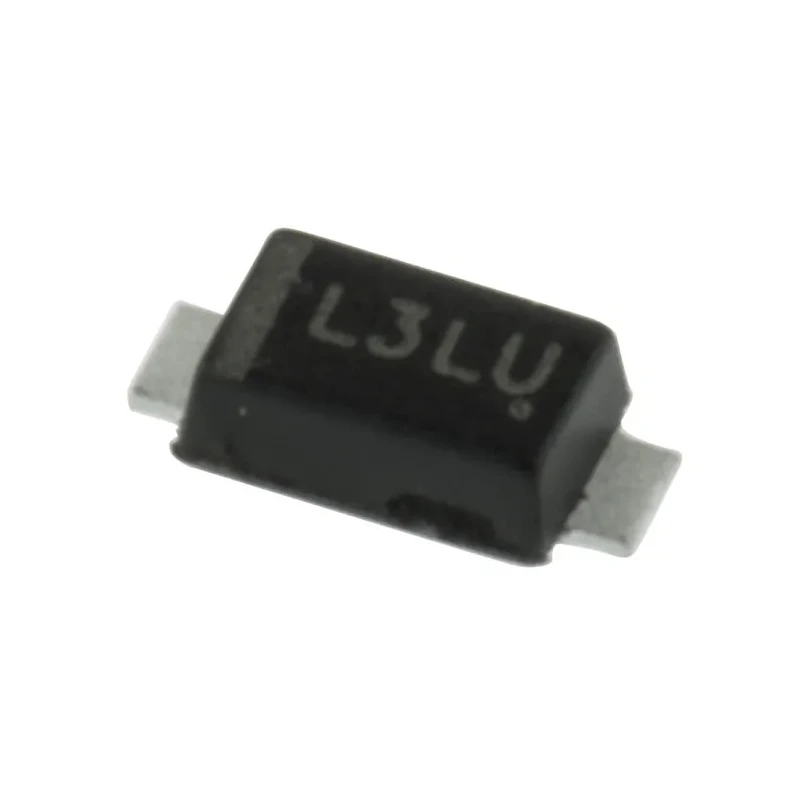

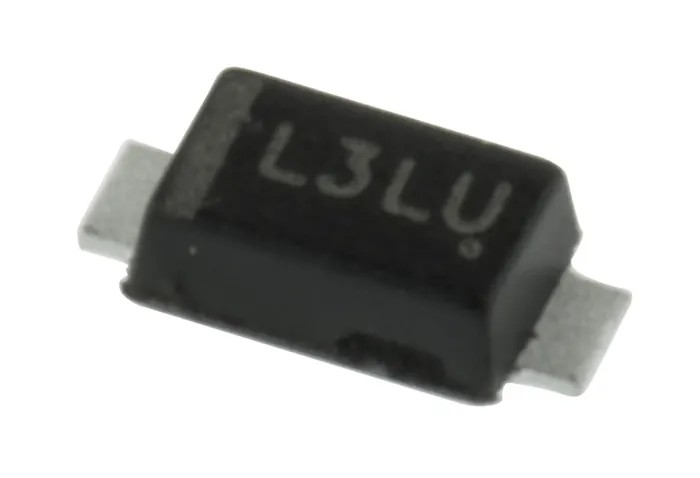

onsemi 30 V 2 A Surface Mount Schottky Diode 2-Pin SOD-123 MBR130LSFT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.9mm |
| Length | 2.9mm |
| Model | MBR130LSFT1G |
| Width | 1.8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 25mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 380mV |
Key Features
- Equipped with Schottky barrier technology for low forward voltage drop.
- Designed for high frequency rectification and polarity protection.
- Compact SOD-123 package suitable for automated assembly.
- Peak forward surge current rating of 40 A ensures robustness.
- Operating temperature range from -55°C to 125°C.
- Automotive AEC-Q101 qualification for reliable automotive use.
- Extremely lightweight with an 11.7 mg epoxy moulded case.
- Low peak reverse current of 25 mA at 25°C enhances efficiency.
Product Description
onsemi MBR130LSFT1G is a high-performance surface mount Schottky diode designed for low voltage, high-frequency rectification and polarity protection applications. Featuring a maximum continuous forward current of 2 A and a peak reverse voltage of 30 V, this diode excels in a variety of industrial electronics, automotive, power management, and semiconductor applications.
The diode is housed in a compact and lightweight SOD-123 epoxy moulded case, weighing merely 11.7 mg, which facilitates optimal automated board assembly processes, reducing production times and costs. Its Schottky barrier design ensures minimal forward voltage drop, contributing to increased power efficiency and lower heat dissipation.
Operating reliably over a wide temperature range from -55°C up to 125°C, the MBR130LSFT1G is suitable for demanding environments found in automotive and industrial systems. It meets the automotive standard AEC-Q101, reflecting its suitability for automotive system integration where high reliability is critical.
Notable electrical characteristics include a peak non-repetitive forward surge current of 40 A and a low peak reverse current of 25 mA at 25°C, enhancing durability and performance. The diode’s single diode configuration with two pins makes it optimal for compact circuit designs.
Its usage spans various sectors including industrial electronics manufacturing, power supplies, voltage clamping, freewheeling diode in motors, and polarity protection in circuits. It is particularly valuable where size, weight, and efficiency are crucial.
Equipped with Schottky barrier technology for low forward voltage drop. Designed for high frequency rectification and polarity protection. Compact SOD-123 package suitable for automated assembly. Peak forward surge current rating of 40 A ensures robustness.
Operating temperature range from -55°C to 125°C. Automotive AEC-Q101 qualification for reliable automotive use. Extremely lightweight with an 11.7 mg epoxy moulded case. Low peak reverse current of 25 mA at 25°C enhances efficiency.
Explore more Schottky diodes and semiconductor components at EnvMart for industrial and automotive applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the MBR130LSFT1G is 2 A.
The peak reverse voltage rating of this model is 30 V.
This diode operates over a temperature range from -55°C to 125°C.
The MBR130LSFT1G is housed in a compact SOD-123 package.
It has a peak forward surge current rating of 40 A.
This diode weighs 11.7 mg.
The maximum forward voltage drop for this model is 380 mV.
The MBR130LSFT1G complies with the AEC-Q101 automotive standard.
It features a single diode configuration with two pins.
The peak reverse current at 25°C is 25 mA.
This diode is suitable for high-frequency rectification, polarity protection, and various industrial electronics applications.
The dimensions are 0.9 mm in height, 2.9 mm in length, and 1.8 mm in width.
