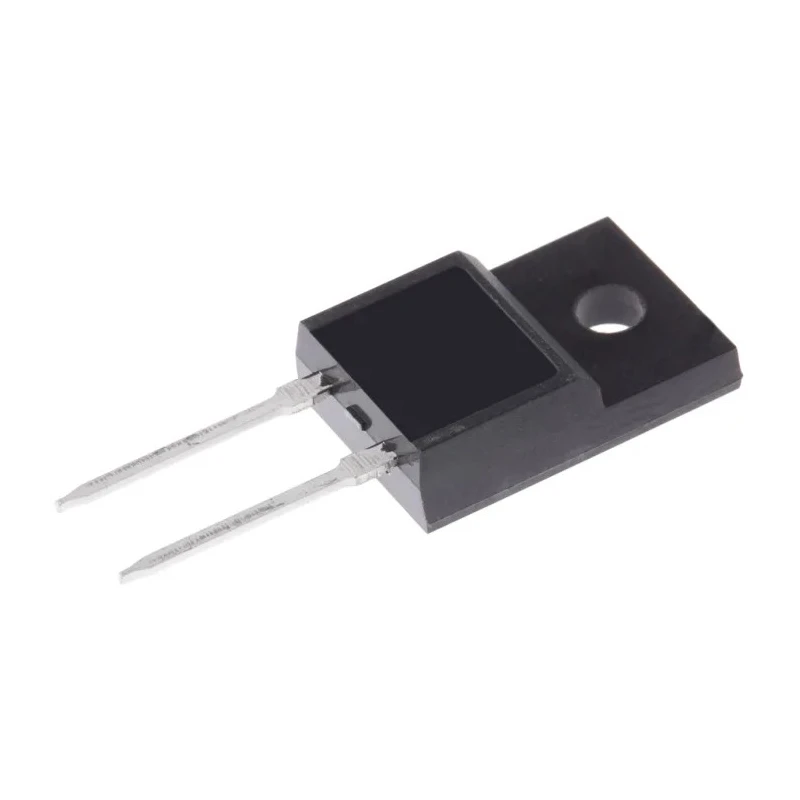

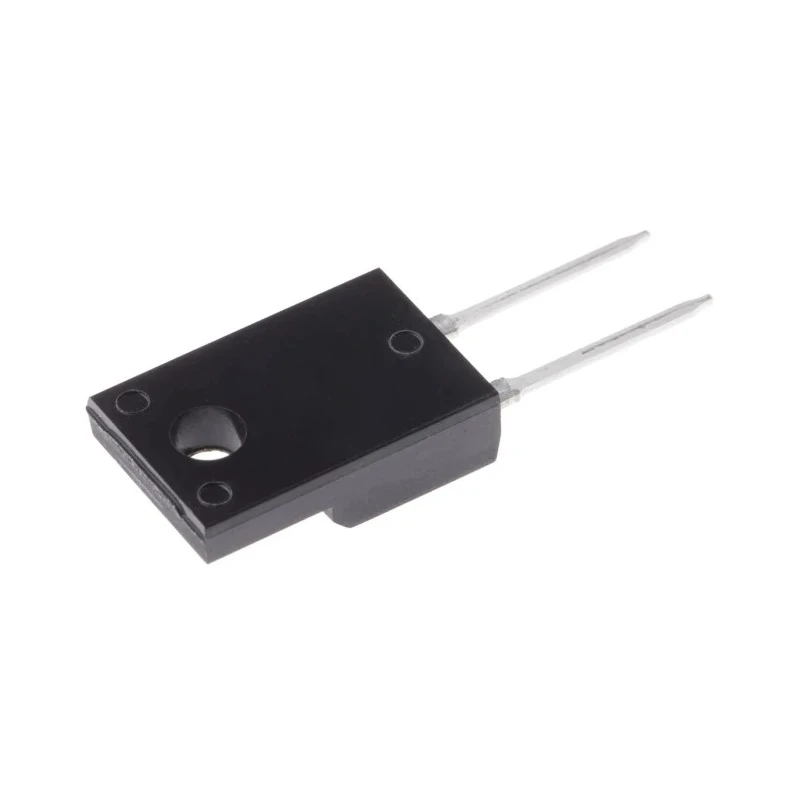

STMicroelectronics 600 V 5 A Switching Diode Through Hole TO-220 Package STTH5R06FP
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STTH5R06FP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH5 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 2.9V |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Maximum continuous forward current of 5 Amperes enables high current capability.
- Peak reverse repetitive voltage of 600 Volts ensures high voltage tolerance.
- Low peak reverse current of 20 microamperes reduces leakage current.
- Fast peak reverse recovery time of 25 nanoseconds facilitates efficient switching.
- Operating temperature range from -65°C to 175°C provides wide thermal tolerance.
- Compact dimensions (10.4 mm length, 4.6 mm width, 9.3 mm height) suitable for compact circuit designs.
- Rectifier type is switching diode with single diode configuration.
- Peak non-repetitive forward surge current of 50 Amperes supports transient conditions.
Product Description
STMicroelectronics STTH5R06FP is a high-performance switching diode designed for industrial and electronic applications requiring reliable rectification at high voltage and current levels. Featuring a maximum continuous forward current rating of 5 A and a peak reverse repetitive voltage of 600 V, this diode ensures robust electrical operation suitable for power electronics, power supplies, and switching circuits.
Packaged in a standard TO-220 through-hole configuration with 2 pins, the STTH5R06FP offers durable mechanical mounting and excellent thermal dissipation. The device supports a wide operating temperature range from -65°C to 175°C, making it suitable for harsh industrial environments and thermal cycling.
The diode exhibits a fast peak reverse recovery time of 25 ns, critical for minimizing switching losses in high-frequency applications. With a low forward voltage drop of 2.9 V and peak reverse current of just 20 μA, it provides efficient power handling and low leakage currents.
Key features include a peak non-repetitive forward surge current rating of 50 A, allowing it to withstand transient surges and overload conditions without degradation. Compliant with RoHS environmental standards, this diode is manufactured to meet strict quality and safety directives.
Maximum continuous forward current of 5 Amperes. Peak reverse repetitive voltage rating of 600 Volts. Low peak reverse current of 20 microamperes. Peak reverse recovery time of 25 nanoseconds. Wide operating temperature range from -65°C to 175°C.
Compact TO-220 package suitable for through-hole mounting. Single diode configuration optimized for switching applications. Peak non-repetitive forward surge current of 50 Amperes. RoHS compliant for environmental safety.
This diode finds typical use in power rectification, switching regulators, inverters, and power management circuits in industrial automation, electronics manufacturing, and electrical equipment sectors.
Explore the range of semiconductor devices in the STMicroelectronics portfolio for reliable and efficient performance in diverse industrial and commercial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5 Amperes.
This diode has a peak reverse repetitive voltage rating of 600 Volts.
The peak reverse recovery time is 25 nanoseconds, which is beneficial for minimizing switching losses.
It operates within a temperature range of -65°C to 175°C, making it suitable for various environments.
The dimensions of the TO-220 package are 10.4 mm in length, 4.6 mm in width, and 9.3 mm in height.
The maximum forward voltage drop for the STTH5R06FP is 2.9 Volts.
This model uses a through-hole mounting type, suitable for standard PCB applications.
The peak non-repetitive forward surge current rating is 50 Amperes, allowing it to handle transient conditions.
The peak reverse current is 20 microamperes, which helps reduce leakage current.
Yes, this diode is RoHS compliant, ensuring it meets environmental safety directives.
This diode is typically used in power rectification, switching regulators, inverters, and power management circuits.
The diode has a pin count of 2, consistent with its TO-220 package configuration.
