Crydom MCX Series Solid State Relay 5 A Load PCB Mount 530 V Load 15V Control MCX380D5

Crydom MCX380D5 solid state relay is engineered for precise control of AC power loads up to 5 Amperes with a maximum load voltage rating of 530 Volts. Designed for PCB mounting, it integrates seamlessly into electronic circuits where space saving and reliable switching is paramount. The device provides control voltage operation up to 15V, enabling compatibility with various control systems.

This relay incorporates zero cross switching technology which reduces electrical noise and stress on connected equipment. It features an SCR output for efficient and silent switching performance. The relay withstands operating temperatures from -40°C to +80°C, ensuring robust operation under a wide range of environmental conditions.

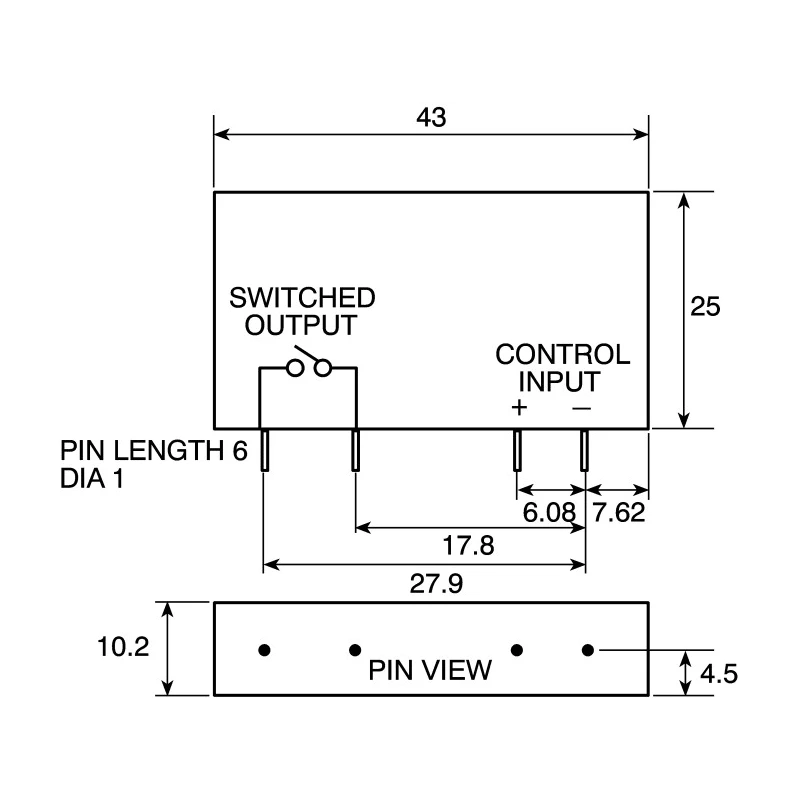

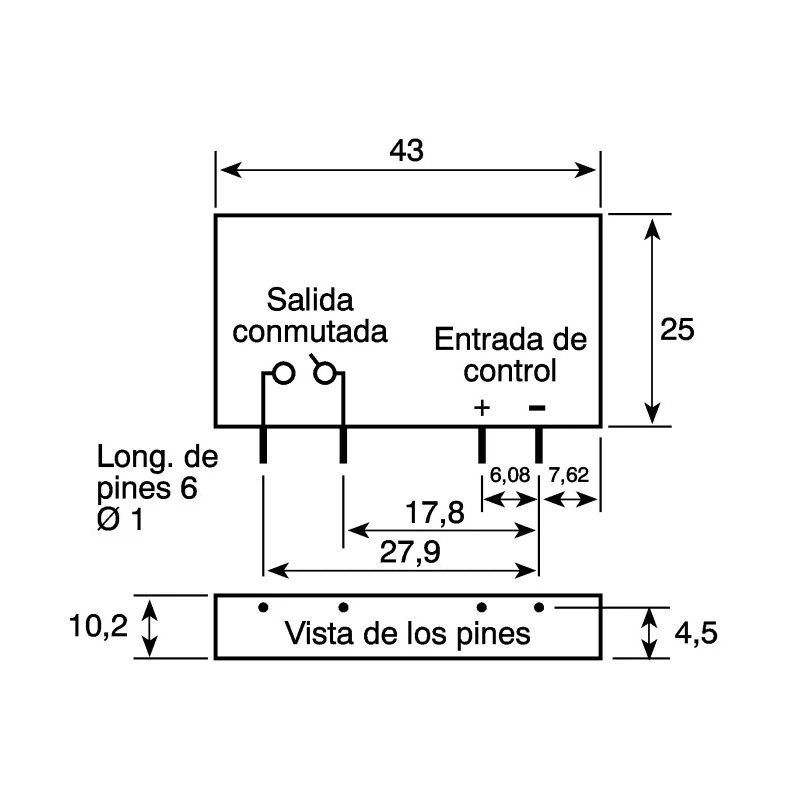

Dimensionally compact at 26 mm in height and 43.1 mm in length, the MCX380D5 is ideal for industrial automation, laboratory instrumentation, HVAC controls, manufacturing machinery, and other electrical control applications.

The unit supports a high surge current peak of 250 Amperes, absorbing transient surges to protect equipment. Screw terminal connections provide secure and durable electrical contacts. It complies with RoHS and UL E116949 standards ensuring safety and regulatory conformity.

Supports maximum load current of 5 amperes for reliable power switching. PCB mounting type suitable for circuit board integration. Operates with maximum load voltage of 530 volts for AC applications. Control voltage range from 1 volt minimum to 15 volts maximum.

Features a zero cross switching function to reduce electrical noise. High surge current peak capacity of 250 amperes for transient loads. Operates reliably in temperature range from -40°C to +80°C. Compact dimensions with height 26 mm and length 43.1 mm for space-critical installations.

Output type utilizes SCR for solid state switching performance. Equipped with screw terminal type for secure electrical connections.

This solid state relay is especially suited for industrial and automation control systems requiring silent and efficient power switching with reduced electromagnetic interference. Its durability and compactness make it an ideal solution in electrical equipment manufacturing, process control, and HVAC applications. Browse EnvMart’s extensive category of Solid State Relays for more selections and product variations.
