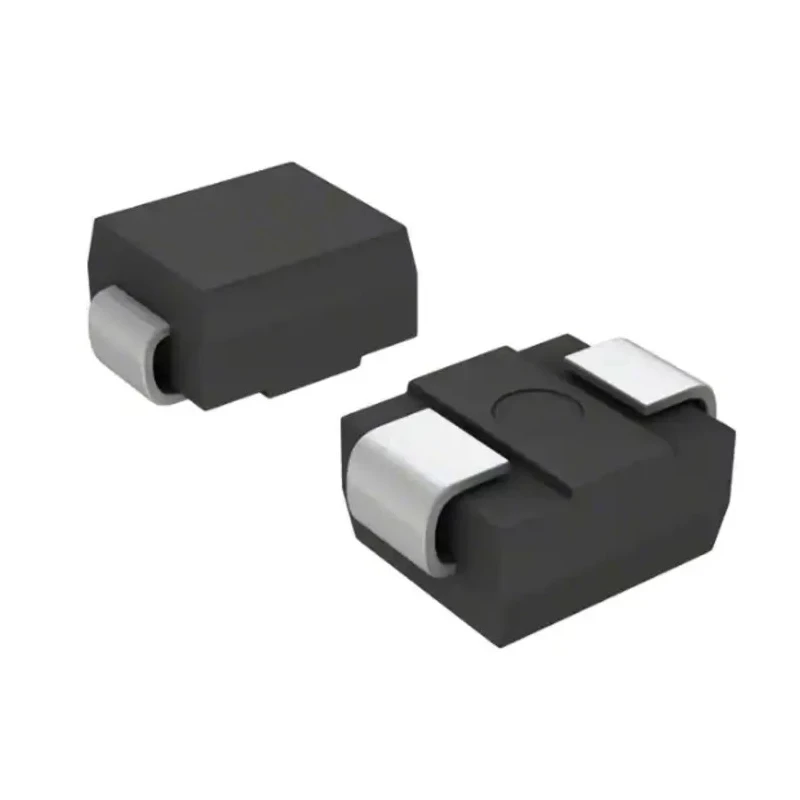

STMicroelectronics Surface Mount Power Schottky Diode 60 V 3 A 2-Pin DO-214AA STPS3L60UY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS3L60UY |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 30mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 790mV |
Key Features
- Surface mount package suitable for space-constrained applications.
- Maximum continuous forward current of 3 A ensures robust conduction capability.
- Peak reverse repetitive voltage rating of 60 V for reliable blocking performance.
- Low forward voltage drop of 790 mV minimizes power losses.
- Wide operating temperature range from -40°C to 150°C.
- High surge current capacity of 100 A peak non-repetitive forward surge current.
- Automotive grade AEC-Q101 compliant for demanding automotive environments.
Product Description
STMicroelectronics STPS3L60UY is a surface mount power Schottky diode engineered for high frequency DC to DC converters and switching power supply applications. Featuring a 2-pin DO-214AA package, this diode supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 60 V, making it well-suited for low voltage inverter and battery charger circuits with space constraints.
The device exhibits negligible switching losses and a low forward voltage drop of 790 mV, enhancing energy efficiency in power management systems. Its robust thermal performance allows operation between -40°C and 150°C, supporting reliable use in industrial and automotive environments.
With a peak non-repetitive forward surge current rating of 100 A, the diode can handle transient overload conditions effectively. The compact physical dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height contribute to ease of PCB integration.
Certified to the automotive AEC-Q101 standard, the STPS3L60UY diode ensures quality and reliability required for automotive and other rigorous industrial applications. Surface mount power Schottky rectifier ideal for high frequency DC to DC converters.
Low forward voltage drop reduces switching losses and improves efficiency. Compact 2-pin DO-214AA package for space-saving designs. Wide temperature range supports industrial and automotive environments. Handles surge currents up to 100 A for transient protection.
Automotive standard compliant (AEC-Q101) ensuring high reliability. Dimensions: 4.6 mm × 3.95 mm × 2.45 mm for easy PCB mounting.
This product is suitable for applications in industrial electronics, automotive power management, telecommunications, and consumer electronics where compact size and efficient switching performance are critical.
Explore more semiconductor diodes and Schottky rectifiers at EnvMart for your high quality electronic component requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STPS3L60UY is 3 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The forward voltage drop for this Schottky diode is 790 mV.
The operating temperature range for the STPS3L60UY is from -40°C to 150°C.
It can handle a peak non-repetitive forward surge current of 100 A.
The dimensions are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
This diode uses a DO-214AA package type.
This model is compliant with the AEC-Q101 automotive standard.
The STPS3L60UY has a pin count of 2.
It is a Schottky rectifier.
This diode is suitable for high frequency DC to DC converters and switching power supply applications.
The peak reverse current for the STPS3L60UY is 30 mA.
