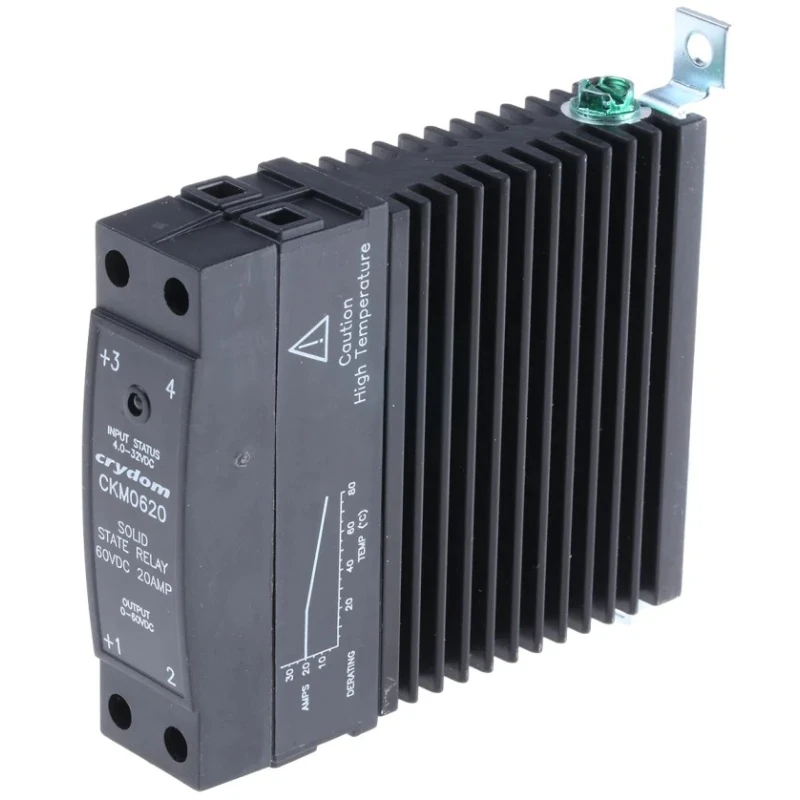

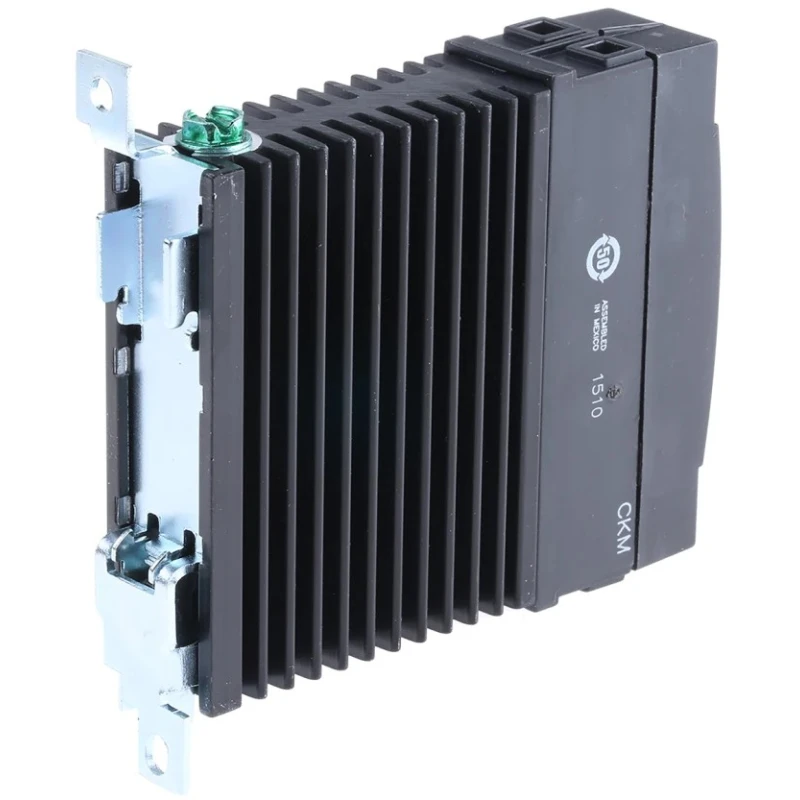

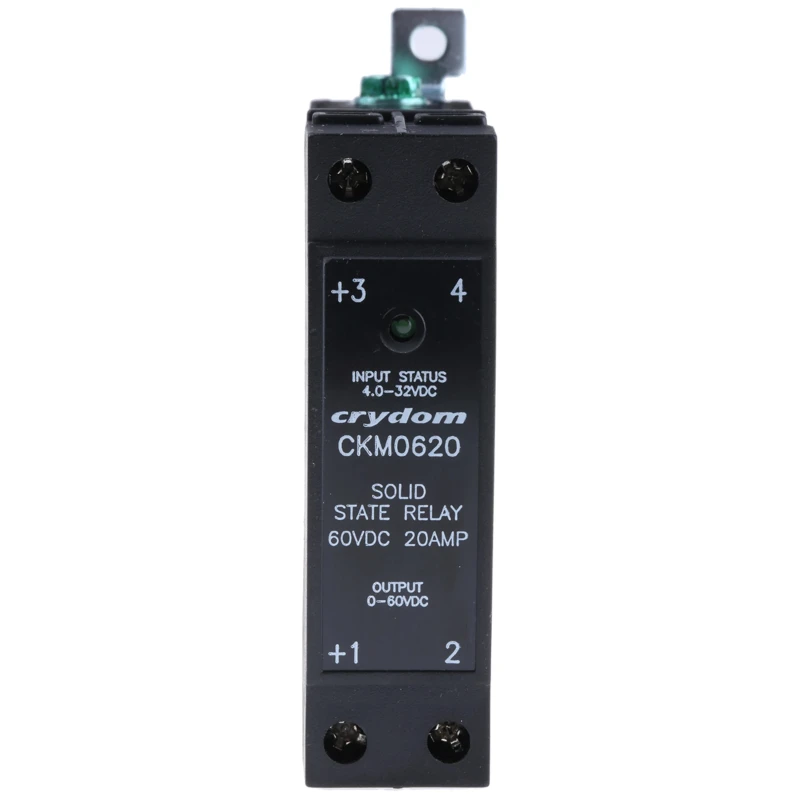

Crydom Solid State Relay 20 A Load, DIN Rail Mount, 60 V Load, 32 V Control CKM0620

Crydom CKM0620 is a high-performance Solid State Relay optimized for industrial, commercial, and automation applications. This relay supports a maximum load current of 20 A and load voltages up to 60 V, with control voltages operating between 4 V DC and 32 V DC. Its DIN rail mount design and box clamp terminals ensure reliable installation and maintenance.

The device features an SCR output type giving stable and reliable switching capabilities suited for heating systems, pumps, compressors, and machine control circuits. The epoxy encapsulation enables effective heat dissipation and provides essential insulation, promoting operator and equipment safety.

Operating in a broad temperature range from -40°C to +80°C, the CKM0620 relay is ideal for usage in demanding industrial environments. The IP20 ingress protection rating ensures protection against solid objects, enhancing its durable performance indoors.

With a compact form factor measuring approximately 81.3 mm in length, 22.5 mm width, and 81.9 mm height, it fits standard DIN rail mounting systems. The low on-state resistance of 18 milliohms contributes to efficiency by minimizing power dissipation and lowering thermal stress.

This relay also offers minimal off-state leakage current of 0.1 mA and capacitance of 8 pF, making it suitable for precise control requirements without undesired power draw. LED indicators assist users with easy status monitoring during operation.

Supports a maximum load current of 20 A for robust switching. Operates with maximum load voltage up to 60 V with 10 V minimum load voltage. Control voltage range between 4 V DC and 32 V for flexible control. Equipped with box clamp terminal type ensuring secure connections.

IP20 rated for protection against solid objects and safe indoor use. Wide operating temperature range from -40°C to 80°C for demanding environments. Low on-state resistance of 18 mΩ reduces power loss and heat generation.

Fast switching with maximum turn-on and turn-off times around 1 ms. Epoxy encapsulation provides thermal conductivity and electrical insulation. Compact dimensions facilitate DIN rail mounting and efficient space utilization.

The Crydom CKM0620 Solid State Relay is manufactured in Mexico and complies with RoHS standards, ensuring durability and environmental safety. It is widely used in industrial control systems, HVAC applications, manufacturing machinery, and automated process controls.
