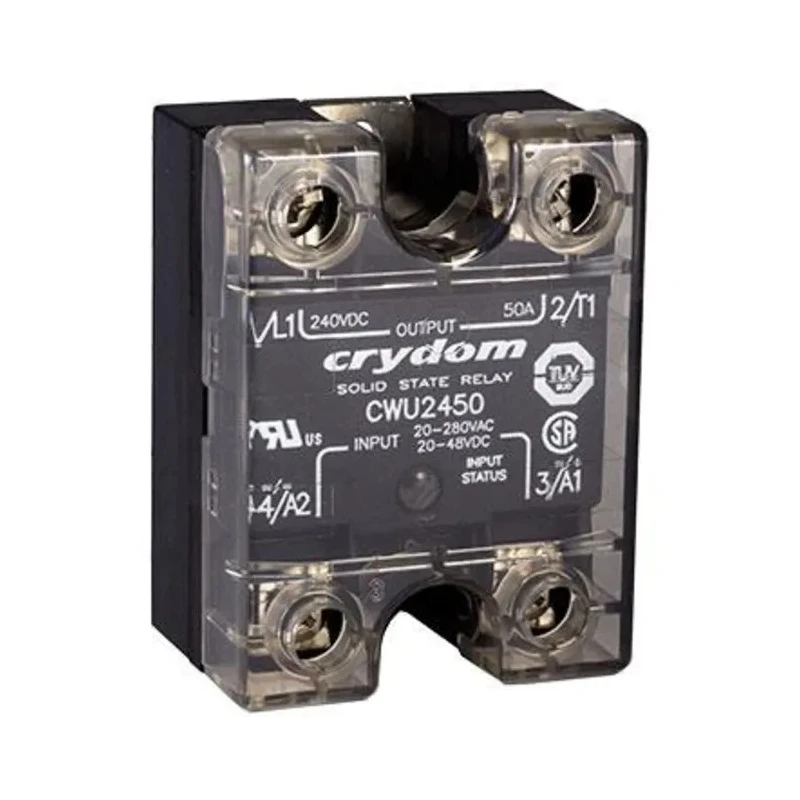

Crydom Solid State Relay Panel Mount, 50 A Load, 280 V AC Load, 280 V AC Control CW24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 58.4mm |
| Length | 45.7mm |
| Model | CW24 |
| IP Rating | IP20 |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW24 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 20V ac/dc |
| Off State Leakage Current | 1mA |
Key Features
- This relay features a robust SCR output suitable for heavy load industrial applications.
- The device has a quick turn-on time of 20 milliseconds for efficient switching.
- Equipped with an LED status indicator to facilitate easy operation monitoring.
- It supports a wide operating temperature range from -30°C to 80°C for diverse environments.
- Designed with IP20 rating for finger safety and protection against objects larger than 12 mm.
- Compact dimensions measuring approximately 58.4 mm height and 45.7 mm length allow installation in tight panel spaces.
- The terminal connection type is screw for secure and reliable wiring.
- Low off-state leakage current of 1 mA ensures minimal power loss during operation.
Product Description
The Crydom CW24 Series Solid State Relay (Model CW24) is engineered for industrial and commercial use, providing reliable switching for high current loads up to 50 amperes. Operating at a maximum load voltage of 280 V AC, it is suitable for panel mount applications requiring compact and efficient power control.
With an SCR output, this relay ensures robust heavy load switching with minimal mechanical wear due to the absence of moving parts. The quick 20 ms turn-on time enables fast response in automation systems, enhancing production line efficiency and mechanical engineering operations.
The unit operates over a wide temperature range of -30°C to 80°C, making it suitable for extreme environmental conditions in manufacturing, HVAC systems, and water treatment processes. It includes an LED status indicator for easy monitoring and diagnostics during operation.
Safety is prioritized with an IP20 rating, providing finger-safe protection and resistance against intrusion by objects larger than 12 mm. The relay features screw terminals for secure electrical connections and a low off-state leakage current of 1 mA to reduce energy consumption. Its compact size (58.4 mm height and 45.7 mm length) facilitates space-saving installation in control panels and industrial equipment.
This model supports minimum load voltages from 24 V AC and control voltages ranging from 20 V AC/DC up to 280 V AC. The 8 pF capacitance rating contributes to stable switching performance and low electrical noise. Compliance with RoHS standards affirms the product's adherence to environmental and safety regulations.
Common applications include automated industrial machinery control, production line switching, and integration into electrical panels and control systems requiring efficient and durable relay solutions.
Explore the extensive Crydom product catalog on EnvMart for compatible components and automation solutions to enhance your industrial installation and maintenance projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum load current of 50 amperes.
The maximum operating voltage for this relay is 280 V AC.
It utilizes an SCR output type, suitable for heavy load industrial applications.
The operating temperature range for this model is from -30°C to 80°C.
The terminal connection type is screw, ensuring secure and reliable wiring.
This relay measures approximately 58.4 mm in height and 45.7 mm in length.
The off-state leakage current is 1 mA, which helps minimize power loss during operation.
Yes, it includes an LED status indicator for easy monitoring and diagnostics during operation.
It has an IP20 rating, providing finger-safe protection against objects larger than 12 mm.
The minimum control voltage required is 20 V AC/DC.
Yes, it complies with RoHS standards, affirming its adherence to environmental and safety regulations.
It is suitable for applications such as automated industrial machinery control, production line switching, and integration into electrical panels.
