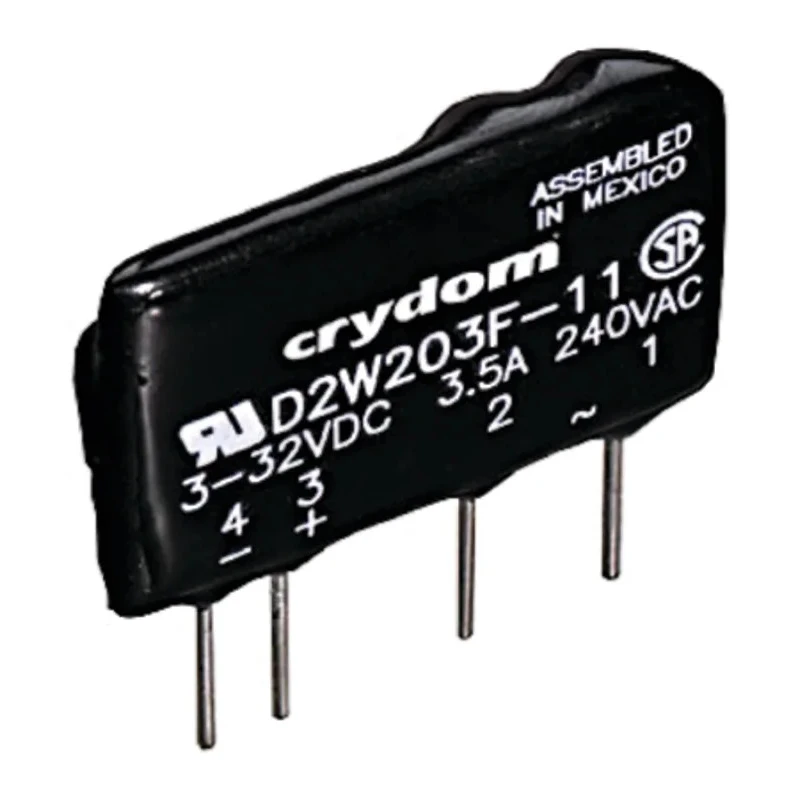

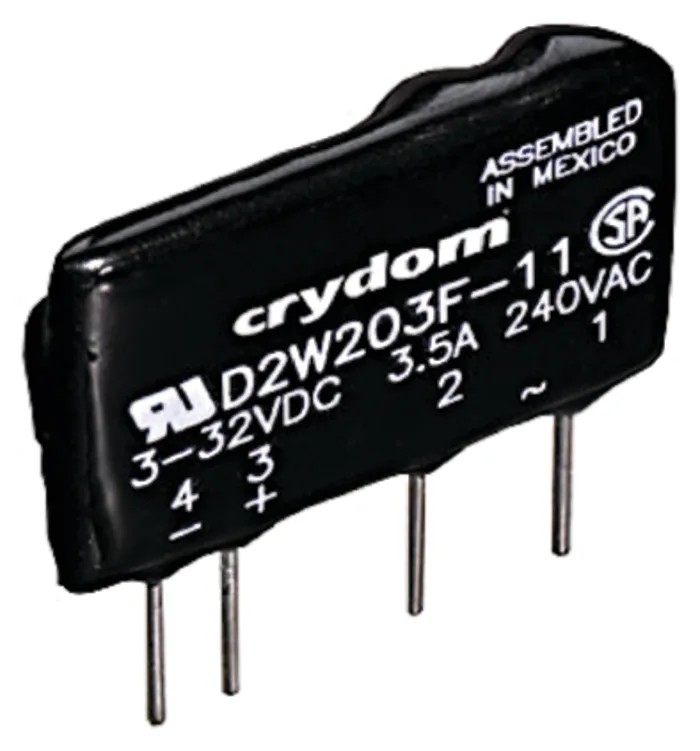

Crydom PCB Mount Solid State Relay 3A Load, 280Vrms Load, 32V dc Control D2W203F

The Crydom D2W203F is a precise, compact Solid State Relay designed for PCB mounting, providing reliable switching capabilities with a maximum load current of 3 Amps and load voltage up to 280Vrms. This relay employs zero cross switching, meaning the output connects only when the AC waveform crosses zero voltage, helping protect sensitive loads such as incandescent bulbs and motor starters from high inrush currents.

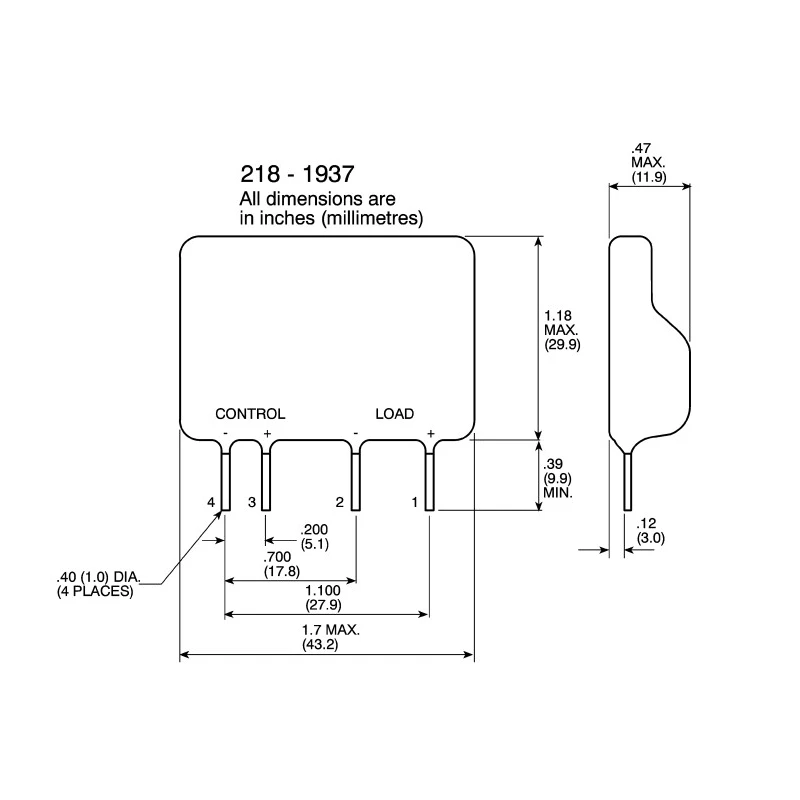

Featuring a triac output and SPST contact configuration, this relay is suited for a range of low-power AC applications including lighting, motor control, and contactor operation. Its SIP-4 package measures 43.2mm by 11.9mm by 29.9mm, making it ideal for installation in compact electronic assemblies.

The device includes an internal snubber network that provides additional protection from electrical faults and surges. The relay is engineered to operate across an extensive temperature range from -30°C to 80°C, allowing dependable use in various industrial environments and extreme conditions.

Low off state leakage current of 8mArms minimizes power consumption during inactive periods. Its solder-type terminals allow a secure and stable connection to printed circuit boards. Manufactured under CE standards in Mexico, it represents a robust choice for reliable automation and control circuit applications.

Supports maximum load voltage of 280Vrms suitable for various AC applications. Features a zero cross switching function to reduce in-rush current and protect delicate components. Operates reliably between -30°C and 80°C, enabling use in harsh environments.

Equipped with an SPST contact configuration and triac output type for efficient switching. Compact SIP-4 package dimensions of 43.2mm length, 11.9mm width, and 29.9mm height. Includes internal snubber network for enhanced fault protection.

Low off state leakage current of 8mArms reduces power losses during off periods. Solder terminal type for secure PCB mounting. Manufactured in Mexico with CE standard compliance.

This Crydom D2W203F Solid State Relay represents an essential component for industrial automation, laboratory equipment, HVAC systems, and manufacturing processes where compact and reliable AC switching solutions are required. Explore similar Solid State Relays and electronic components in the Electronics & Electricals category for comprehensive automation system design at EnvMart.
