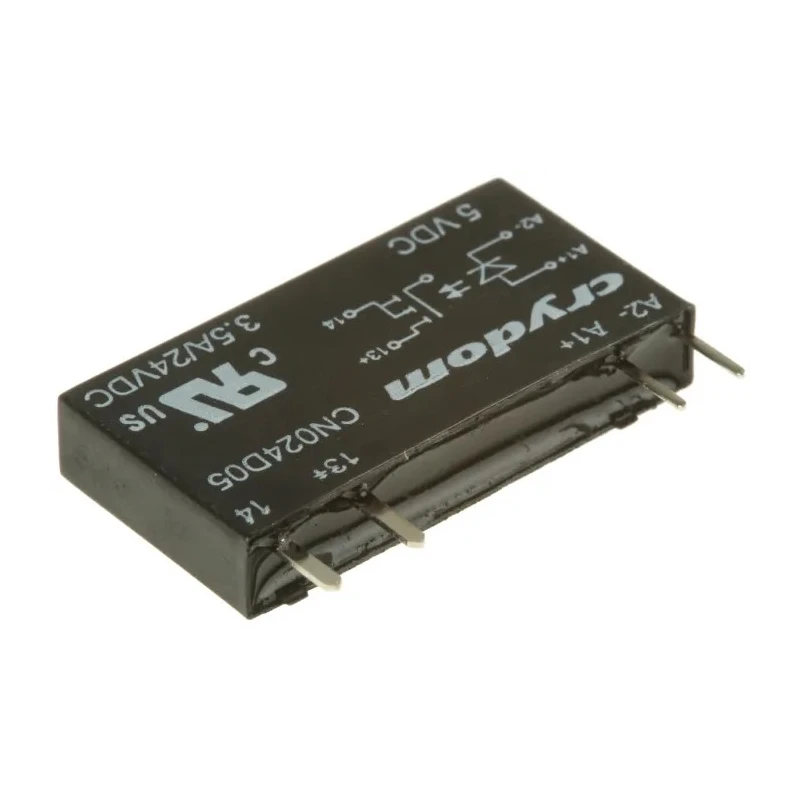

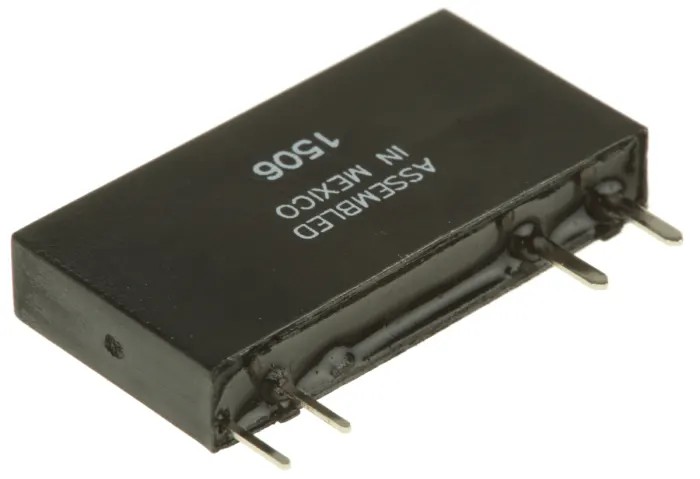

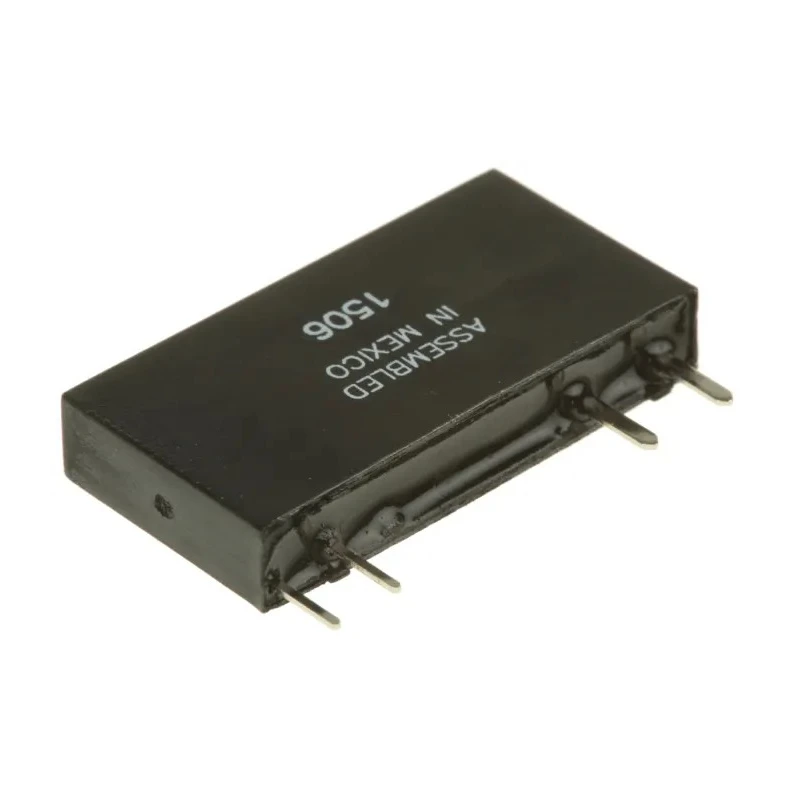

Crydom Solid State Relay PCB Mount 3.5A Load 24V DC Load 12V DC Control CN024D05

Crydom CN024D05 Solid State Relay is a compact, high-performance relay designed for PCB mounting applications requiring a 3.5 Amp maximum load current and 24 V DC load voltage. Its mini SIP-4 form factor with dimensions of 28mm (L) x 5mm (W) x 15mm (H) minimizes PCB footprint, making it ideal for space-constrained industrial and electronic devices.

The relay features through-hole mounting for easy integration and stable connection on standard PCBs. Its zero cross switching technology reduces electrical noise and extends the life of connected components, suitable for sensitive applications such as medical equipment, industrial computers, and measuring instruments.

With a control voltage range from 3 V DC to 12 V DC, the CN024D05 is compatible with a variety of low-power control systems. The MOSFET output ensures reliable and rapid switching with a typical turn-on time of 120 microseconds and turn-off time of 100 microseconds.

Designed for durability, the relay operates efficiently over a wide temperature range from -20°C to +80°C and carries an IP67 ingress protection rating, enabling use in demanding industrial environments where moisture and dust protection is critical.

The off-state leakage current is extremely low at 0.001 mA, promoting energy efficiency and reducing unwanted current drainage when the relay is off. This feature supports precise and safe circuit operation in automation and control systems.

This product complies with cUL, RoHS, CE, and UL safety and environmental standards, ensuring adherence to international regulations.

Package contents include one Crydom CN024D05 solid state relay with full technical specifications and documentation for industrial and laboratory applications. It is suitable for use in electrical, automation, medical, and industrial control systems.

Browse the Electronics & Electricals category for Solid State Relays and related components to find compatible devices and accessories. Compact Mini SIP-4 package with dimensions 28mm length, 5mm width, and 15mm height. Through-hole mounting for secure and reliable PCB installation.

Wide control voltage range from 3V DC to 12V DC. Zero cross switching function to reduce electrical noise. High IP67 rating for protection against dust and water penetration. Low off-state leakage current of 0.001mA enhances circuit safety.

Operating temperature range from -20°C to 80°C for robust performance in harsh environments. MOSFET output type ensures fast and efficient switching. Compliant with standards including cUL, RoHS, CE, and UL.
