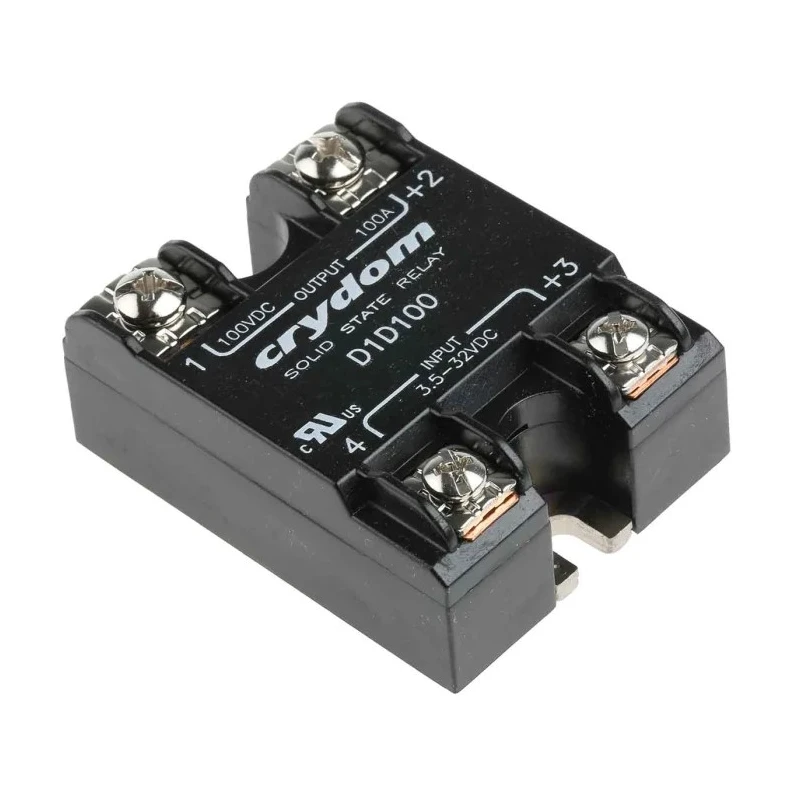

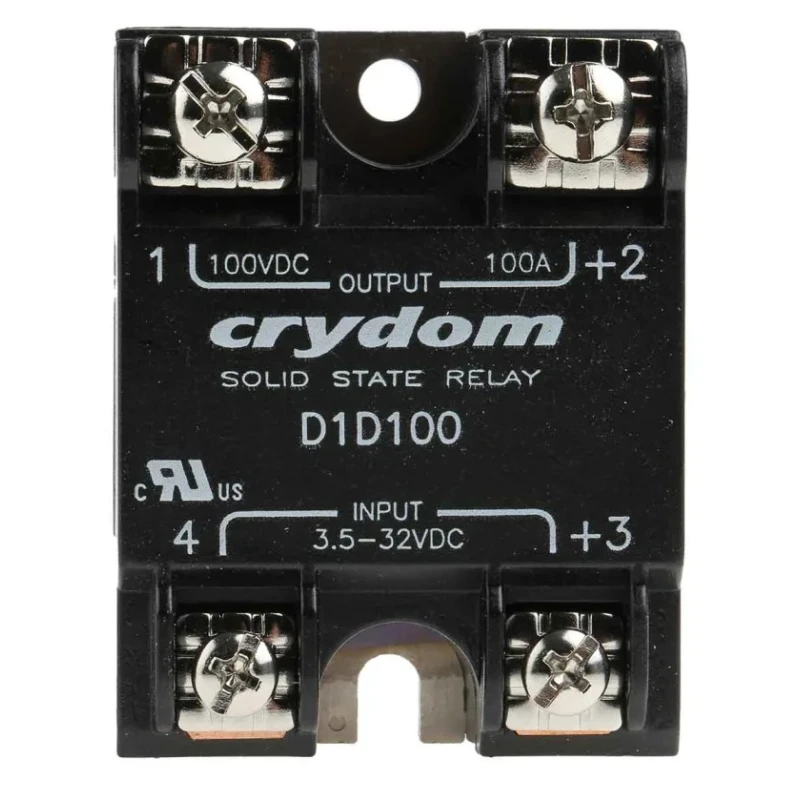

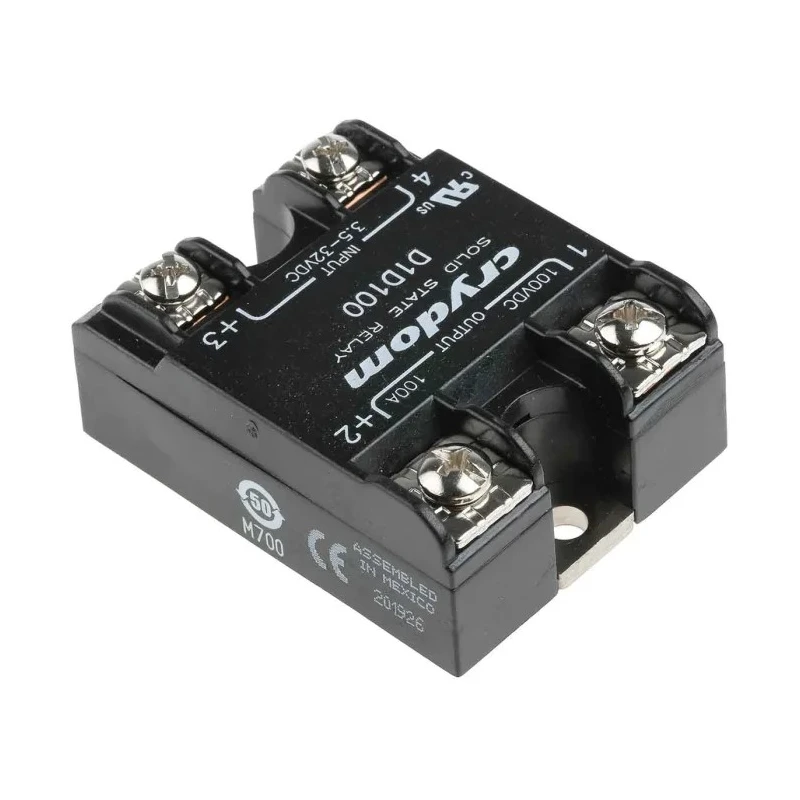

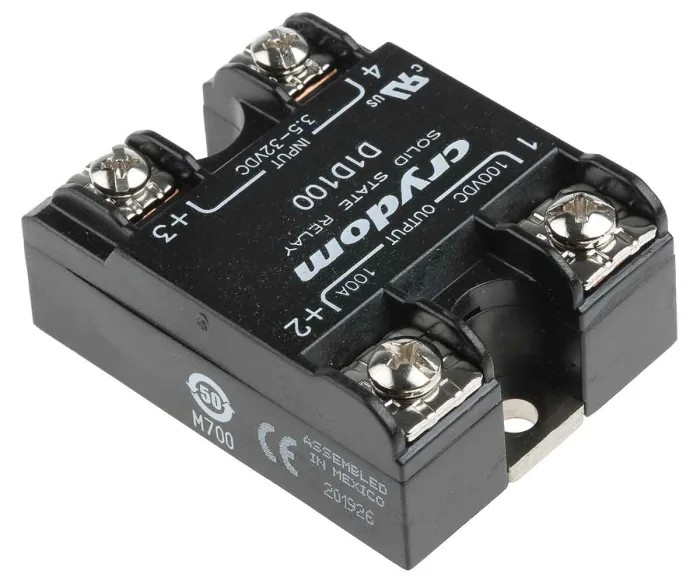

Crydom Solid State Relay 1-DC Series Surface Mount 100 A Load, 100 V Load, 32V Control D1D100

Crydom D1D100 Solid State Relay 1-DC Series Surface Mount with 100 A load current capacity and 100 V maximum load voltage is engineered for precise and durable DC switching applications in industrial and automation systems.

This relay features a screw terminal configuration and a single-pole, single-throw normally open (SPST-NO) contact setup. The device operates efficiently over a wide temperature range from -30°C to 80°C, making it suitable for harsh environmental conditions.

Its compact size allows integration into tight spaces with outer dimensions of 58.4 mm length, 22.6 mm width, and 22.9 mm height. The low on-state resistance of 5 milliohms ensures minimal power loss and heat generation during operation. The MOSFET output type facilitates high-speed switching with a low off-state leakage current of 0.3 mA.

The relay complies with global standards such as CE, UL, RoHS, and EMC, ensuring quality and safety in industrial usage. Its solid aluminum base plate offers resistance against corrosion and impact, thereby contributing to robustness and longevity.

This solid state relay is ideal for use in robotics, data acquisition systems, input/output subsystems, and other industrial automation setups where precise and reliable switching is critical. It supports control voltage between 3.5 V dc and 32 V, turning electrical signals into optical signals before switching high power loads safely and efficiently.

Supports a maximum load current of 100 A. Designed for surface mount installation with screw terminal type. Operating voltage range between 3.5 V dc minimum and 32 V maximum control voltage. Compact dimensions measuring 58.4 mm in length, 22.6 mm width, and 22.9 mm height.

Wide operating temperature range from -30°C to 80°C. Extremely low on-state resistance of 5 milliohms for efficient conduction. Minimal off-state leakage current rated at 0.3 mA. Output utilizes a MOSFET type for solid and fast switching.

Complies with CE, UL, RoHS, and EMC standards. Aluminum base plate resists corrosion and impact. Explore the wide range of industrial Solid State Relays available through EnvMart for quality automation components and applications.
