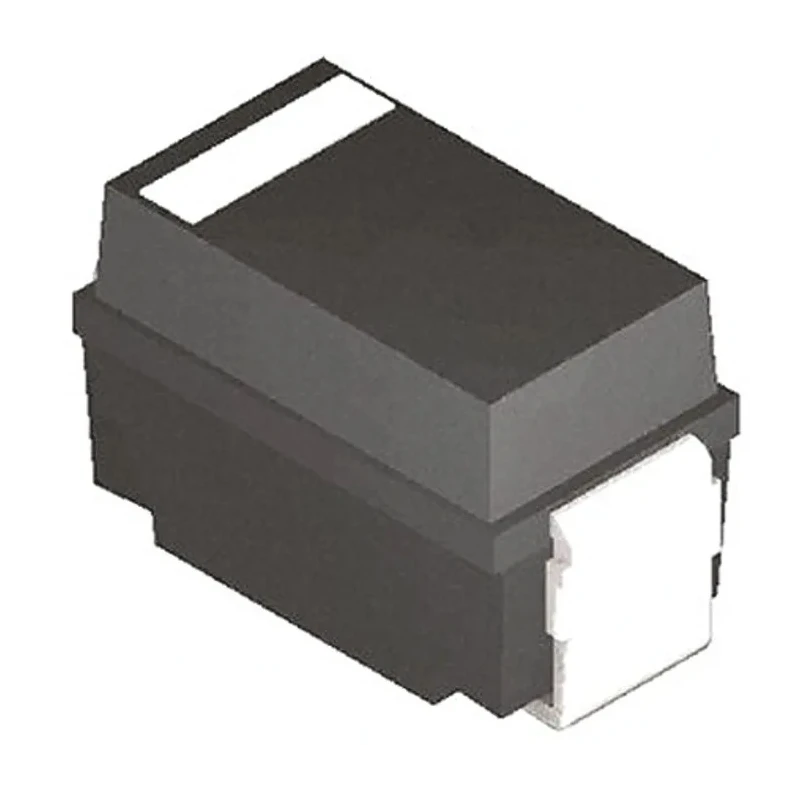

Vishay Schottky Diode 90 V 1.5 A Surface Mount DO-214AC BYS12-90-E3/TR

Vishay BYS12-90-E3/TR Schottky Diode is a high-performance diode designed for applications requiring low forward voltage drop and fast switching. This 90 V, 1.5 A diode features a surface mount DO-214AC package configuration that enables compact design integration on PCBs in electronic circuit assemblies.

It supports continuous forward current up to 1.5 A with a peak repetitive reverse voltage rating of 90 V, making it suitable for rectification tasks in power management, industrial electronics, and automotive systems. The diode's maximum forward voltage of 360 mV contributes to reduced power losses during operation.

The diode operates reliably across a wide temperature range, from -55°C to 150°C, and holds an automotive standard certification of AEC-Q101 to support demanding automotive and industrial applications. The peak non-repetitive forward surge current rating of 40 A allows transient protection under short-duration load conditions.

Compact physical dimensions (length: 4.5 mm, width: 2.79 mm, height: 2.09 mm) facilitate its use in high-density electronic designs requiring robust rectification performance. The two-pin configuration provides a straightforward 1-diode layout in surface mount technology.

Applications include power supplies, automotive power converters, and industrial power rectification where switching speed and efficiency are critical. These diodes by Vishay are engineered for durability and reliability in challenging electrical environments.

This diode features a maximum continuous forward current of 1.5 A. It supports a peak reverse repetitive voltage of 90 V. The forward voltage drop is low at a maximum of 360 mV. Designed for high reliability with an operating temperature range from -55°C to 150°C.

It has a peak non-repetitive forward surge current rating of 40 A. Its compact dimensions are 4.5 mm in length, 2.79 mm in width, and 2.09 mm in height. This diode meets the automotive standard AEC-Q101 for enhanced quality and reliability.

The device has a two-pin single diode configuration in a surface mount package. The typical peak reverse current is 1 mA, ensuring efficiency in power rectification. Made in China, it is designed by Vishay for semiconductor applications requiring fast switching.

For industrial and automotive semiconductor needs, explore the Vishay range of Schottky diodes and rectifiers on EnvMart for reliable high-performance solutions.
