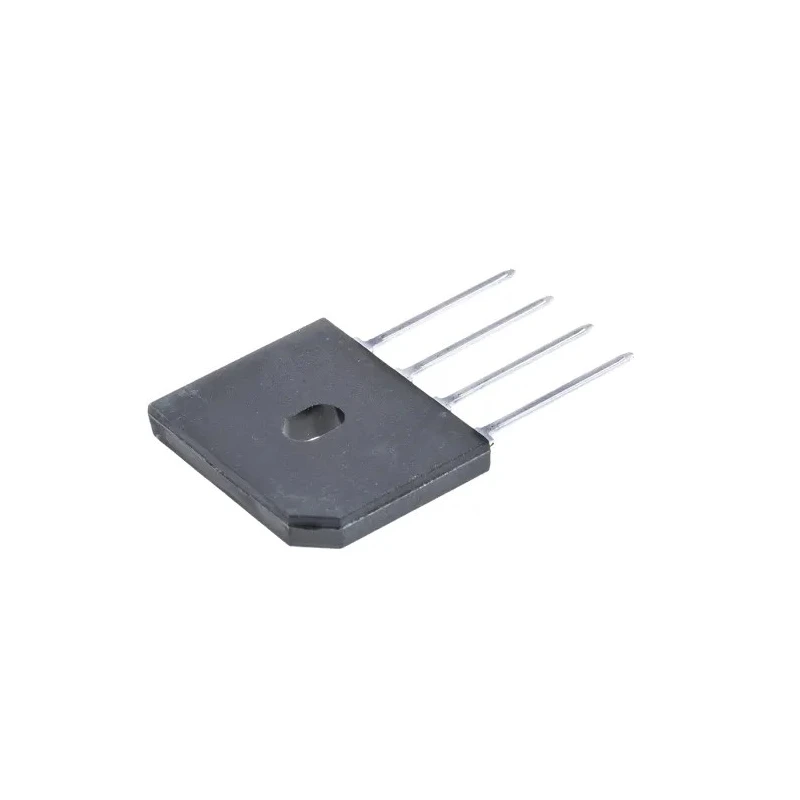

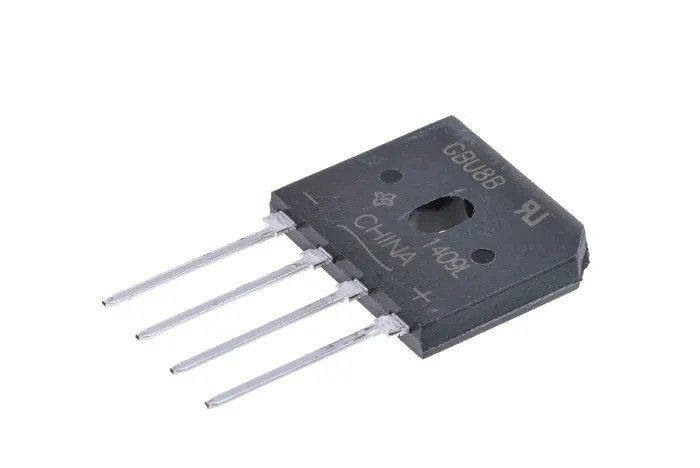

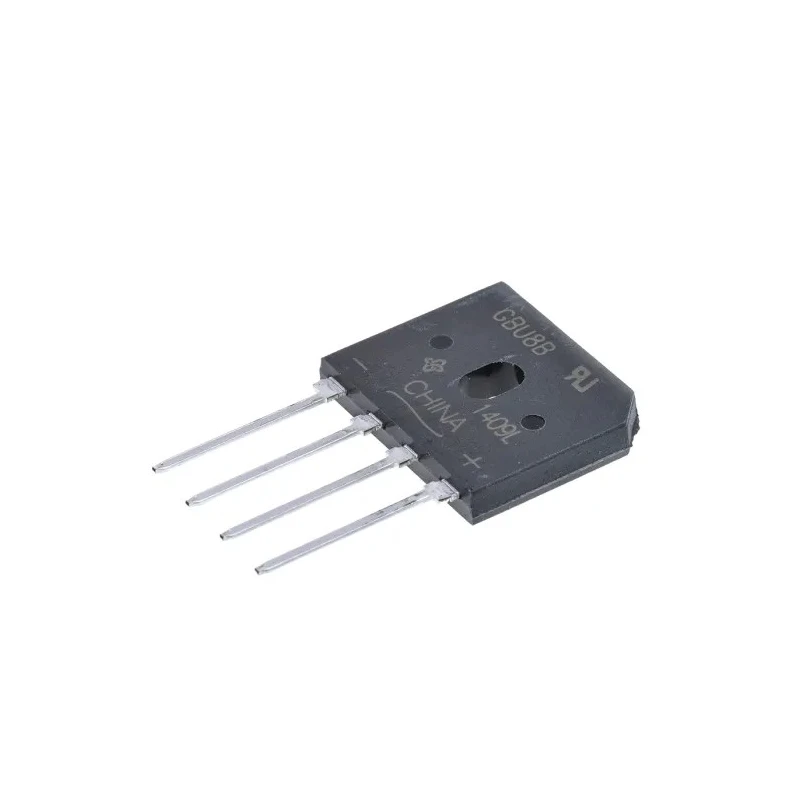

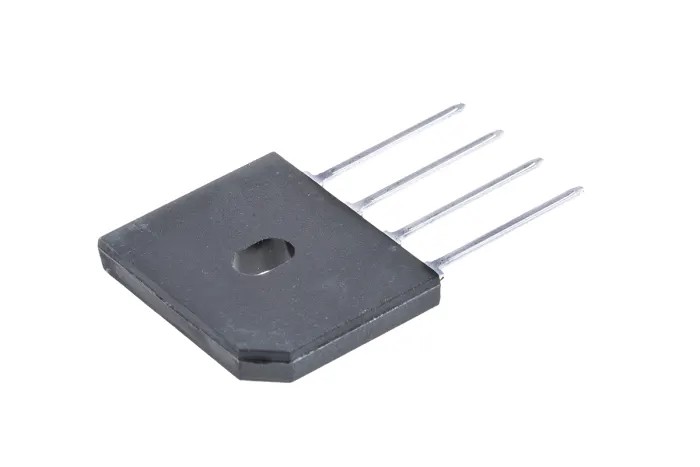

Vishay Bridge Rectifier, 100 V, 200 A, 4-Pin Single, GBU8B-E3/51

The Vishay GBU8B-E3/51 bridge rectifier is a single-phase, 4-pin SIL package semiconductor device designed for electronic circuits requiring effective AC to DC full-wave rectification. It operates at a peak reverse repetitive voltage of 100 V and a forward current rating of 8 A, making it ideal for power supplies and electronic modules that demand reliable, consistent DC output.

This bridge rectifier is designed with a glass passivated junction enhancing its long-term stability and reliability under various electrical stresses. It supports a peak non-repetitive forward surge current of 200 A, ensuring robust performance even during transient overload conditions.

Its physical dimensions, measuring 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width, allow for compact integration on printed circuit boards via through-hole mounting. The rectifier can safely operate across a wide ambient temperature range from -55°C to 150°C, accommodating a broad spectrum of industrial, laboratory, and commercial electronic applications.

The component exhibits a peak forward voltage of 1 V and a very low peak reverse current of 5 μA, which contributes to enhanced efficiency and reduced power loss. While it lacks specific automotive certifications, it provides high case dielectric strength of 1500 Vrms to ensure operational safety and reliability.

Typical use cases include power supplies, industrial control equipment, and general electronic assemblies needing reliable bridge rectification. Its robust design makes it suitable for applications in industrial machines, electronic measurement devices, and laboratory instrumentation.

Offers a peak reverse voltage of 100 V for safe operation. Features a forward current rating of 8 A suitable for varied electronic applications. Designed with glass passivated junctions for durability and long life. Supports high surge current up to 200 A for transient conditions.

Compact SIL package ensures easy PCB through hole mounting. Operates reliably between -55°C to 150°C ambient temperatures. 4-pin single configuration provides stable polarity output polarization. Compact dimensions: 22.3 mm length, 18.8 mm height, and 3.56 mm width.

High case dielectric strength rated at 1500 Vrms for safety and durability. Manufactured in China with no specific automotive approvals. Discover more reliable semiconductor devices like the Vishay GBU8B-E3/51 bridge rectifier at EnvMart for your electronic component sourcing needs.
