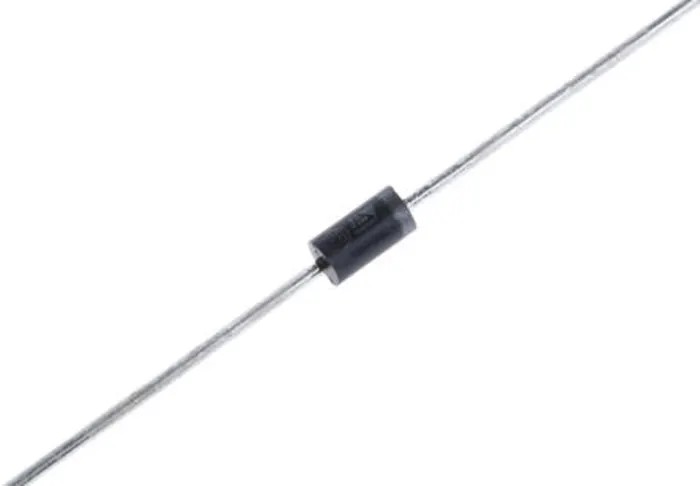

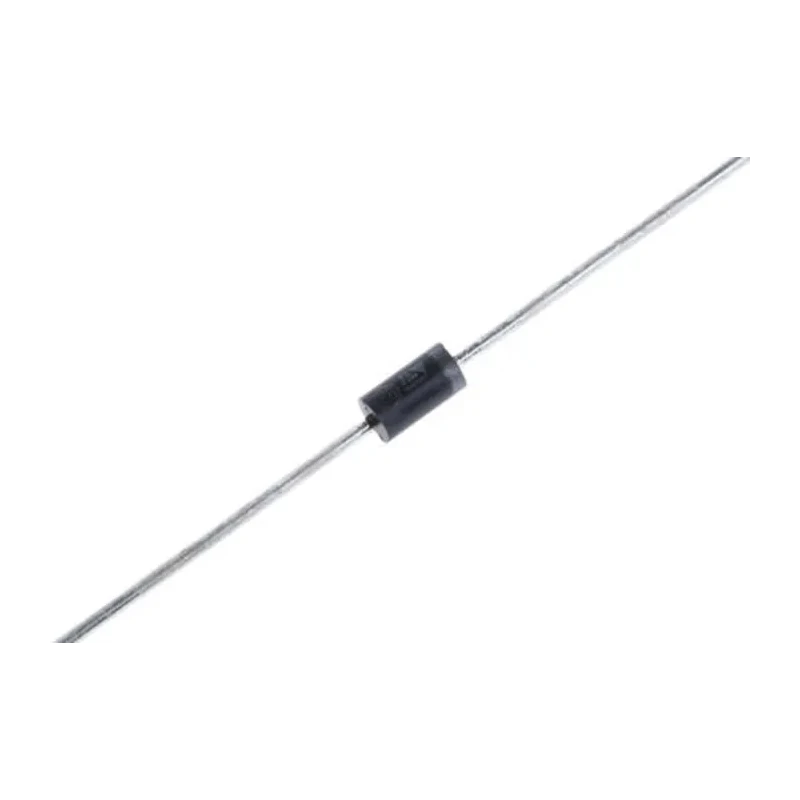

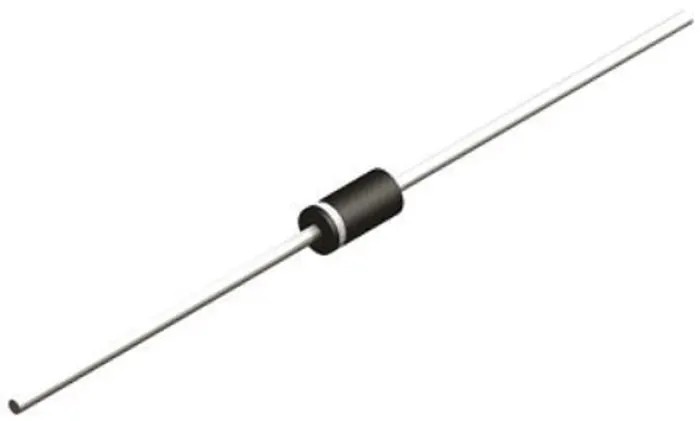

STMicroelectronics Schottky Diode 150 V 1 A 2-Pin DO-41 STPS1150RL
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.71mm |
| Brand | STMicroelectronics |
| Height | 5.2mm |
| Length | 4.6mm |
| Model | STPS1150RL |
| Width | 2.9mm |
| Mount Type | Through Hole |
| Series | STPS1150 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- Maximum continuous forward current rating of 1 ampere.
- Peak reverse repetitive voltage of 150 volts ensures high voltage tolerance.
- Low maximum forward voltage drop of 0.62 volts improves efficiency.
- Wide operating temperature range from -65°C to 175°C for reliable performance.
- Single diode configuration with two pins designed for through-hole mounting.
- Peak non-repetitive forward surge current up to 75 amperes supports transient loads.
- Low peak reverse current of 1 milliampere minimizes leakage losses.
- Ideal for power rectification and switching applications requiring high efficiency.
Product Description
STMicroelectronics STPS1150RL is a high-efficiency Schottky Barrier Diode designed with a 2-pin DO-41 package for through-hole mounting applications. It is rated for a maximum continuous forward current of 1 ampere and can block reverse voltages up to 150 volts, ensuring reliable operation in diverse electronic circuits.
This diode exhibits a low forward voltage drop of 0.62 volts, enhancing power efficiency and reducing heat dissipation in power rectification tasks. Its robust construction enables operation over a broad temperature range, from -65°C to 175°C, making it suitable for demanding industrial and commercial electronics environments.
The compact dimensions - length 4.6 mm, diameter 2.71 mm, width 2.9 mm, and height 5.2 mm - allow easy integration on circuit boards where space is limited. The diode configuration is single and the device features two pins for secure through-hole mounting, facilitating installation and maintenance.
Its peak non-repetitive forward surge current capability of 75 amperes makes it resilient against transient load conditions. Additionally, the low peak reverse current leakage of 1 milliampere improves overall circuit performance by minimizing unwanted current flow.
Maximum continuous forward current of 1 A for reliable current conduction. Peak reverse repetitive voltage of 150 V suitable for medium voltage applications. Low forward voltage drop of 0.62 V reduces energy losses. Wide ambient operating range from -65°C to 175°C ensures durability.
Compact DO-41 package with precise mechanical dimensions. Single diode with 2-pin through-hole mount design. Robust peak surge current rating of 75 A for transient protection. Minimal peak reverse current leakage of 1 mA for enhanced efficiency.
Commonly used in power supply, rectification, and switching circuits, this STMicroelectronics Schottky diode is engineered for industrial, commercial, and laboratory electronics applications requiring reliable, efficient diode performance. Its new condition guarantees factory quality and consistency.
Explore more industrial semiconductor components and Schottky diodes on EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 1 ampere.
It has a peak reverse repetitive voltage of 150 volts, making it suitable for medium voltage applications.
The maximum forward voltage drop is 0.62 volts, which helps improve efficiency in power rectification tasks.
This diode operates over a wide temperature range from -65°C to 175°C, ensuring reliable performance in various environments.
It comes in a DO-41 package type and features a single diode configuration with two pins designed for through-hole mounting.
The peak non-repetitive forward surge current rating is 75 amperes, allowing it to handle transient loads effectively.
The peak reverse current leakage is 1 milliampere, which minimizes leakage losses in the circuit.
The dimensions are as follows: length 4.6 mm, diameter 2.71 mm, width 2.9 mm, and height 5.2 mm.
It is commonly used in power supply, rectification, and switching circuits, suitable for industrial, commercial, and laboratory electronics.
The country of origin for this diode is India.
The low forward voltage drop of 0.62 volts reduces energy losses and heat dissipation, enhancing overall circuit efficiency.
This model is a Schottky diode, known for its efficiency in power rectification and switching applications.
