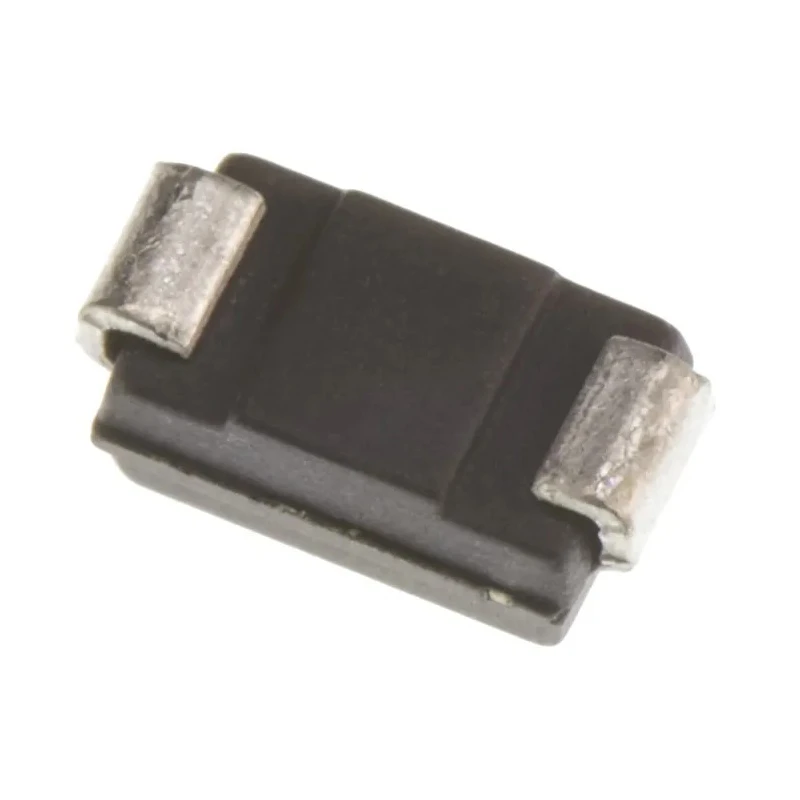

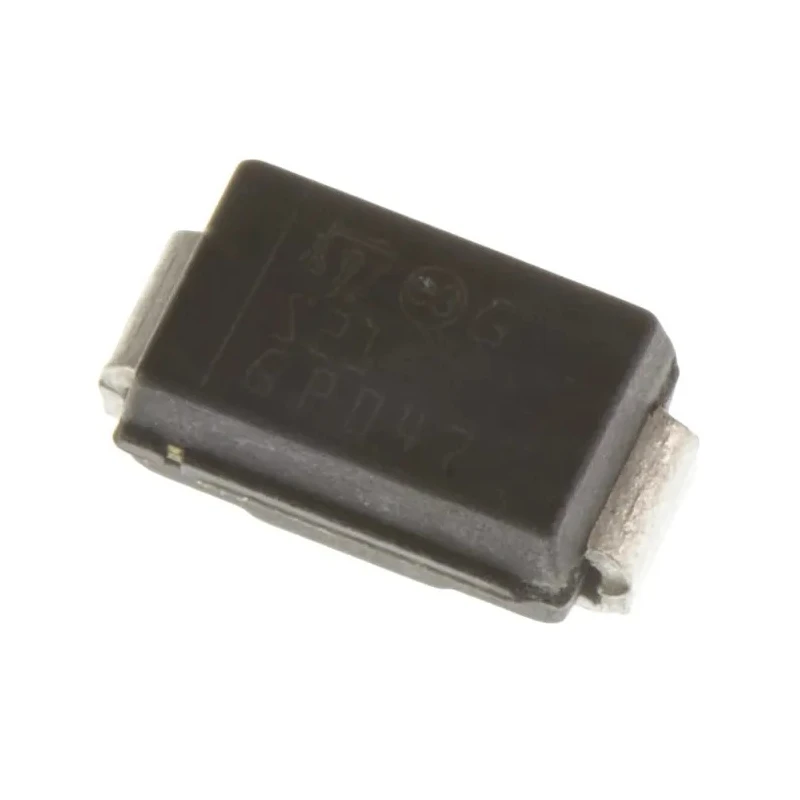

STMicroelectronics Schottky Diode 100 V 2 A Surface Mount DO-214AC Package STPS2H100A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.03mm |
| Length | 4.6mm |
| Model | STPS2H100A |
| Width | 2.95mm |
| Mount Type | Surface |
| Series | STPS2H100 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 650mV |
Key Features
- Maximum continuous forward current of 2 A ensures reliable conduction.
- Peak reverse repetitive voltage rating of 100 V provides robust blocking capability.
- Low forward voltage of 650 mV minimizes power loss.
- Compact DO-214AC package type facilitates efficient surface mount assembly.
- Operating temperature range from -65°C to 175°C for harsh environments.
- Peak non-repetitive forward surge current capacity of 75 A supports transient loads.
- Minimal reverse leakage current at 1 μA enhances efficiency.
- Single diode configuration suitable for rectification and freewheeling applications.
Product Description
STMicroelectronics STPS2H100A Schottky Diode is a surface mount semiconductor component featuring a DO-214AC package designed for power rectification applications.
This diode delivers a maximum continuous forward current of 2 A, combined with a peak reverse repetitive voltage of 100 V, making it suitable for a variety of electronic power circuits requiring efficient rectification and low forward voltage drop.
Its forward voltage of 650 mV ensures minimal conduction losses, improving overall circuit efficiency, while the peak non-repetitive forward surge current of 75 A allows it to handle transient surges effectively.
Operating reliably within a wide temperature range (-65°C to 175°C), the STPS2H100A diode is engineered for industrial, automotive, and high-reliability electronic environments. The physical dimensions of 4.6 mm length, 2.95 mm width, and 2.03 mm height make this an ideal choice for compact PCB designs where space efficiency is critical.
This single diode device utilizes a Schottky barrier design to minimize forward voltage losses compared to standard diodes, optimizing power conversion efficiency in power supplies, switching regulators, and freewheeling circuits.
Maximum continuous forward current of 2 A ensures reliable conduction. Peak reverse repetitive voltage rating of 100 V provides robust blocking capability. Low forward voltage of 650 mV minimizes power loss. Compact DO-214AC package type facilitates efficient surface mount assembly.
Operating temperature range from -65°C to 175°C for harsh environments. Peak non-repetitive forward surge current capacity of 75 A supports transient loads. Minimal reverse leakage current at 1 μA enhances efficiency. Single diode configuration suitable for rectification and freewheeling applications.
Device length 4.6 mm, width 2.95 mm, and height 2.03 mm for space-efficient PCB layouts. Ideal for industrial, automotive, and consumer electronics, this diode is a key component in power management and electronic design applications.
Explore more Schottky diodes and electronic components from STMicroelectronics on EnvMart to optimize your electronic designs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A, ensuring reliable conduction in various applications.
The forward voltage of this unit is 650 mV, which minimizes power loss during operation.
The dimensions of this diode are 4.6 mm in length, 2.95 mm in width, and 2.03 mm in height, making it compact for PCB designs.
It can handle a peak non-repetitive forward surge current of 75 A, which supports transient loads effectively.
This model uses a surface mount type, facilitating efficient assembly on PCBs.
It utilizes a single diode configuration, making it suitable for rectification and freewheeling applications.
This diode is part of the STPS2H100 series, which is designed for power rectification applications.
The country of origin for this model is India.
This diode is suitable for industrial, automotive, and consumer electronics applications, particularly in power management and electronic design.
