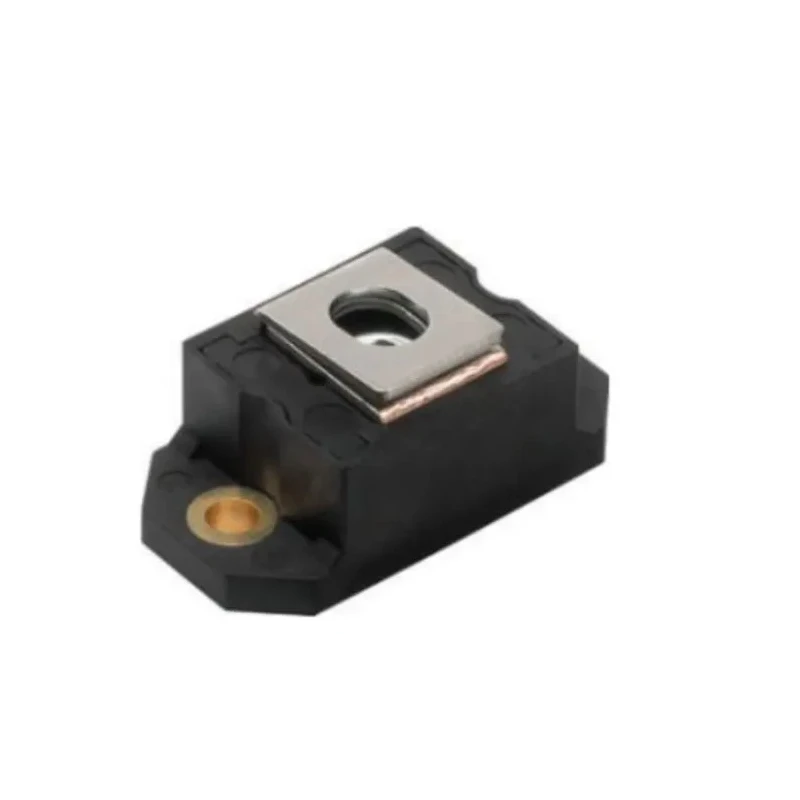

Vishay 100 V 120 A Schottky Diode 2-Pin D-67 Panel Mount VS-123NQ100PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15.11mm |
| Length | 39.62mm |
| Model | VS-123NQ100PBF |
| Width | 19.69mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | D-67 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 12.8kA |
| Maximum Forward Voltage Vf | 1.26V |
Key Features
- Offers low forward voltage drop ensuring efficient conductivity.
- Features fast switching action suitable for high frequency applications.
- Supports maximum continuous forward current of 120 A.
- Peak reverse repetitive voltage is rated at 100 V.
- Operates reliably between -55°C to 175°C temperature range.
- Designed as single diode configuration for Schottky rectifier applications.
- Peak non-repetitive forward surge current capability is 12.8 kA.
- Maximum forward voltage drop of 1.26 V minimizes power loss.
Product Description
Vishay VS-123NQ100PBF is a high quality Schottky diode designed for electronic components requiring fast switching and low power loss. This diode comes in a 2-pin D-67 panel mount package and supports a maximum continuous forward current of 120 A and a peak reverse repetitive voltage of 100 V.
Schottky diodes from Vishay Semiconductor are known for their very low forward voltage drop and rapid switching speeds, making them ideal for power electronics, industrial automation, power supplies, automotive electronics, and HVAC systems where efficiency and thermal performance are critical.
The device operates reliably in a broad temperature range from -55°C minimum to 175°C maximum, allowing for use in demanding environmental conditions. Its compact dimensions of 39.62 mm length, 19.69 mm width, and 15.11 mm height simplify integration into tight spaces.
Key technical features include a peak non-repetitive forward surge current rating of 12.8 kA and a maximum forward voltage of 1.26 V. The diode configuration is single with 2 pins, designed for panel mounting in various electronic assemblies.
Vishay Schottky diodes enhance power conversion efficiency while reducing thermal losses, making them suitable for applications in industrial manufacturing, power management, and electrical component assemblies.
Offers low forward voltage drop ensuring efficient conductivity. Features fast switching action suitable for high frequency applications. Supports maximum continuous forward current of 120 A. Peak reverse repetitive voltage is rated at 100 V.
Operates reliably between -55°C to 175°C temperature range. Compact dimensions: 39.62mm length, 19.69mm width, and 15.11mm height. Designed as single diode configuration for Schottky rectifier applications. Peak non-repetitive forward surge current capability is 12.8 kA.
Maximum forward voltage drop of 1.26 V minimizes power loss. Pin count of 2 pins with panel mount configuration. Explore the Vishay product range on EnvMart for advanced semiconductor components optimized for high power and fast switching electronic designs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 120 A.
The peak reverse repetitive voltage is rated at 100 V.
It operates reliably between -55°C to 175°C.
The diode has dimensions of 39.62 mm in length, 19.69 mm in width, and 15.11 mm in height.
This model is designed for panel mounting with a D-67 package type.
The maximum forward voltage drop is 1.26 V, which helps minimize power loss.
The peak non-repetitive forward surge current capability is 12.8 kA.
This diode has a pin count of 2 pins.
It is designed as a single diode configuration for Schottky rectifier applications.
The peak reverse current is rated at 3 mA.
It is suitable for power electronics, industrial automation, power supplies, automotive electronics, and HVAC systems.
The country of origin for this diode is India.
