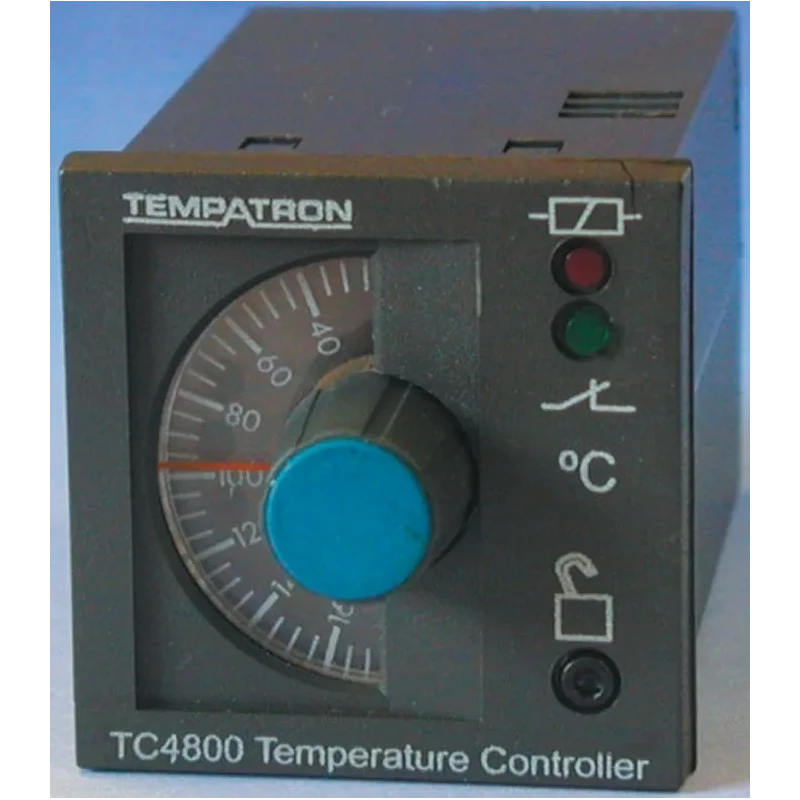

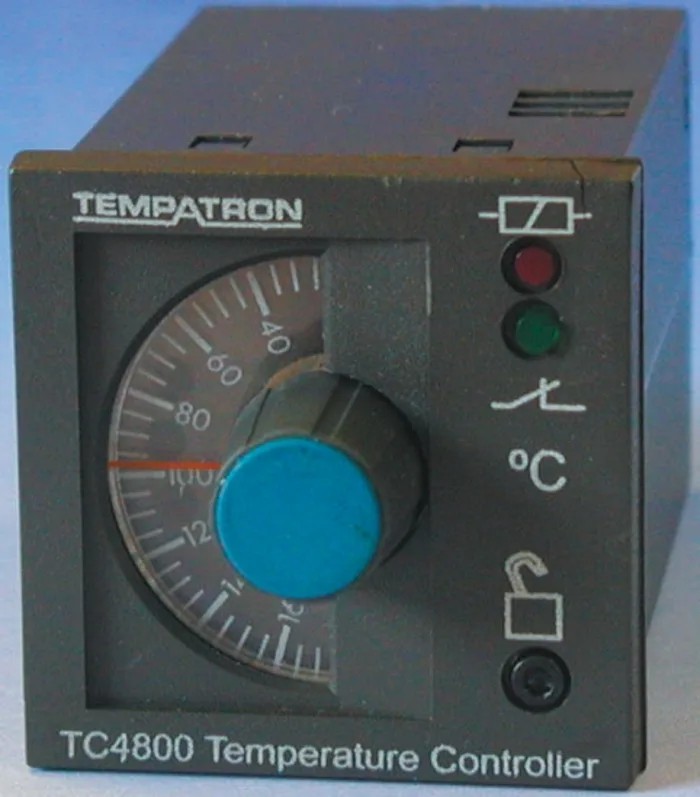

Tempatron V7453 Panel On-Off Temperature Controller, 1 Output Relay 24V AC TC4830-01-110/230VAC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | LED |
| Brand | Tempatron |
| Length | 73mm |
| Model | TC4830-01-110/230VAC |
| IP Rating | IP40 |
| Width | 48mm |
| Mount Type | Panel |
| Output type | Relay |
| Series | V7453 |
| Input Type | K Type Thermocouple |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 5A |
| Number of outputs | 1 |
| Terminal type | Screw |
| Maximum Voltage | 240V |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 24V ac |
| Panel Depth | 91mm |
| Series 2 | On-Off & PD Temperature Controller |
Key Features
- Operates with an input from K Type thermocouple sensors for accurate temperature measurement.
- Supports a maximum current of 5A suitable for diverse industrial applications.
- Designed for panel mounting with LED display indicator for clear status and supply information.
- Operates efficiently within a temperature range from -10°C to 50°C.
- Compact dimensions of 48mm width, 73mm length, and 91mm panel depth ensure space-saving installation.
- Compliant with CE standards and rated for IP40 protection level.
- Operates with an auxiliary power supply of 110/230 V AC, allowing versatile voltage compatibility.
- Equipped with a screw terminal type for secure and reliable wiring connections.
Product Description
Tempatron TC4830-01-110/230VAC Panel On-Off Temperature Controller is a precision device designed for controlling temperatures in industrial and commercial environments. It features a single output relay energized by a 24V AC supply, making it suitable for process control applications requiring an on/off temperature regulation mechanism.
The controller accepts inputs from K Type thermocouples, providing reliable and accurate temperature sensing capabilities. With a maximum current rating of 5A, it can handle a variety of relay-driven loads.
Its construction is rugged and suitable for panel mounting, utilizing a screw terminal interface for strong and stable electrical connections. The LED display clearly indicates both operational status and supply presence, aiding in quick diagnostics and monitoring.
Operating within a broad ambient temperature range of -10°C to 50°C, this controller is suitable for diverse climates and industrial settings. The device is compact with dimensions approximately 48mm in width, 73mm in length, and a panel depth of 91mm ensuring a slim profile installation in control panels.
The product is CE certified and designed with an IP40 protection rating, protecting it against solid objects larger than 1mm while maintaining functionality in typical indoor environments.
Power supply options are flexible with support for 110/230V AC at maximum voltage up to 240V, enhancing adaptability across regions and industrial setups. Operates with K Type thermocouple input for accurate temperature readings.
Single output relay with 24V AC auxiliary power supply. Maximum load current capacity of 5A. LED display for supply and status indication. Panel mount with screw terminals and robust build. Ambient operating temperature range from -10°C to 50°C.
Compact unit dimensions supporting space-efficient installation. IP40 rating and CE standard compliance.
This temperature controller is ideal for industrial, manufacturing, HVAC, process control and laboratory applications where precise on/off temperature control is necessary. Its reliable relay output and compliance with international standards make it an excellent choice for rigorous environmental conditions.
Explore more Temperature Controllers and automation control gear in the EnvMart catalog for expansive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently within a temperature range from -10°C to 50°C.
It accepts inputs from K Type thermocouples, providing reliable and accurate temperature sensing capabilities.
The maximum current rating is 5A, suitable for various relay-driven loads.
The compact dimensions are approximately 48mm in width, 73mm in length, and 91mm in panel depth.
It features an LED display that clearly indicates both operational status and supply presence.
It operates with an auxiliary power supply of 110/230V AC, allowing for versatile voltage compatibility.
The output type is a relay, energized by a 24V AC supply.
Yes, it is CE certified and designed with an IP40 protection rating.
It utilizes a screw terminal type for secure and reliable wiring connections.
It is suitable for industrial, manufacturing, HVAC, process control, and laboratory applications requiring precise on/off temperature control.
The country of origin is the United Kingdom.
This model has a single output relay.
