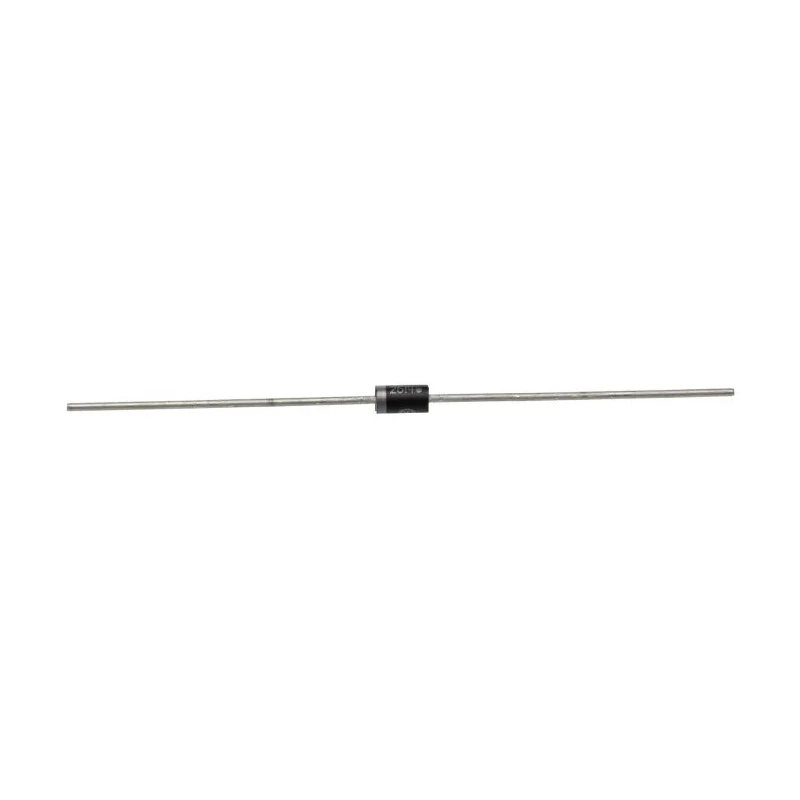

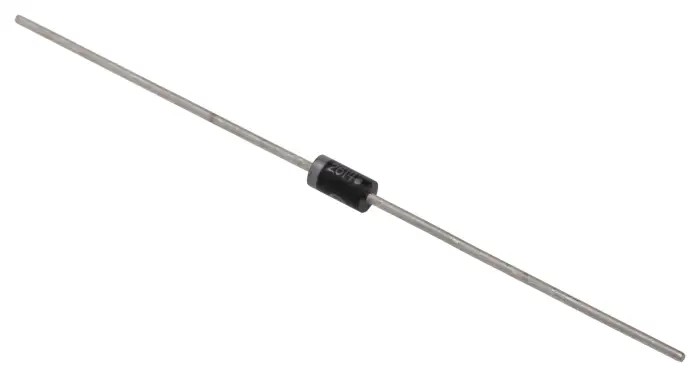

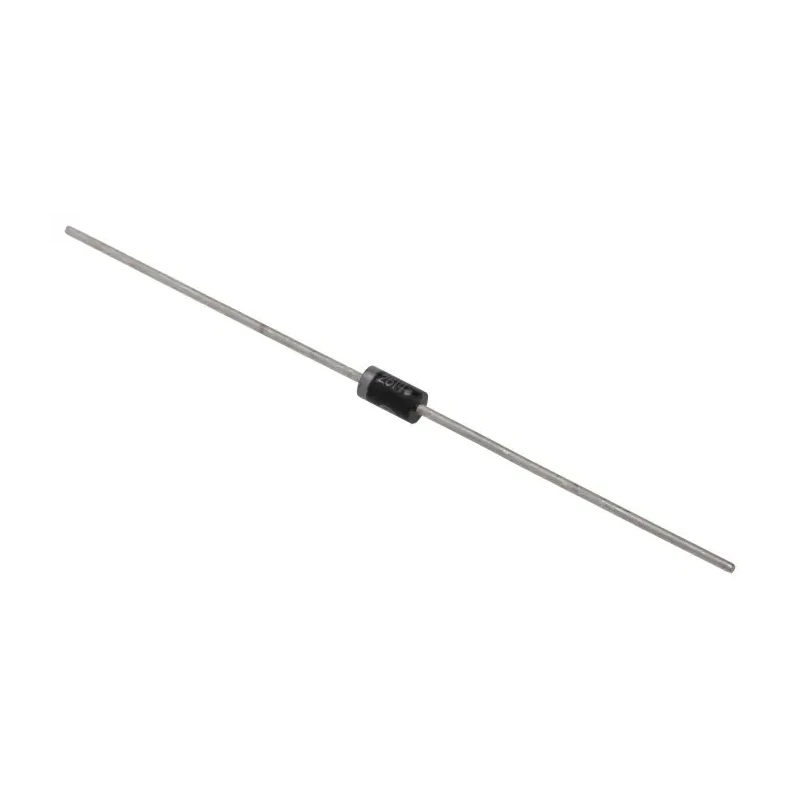

onsemi 60 V 1 A Schottky Rectifier Diode Through Hole DO-41 Package MBR160G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 60 V 1 A Schottky Rectifier Diode Through Hole DO-41 Package MBR160G

Name: onsemi 60 V 1 A Schottky Rectifier Diode Through Hole DO-41 Package MBR160G
Brand: onsemi
SKU: 101843
Price: 0.17 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	2.7mm
Brand	onsemi
Height	5.2mm
Model	MBR160G
Finish	All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Gross Weight	0.4 gram (approximately)
Mount Type	Through Hole
Series	MBR160
Maximum Operating Temperature	150°C
Case	Epoxy, Molded
Package Type	DO-41
Minimum Operating Temperature	-65°C
Polarity	Cathode Indicated by Polarity Band
Marking	B150, B160
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	5mA
Peak Non-Repetitive Forward Surge Current Ifsm	25A
Maximum Forward Voltage Vf	1.08V
Lead Surface Temperature for Soldering Purposes	260 °C Max. for 10 Seconds

Key Features

The diode features low reverse current and low stored charge for high efficiency.
It has a maximum continuous forward current of 1 A.
Peak repetitive reverse voltage rating is 60 V for reliable operation.
The package type is DO-41 with epoxy molded case and corrosion-resistant finish.
It supports a wide operating temperature range from -65°C to 150°C.
The cathode is indicated by a polarity band for correct installation.
Its maximum forward voltage drop is 1.08 V, minimizing power loss.
Peak non-repetitive forward surge current is rated at 25 A.

Product Description

onsemi MBR160G is a high-performance 60 V 1 A Schottky rectifier diode housed in a through-hole DO-41 package. It employs the Schottky Barrier principle with a large-area metal-to-silicon construction, featuring epitaxial design, oxide passivation, and metal overlap contacts ensuring stable, reliable operation.

This diode is ideal for use as a rectifier in low-voltage, high-frequency inverters, free-wheeling diodes, and polarity protection applications where low forward voltage and high efficiency are critical.

Operating temperature ranges from -65°C to 150°C enable deployment in harsh industrial and electronic environments. The molded epoxy case provides durability and corrosion resistance, while the cathode marking ensures correct polarity installation.

With a maximum continuous forward current of 1 A and peak repetitive reverse voltage of 60 V, the MBR160G delivers robust performance. Its low reverse current and stored charge minimize power losses, improving overall circuit efficiency.

Low reverse current and majority carrier conduction reduce power dissipation. Epoxy molded case with corrosion-resistant finish enhances durability. Terminal leads support soldering at temperatures up to 260 °C for 10 seconds.

Markings include B150 and B160 for easy identification. Lead-free and compliant with environmental standards.

Suitable for use in industrial electronics, power supplies, telecommunications, automotive circuits, and other commercial applications. Its through-hole package allows easy integration in prototype boards and repair scenarios.
