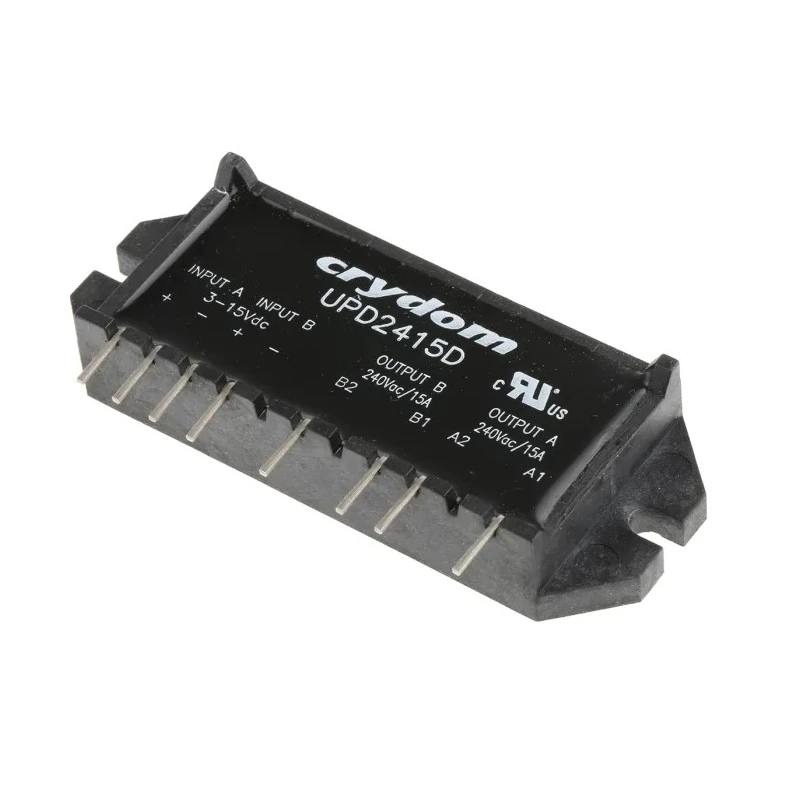

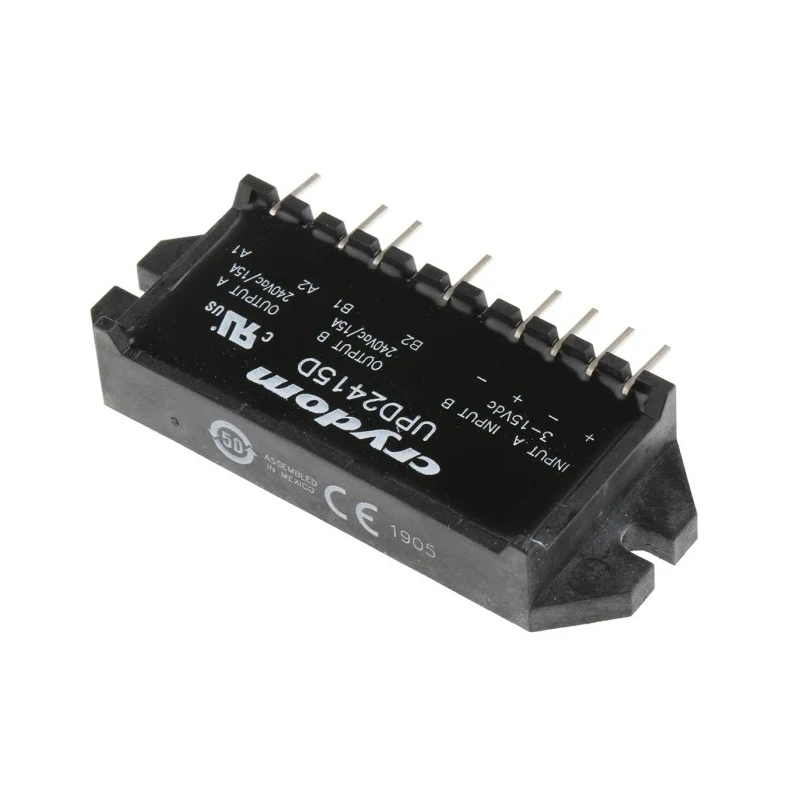

Crydom UPD24D Series Solid State Relay, 15 A Load, PCB Mount, 280 Vrms Load, 15V DC Control UPD24D

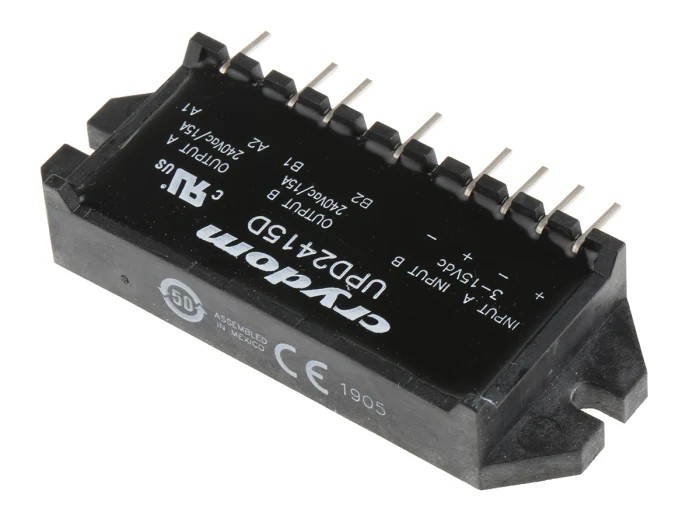

Crydom UPD24D Series Solid State Relay UPD24D is a highly reliable PCB mount SSR designed for industrial and commercial use, capable of switching AC load currents up to 15 A at voltage levels up to 280 Vrms.

This dual channel SSR features two relays in a single SIP-8 package, each with independent control inputs. The device utilizes SCR outputs to efficiently handle heavy industrial loads and supports zero cross switching to minimize electrical noise and improve switching performance. It includes through-hole terminals for secure mounting on printed circuit boards.

The UPD24D operates reliably within a temperature range from -40°C to +80°C, making it suitable for various challenging environmental conditions. It exhibits very low off-state leakage current of 0.1 mArms and a capacitance of 8 pF, supporting energy-efficient operations.

The compact dimensions (29 mm height, 78.4 mm length, and 0.5 inch width) enable easy integration into control panels and other compact electrical assemblies. The product complies with RoHS standards, ensuring environmentally responsible manufacturing processes.

Applications include industrial automation, laboratory equipment, HVAC systems, and manufacturing process controls requiring precise and reliable relay switching. This solid state relay supports a maximum load current of 15 amperes.

Its mount type is designed specifically for PCB installation with through-hole terminals. The relay features zero cross switching for efficient load control and SCR output type for heavy industrial loads. The operating temperature range spans from -40°C to +80°C, suitable for varied environmental conditions.

Complies with RoHS standards ensuring environmentally safe manufacturing. The compact SIP-8 package measures 29 mm in height and 78.4 mm in length, with a width of 0.5 inches. Capacitance of the device is 8 pF with a low off-state leakage current of 0.1 mArms improving energy efficiency.

Dual channel design allows independent control inputs within a single package. Explore our complete range of industrial Solid State Relays at EnvMart for high-quality, reliable electrical switching solutions.
