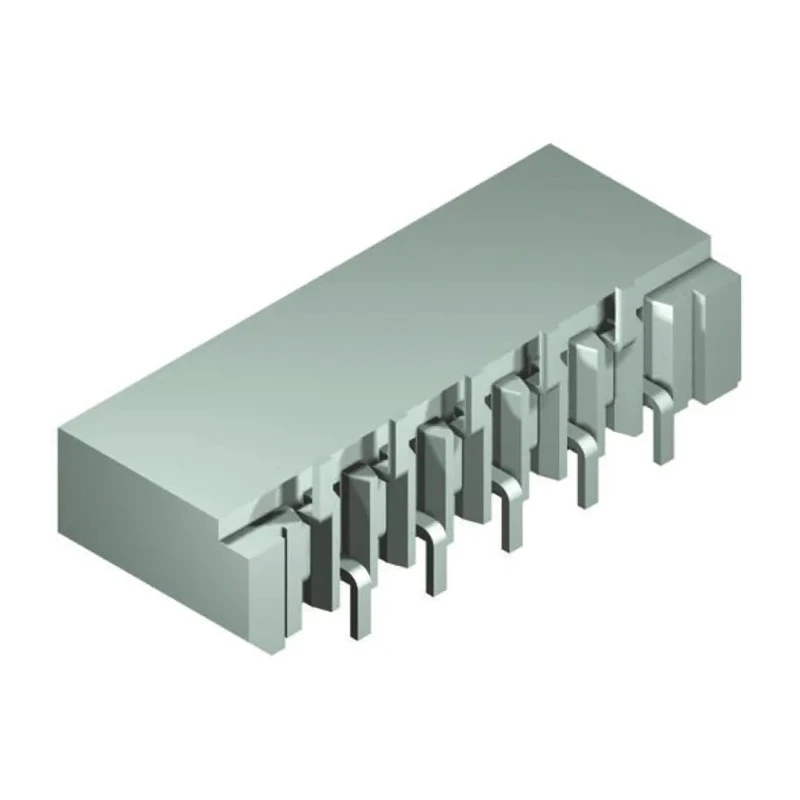

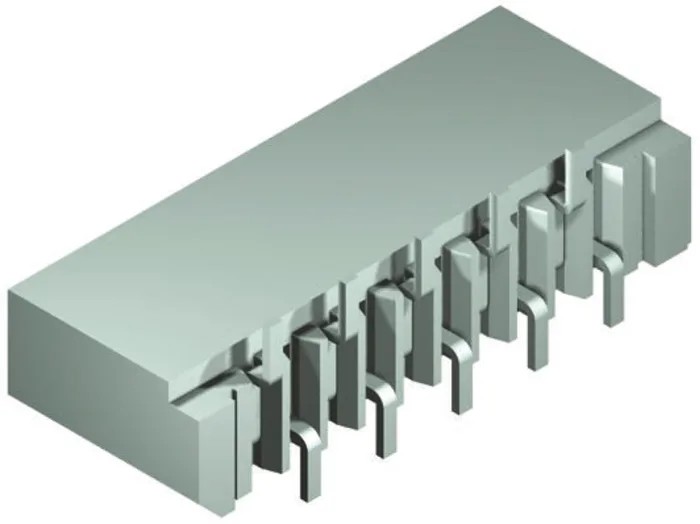

Molex 1 mm Pitch 12 Way Straight Female FPC Connector, Solder Termination 52808-1270
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polysulfone |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- The connector features a 1.00 mm pitch and 12 contacts for precise connectivity.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for enhanced conductivity and corrosion resistance.
- Surface mount type with straight orientation suitable for space-constrained PCB layouts.
- Non-ZIF insertion force with locking mechanism ensures secure and stable cable retention.
- Designed to operate reliably in temperature ranges from -20°C to 80°C.
- The housing material is high-quality polysulfone, providing durability and stability.
- Rated for 125 V AC voltage and 500 mA current, ideal for data and signal transmission.
- Compact and movable contacts design maintains secure electrical contact even under mechanical movement.
Product Description
Molex 52808-1270 is a 12 way straight female FPC connector with a 1 mm pitch featuring solder termination and a surface mount design. This product combines a space-saving form factor with reliable electrical performance, designed to interface with flat flex cables in high-density electronic assemblies.
The phosphor bronze contact material is plated with tin bismuth over nickel, providing excellent conductivity and protection against corrosion. The connector supports up to 500 mA current and 125 V AC voltage, suitable for low power signal and data interconnections.
Its housing is manufactured from polysulfone, a durable thermoplastic ensuring mechanical strength and stability in various industrial environments. The connector features a non-ZIF insertion force and locking mechanism, securing the cable firmly for stable operation over a temperature range of -20°C to 80°C.
The design includes movable contacts that retain electrical connection even when the cable is moved, complemented by a chamfered housing to ensure correct cable orientation and facilitate assembly processes. The staggered contact layout simplifies soldering during PCB assembly.
This FPC connector is widely used in automotive navigation and audio systems, digital cameras, home security devices, tablet and notebook PCs, patient monitors, GPS units, smartphones, and other mobile devices requiring compact and reliable flat flex interconnection.
The connector offers a space-saving design ideal for compact electronics. Chamfered housing ensures correct orientation of the FPC cable. Movable contacts provide secure contact retention and electrical reliability. Staggered contact design facilitates easier soldering on PCB.
Rated for 12 contacts with phosphor bronze contact material and tin bismuth plating. Suitable for a wide range of applications in automotive, consumer, medical, and mobile industries. Operating temperature range from -20°C to 80°C.
Voltage rating of 125 V AC and current rating of 500 mA. Durable polysulfone housing supports robust mechanical stability. Explore related connectors and components in the FPC Connector category on EnvMart for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 125 V AC voltage and 500 mA current, making it suitable for low power signal and data interconnections.
It features a 1 mm pitch and has 12 contacts, designed for precise connectivity in high-density electronic assemblies.
The contact material is phosphor bronze, plated with tin bismuth over nickel for enhanced conductivity and corrosion resistance, while the housing is made from durable polysulfone.
The connector operates reliably within a temperature range of -20°C to 80°C.
This model uses solder termination, which is suitable for secure connections in electronic assemblies.
It features a surface mount design, which is ideal for space-constrained PCB layouts.
Yes, it has a non-ZIF insertion force and a locking mechanism that ensures secure and stable cable retention during operation.
The connector has a straight orientation, facilitating easier integration into PCB layouts.
It is widely used in automotive navigation and audio systems, digital cameras, home security devices, tablets, and smartphones, among others.
The design includes movable contacts which maintain secure electrical contact even when the cable is moved, enhancing reliability.
The connector is manufactured in India.
The staggered contact layout simplifies soldering during PCB assembly, making it easier to work with in high-density applications.
