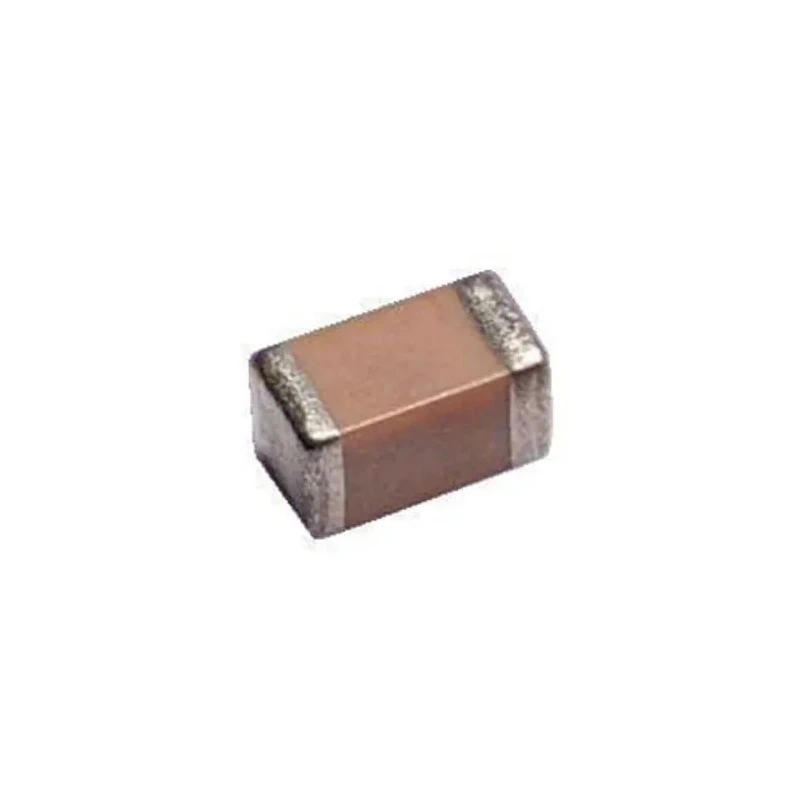

KYOCERA AVX 470 nF 10V DC ±10 % X5R Dielectric Multilayer Ceramic Capacitor Surface Mount 0402 0402ZD474KAT2A

Free Delivery in India | Lowest Global Shipping Charges

KYOCERA AVX 470 nF 10V DC ±10 % X5R Dielectric Multilayer Ceramic Capacitor Surface Mount 0402 0402ZD474KAT2A

Name: KYOCERA AVX 470 nF 10V DC ±10 % X5R Dielectric Multilayer Ceramic Capacitor Surface Mount 0402 0402ZD474KAT2A
Brand: KYOCERA AVX
SKU: 145279



Category MLCCs - Multilayer Ceramic Capacitors Brand KYOCERA AVX Condition New

Specifications

Country of Origin	India
Voltage	10V dc
Brand	KYOCERA AVX
Height	0.56mm
Length	1mm
Model	0402ZD474KAT2A
Packaging	Reel
Width	0.5mm
Mount Type	Surface
Series	KGM
Termination Type	Surface Mount
Maximum Operating Temperature	85°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Package/Case	0402
Dielectric	X5R
Suppression Class	Class II

Key Features

This surface mount device features an X5R dielectric, providing stable capacitance over temperature.
The capacitor is sized 0402 (1mm length x 0.5mm width x 0.56mm height) ideal for compact circuit designs.
It operates reliably between -55°C and 85°C suitable for various industrial applications.
Packaged on a reel to facilitate automated assembly and improve production efficiency.
Termination type is surface mount with nickel barrier terminations plated with tin for durability.
This component does not comply with automotive standards, limiting it to general electronics use.
Typical applications include decoupling, filtering, and noise suppression in electronic circuits.
The KGM series capacitor ensures class II suppression characteristics for effective electrical performance.

Product Description

KYOCERA AVX 0402ZD474KAT2A is a high-quality multilayer ceramic capacitor with a capacitance of 470 nanofarads and a rated DC voltage of 10 volts. Featuring an X5R dielectric material, it offers stable performance and capacitance values over a wide temperature range from -55°C to 85°C. With a tolerance of ±10 %, it is designed for surface mount technology applications, making it well-suited for compact and modern electronic designs.

This capacitor's 0402 package (1mm length, 0.5mm width, 0.56mm height) supports miniaturized circuitry commonly found in communications equipment, consumer electronics, and industrial control systems. The surface mount termination uses nickel barrier terminations plated with tin to ensure reliable soldering and connection integrity. Supplied on a reel, this component is optimized for automated assembly processes enhancing manufacturing efficiency.

The KGM series capacitor falls under Class II suppression, providing effective filtering and decoupling capabilities to reduce electrical noise and improve device stability. Although it does not meet automotive standards, it is ideal for use in general consumer electronics, telecommunications, and industrial equipment.

Common applications include power supply filtering, noise suppression in signal lines, and decoupling in mobile phones, video tuners, and other compact electronic devices. The component's X5R dielectric offers a balance of capacitance stability and temperature performance suitable for demanding environments.

This surface mount capacitor contains a capacitance of 470 nF with ±10 % tolerance. Operates at a maximum DC voltage of 10 volts. The 0402 package size enables compact PCB layout. Capacitor dielectric is X5R, providing temperature stability and durability.

Suitable for decoupling, filtering, and noise suppression applications in industrial and electronic equipment. Termination finishes ensure reliable soldering. Limits applicability to general electronics due to non-automotive certification.
