ITW Switches H48M Series Illuminated Momentary Panel Push Button Switch 19.6 mm Cutout SPDT Blue LED IP67 250 V H48M-112B

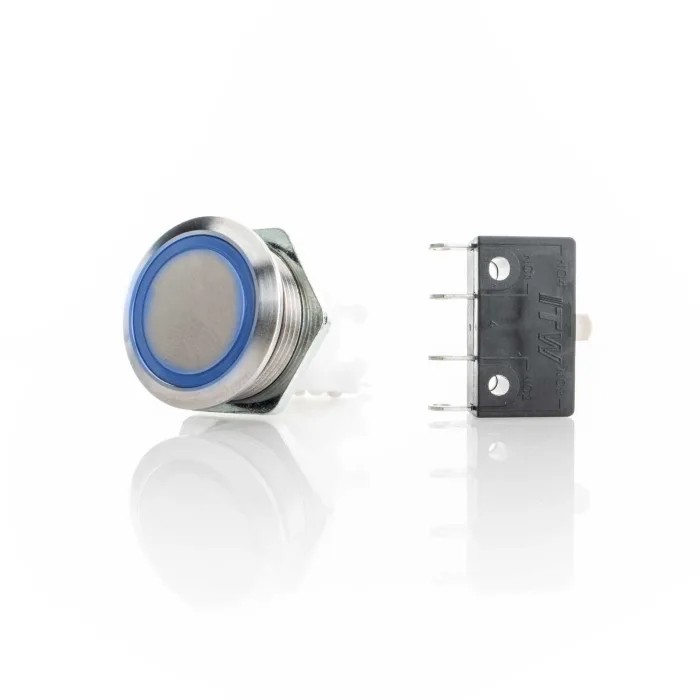

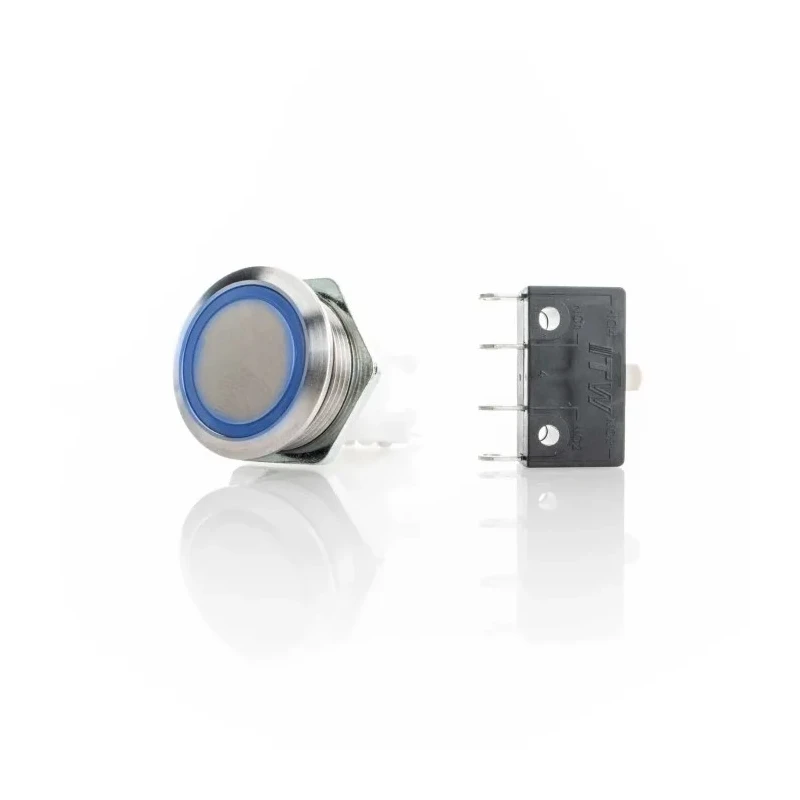

ITW Switches H48M-112B is a rugged, stainless steel illuminated push button switch from the H48M Series, featuring momentary operation and designed for panel mounting with a 19.6 mm cutout. This versatile switch incorporates a SPDT contact configuration and a blue LED to provide clear status indication.

Constructed with premium stainless steel housing, the switch offers excellent durability and resistance to harsh environments. It is sealed to IP67 standards by means of frontal sealing and an O-ring, ensuring protection against dust and water ingress, making it suitable for demanding industrial and commercial environments.

The switch provides electrical reliability with a contact rating up to 250 V AC/DC and 10 A contact current. The actuator is round and white in color, offering ergonomic operation. It supports a wide temperature range from -25°C to 85°C, allowing it to function efficiently in various conditions.

Installation is adaptable to panel thicknesses ranging from 0.5 mm to 4.5 mm, securing the switch firmly into place. The unit meets CSA and UL safety standards and is engineered for applications such as security systems, food processing equipment, medical devices, industrial machinery controls, mass transit vehicle installations, and lift trucks.

The switch operates electromechanically with momentary functionality for temporary engagement. The rugged stainless steel housing delivers long-lasting mechanical strength and resistance to corrosion. IP67 frontal sealing ensures effective dust and water protection for enhanced reliability.

Blue LED illumination provides clear visual feedback in various lighting conditions. Designed for flexible panel mounting in thicknesses from 0.5 mm to 4.5 mm. Wide ambient temperature capability suitable for industrial environments.

Compliant with recognized safety certifications, assuring quality and reliability. Applications include control equipment, security, food processing, medical installations, industrial machinery, and mass transit.

Explore the extensive range of Push Button Switches and components available, ideal for enhancing control interfaces in industrial and commercial systems with proven reliability and performance.
