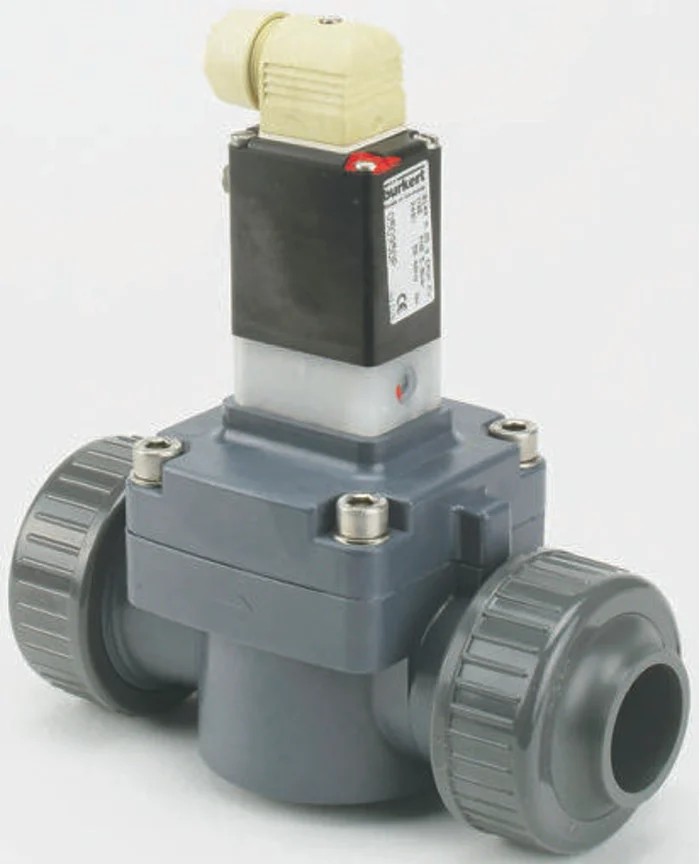

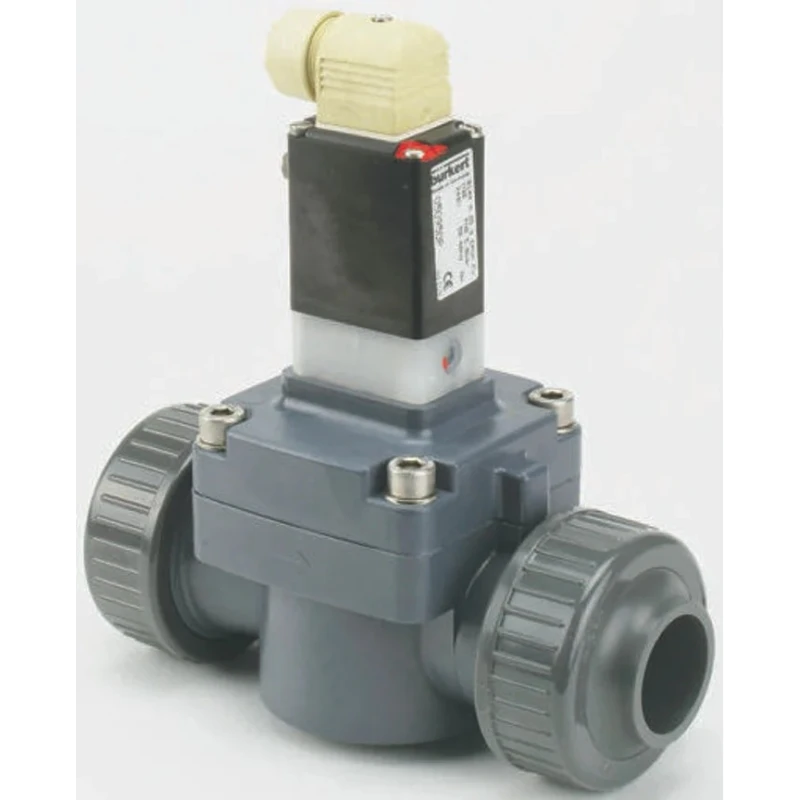

Burkert 2 Port Normally Closed Solenoid Valve Polyvinyl Chloride Body 110V ac 063241
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Polyvinyl Chloride |
| Maximum Operating Pressure | 6 bar |
| Model | 063241 |
| Ambient temperature range | 0 to 40°C |
| Pressure Range | 0.5 to 6 bar |
| Series | 142 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Orifice Diameter | 20mm |
| Supply Voltage | 110V ac |
| Default Valve Position | NC |
| Maximum Opening Time | 800ms |
| Flow Factor Kv | 14m³/h |
| Maximum Closing Time | 4s |
Key Features
- Constructed with polyvinyl chloride body and internal parts made of PVDF and PVC.
- Operates at a supply voltage of 110V ac with power consumption of 20VA inrush and 11VA/5W operation.
- Pressure range from 0.5 to 6 bar with a maximum operating pressure of 6 bar.
- Temperature range suitable from 0 to 40°C for ambient and fluid operation.
- Features double seal to valve interior and lockable manual override for secure operation.
- Orifice diameter is 20mm, allowing flow factor Kv of 14 m³/h.
- Maximum opening time of 800 milliseconds and closing time of 4 seconds.
- Ingress protection IP65 with cable plug Type 1051 ensures suitability for industrial environments.
Product Description
Burkert 063241 is a two-way, 2 port normally closed solenoid valve featuring a polyvinyl chloride body and internal components made from PVDF and PVC materials. It operates efficiently on a 110V ac power supply and is engineered for reliable control of aggressive liquids and gases in industrial environments.
The valve supports a pressure range of 0.5 to 6 bar, with a maximum operating pressure of 6 bar and handles temperatures from 0 to 40 degrees Celsius. Its orifice diameter of 20mm facilitates a flow factor Kv of 14 cubic meters per hour, suitable for medium flow rates.
Equipped with a double seal to protect the valve interior and a lockable manual override, it offers enhanced durability and user control. The valve has a maximum opening time of 800 milliseconds and a closing time of 4 seconds, allowing precise flow regulation.
Ingress protection rating IP65 with the appropriate cable plug ensures operation in harsh industrial settings. Its chemical resistant construction allows compatibility with aggressive liquids, acids, alkalis, and gases up to medium concentration levels.
This solenoid valve is ideal for applications in water treatment plants, chemical cleaning and washing systems, and the food and beverage industry, ensuring safe and efficient fluid control.
Constructed with polyvinyl chloride body and internal parts made of PVDF and PVC. Operates on 110V ac with power consumption of 20VA inrush and 11VA/5W operation. Pressure capabilities from 0.5 to 6 bar with maximum operating pressure of 6 bar.
Suitable for ambient and fluid temperatures from 0 to 40°C. Equipped with double seal and lockable manual override. Orifice diameter 20mm with flow factor Kv of 14 m³/h. Maximum opening time 800ms and closing time 4s. Ingress protection IP65 with cable plug Type 1051.
Designed for aggressive liquids and gases including acids and alkalis up to medium concentration. Explore more industrial valves and Solenoid Valves in our comprehensive EnvMart catalog to find the right solution for your fluid control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 6 bar.
It operates within a temperature range of 0 to 40°C for both ambient and fluid conditions.
The orifice diameter of this valve is 20mm.
The flow factor Kv for this solenoid valve is 14 m³/h.
This model requires a supply voltage of 110V ac.
The maximum opening time is 800 milliseconds, and the maximum closing time is 4 seconds.
The valve features a polyvinyl chloride body and internal parts made of PVDF and PVC.
Yes, it is equipped with a double seal to protect the valve interior and a lockable manual override for secure operation.
This unit has an ingress protection rating of IP65, making it suitable for industrial environments.
It is designed for applications involving aggressive liquids and gases, including use in water treatment plants and the food and beverage industry.
This model has 2 ports, functioning as a two-way valve.
The power consumption is 20VA inrush and 11VA/5W during operation.
