TE Connectivity CONN SEC II Series Right Angle Edge Connector Female PCB 20-Contacts 2.54 mm Pitch 2 Row 5650118-2

Free Delivery in India | Lowest Global Shipping Charges

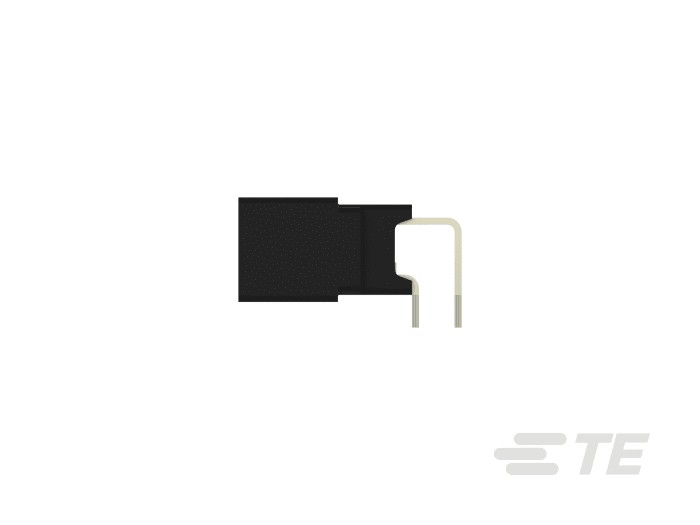

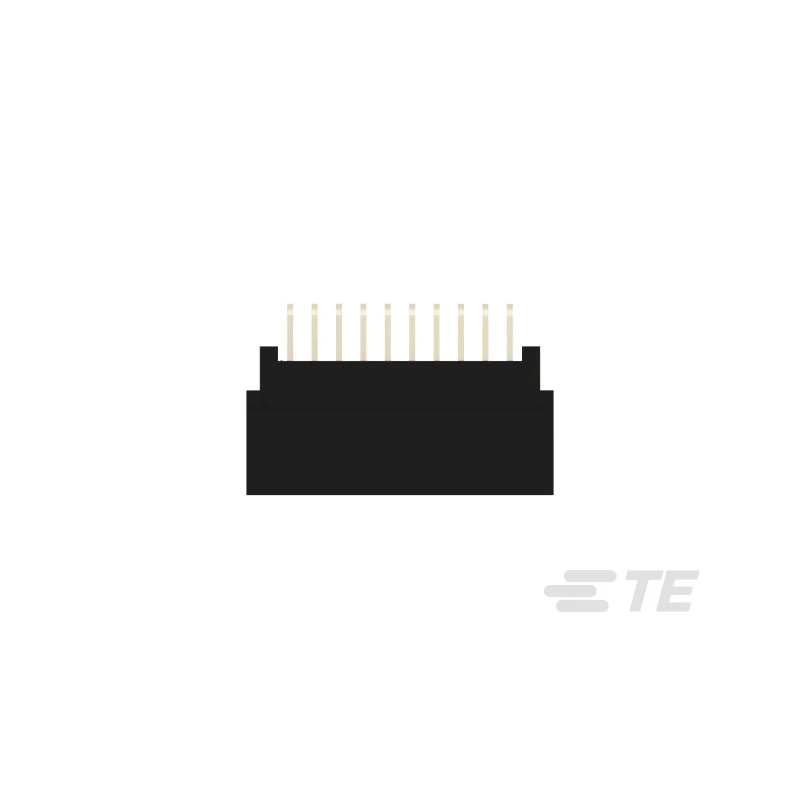

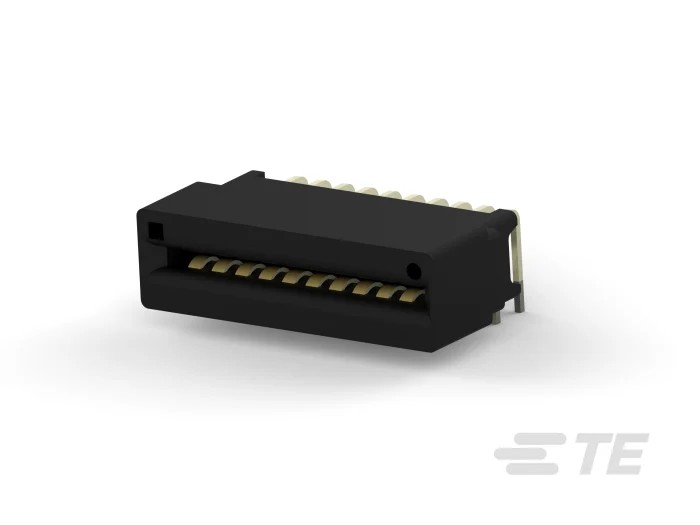

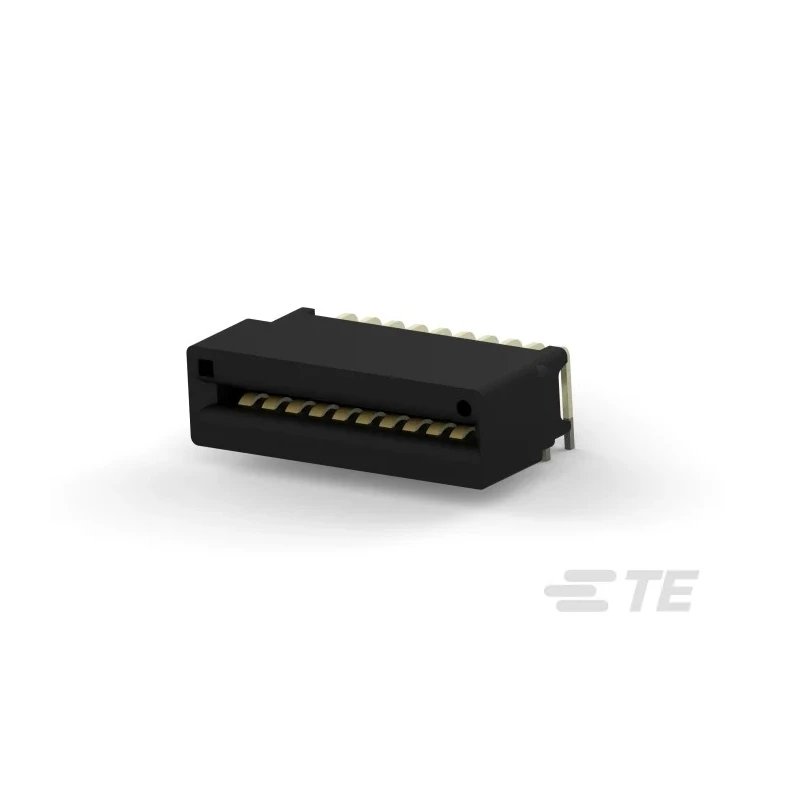

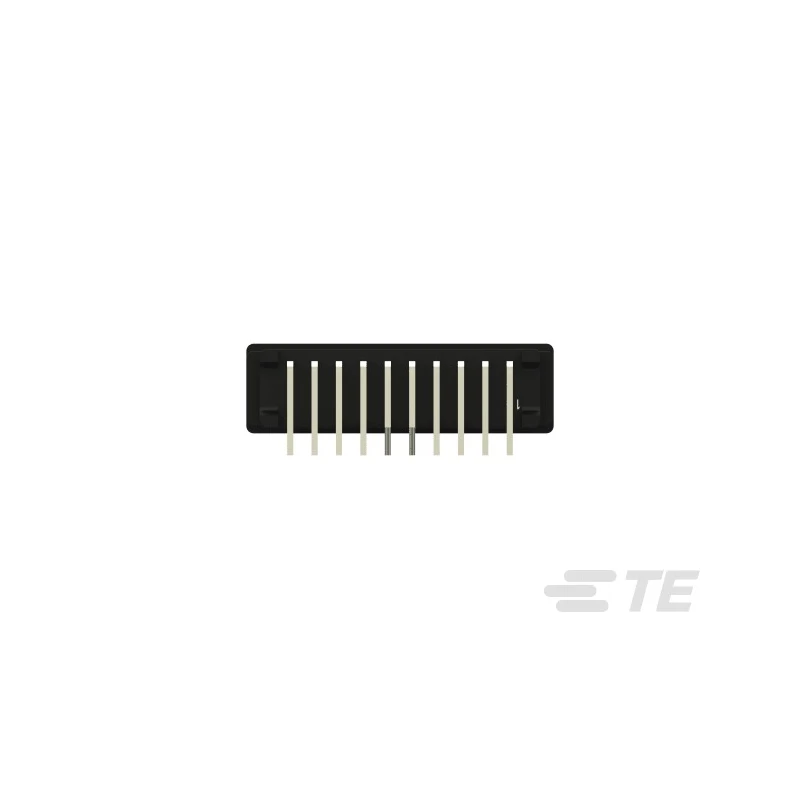

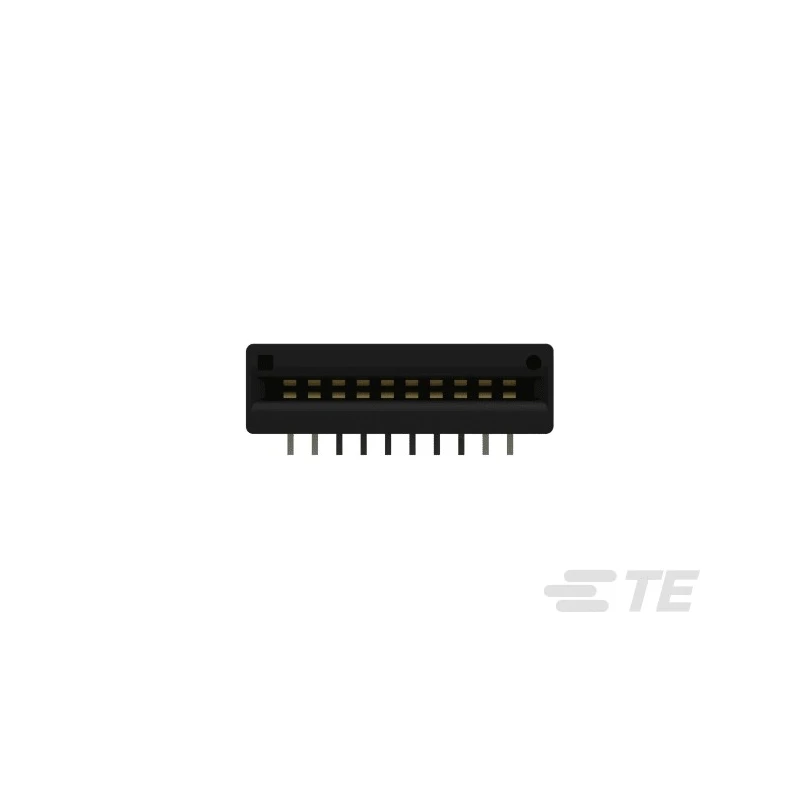

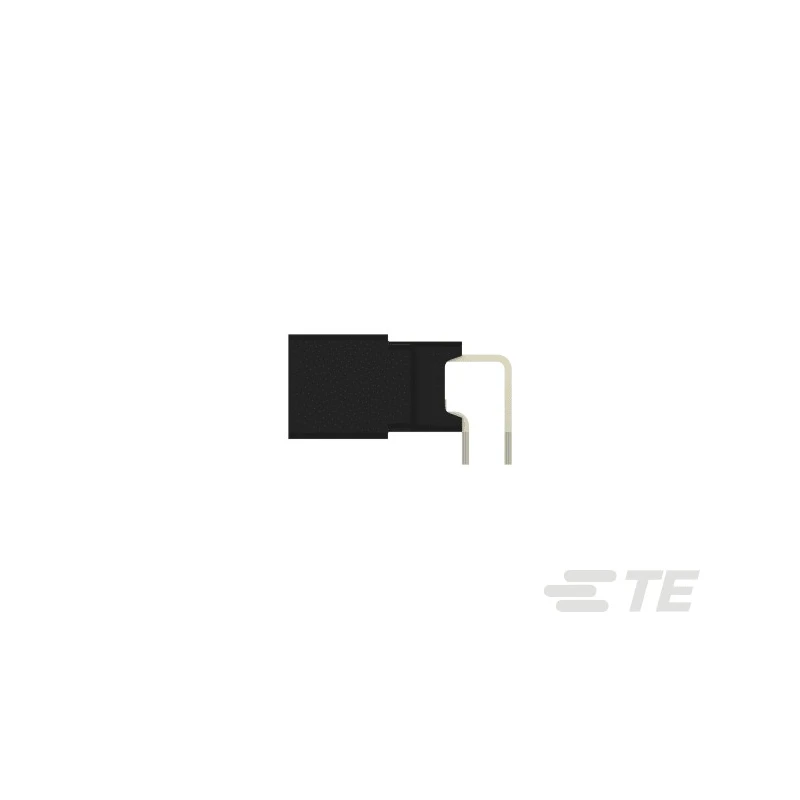

TE Connectivity CONN SEC II Series Right Angle Edge Connector Female PCB 20-Contacts 2.54 mm Pitch 2 Row 5650118-2

Name: TE Connectivity CONN SEC II Series Right Angle Edge Connector Female PCB 20-Contacts 2.54 mm Pitch 2 Row 5650118-2
Brand: TE Connectivity
SKU: 170124
Price: 8.38 USD
Availability: InStock



Category Edge Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	400V
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Mount Type	PCB
Housing Material	Polyester
Contact Material	Phosphor Bronze
Series	CONN SEC II
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Card Type	Edge

Key Features

Right angle orientation for PCB mounting applications.
20 gold-plated contacts arranged in 2 rows for reliable connectivity.
Phosphor bronze contact material enhances durability and conductivity.
Supports operating temperatures ranging from -55°C to 85°C.
Housing made of black polyester for electrical insulation and robustness.
Keying feature ensures correct mating and prevents damage.
Designed for 3 Amp current and a voltage rating of 400 Volts.
2.54 mm standard pitch suitable for industry PCB connectors.

Product Description

TE Connectivity 5650118-2 CONN SEC II Series Right Angle Edge Connector is a female PCB connector with 20 gold-plated contacts in a 2-row configuration. The connector features a pitch of 2.54 mm and phosphor bronze contacts, ensuring excellent electrical performance and mechanical durability. Its housing is made of black polyester material to provide reliable insulation and environmental protection.

This connector supports up to 3 Amps of current and can operate safely in temperatures ranging from -55°C to 85°C, making it suitable for a wide range of industrial, electronic, and power distribution applications. The right angle orientation facilitates board-to-board connections and optimal PCB layout design.

The keying mechanism prevents incorrect mating, enhancing system reliability and reducing potential damage during assembly. Rated for 400V, this edge connector complies with the CONN SEC II series standards.

Typical use cases include power connectors in electronic devices, industrial machinery, and telecommunications equipment where reliable and durable PCB connectors are essential. This product supports board mounting with gold plating for superior contact resistance and long service life.

Right angle orientation for PCB mounting applications. 20 gold-plated contacts arranged in 2 rows for reliable connectivity. Phosphor bronze contact material enhances durability and conductivity. Supports operating temperatures ranging from -55°C to 85°C.

Housing made of black polyester for electrical insulation and robustness. Keying feature ensures correct mating and prevents damage. Designed for 3 Amp current and a voltage rating of 400 Volts. 2.54 mm standard pitch suitable for industry PCB connectors.

Conforms to CONN SEC II series specifications. Ideal for electronic, industrial, and power connector applications.

Set contains one TE Connectivity 5650118-2 Right Angle Edge Connector PCB component. Browse our catalog for more TE Connectivity electronic components and Edge Connectors to fit your industrial needs at EnvMart.
