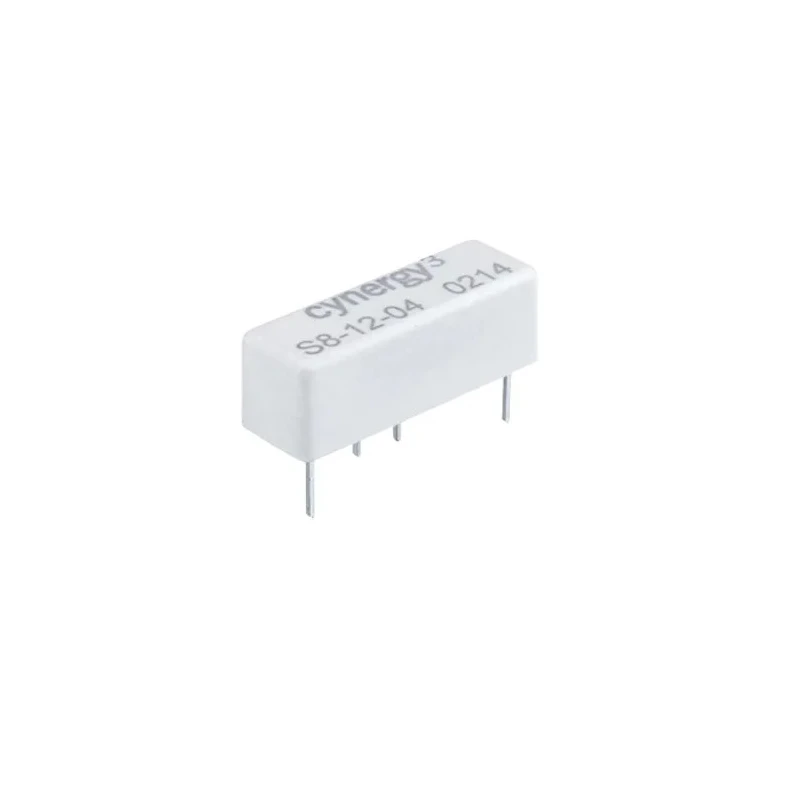

Cynergy3 PCB Reed Relay, 12V DC Coil, SPST Contact Configuration, 1000V DC Max, 1A Max, 750 Ω Coil Resistance

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 PCB Reed Relay, 12V DC Coil, SPST Contact Configuration, 1000V DC Max, 1A Max, 750 Ω Coil Resistance

Name: Cynergy3 PCB Reed Relay, 12V DC Coil, SPST Contact Configuration, 1000V DC Max, 1A Max, 750 Ω Coil Resistance
Brand: Cynergy3
SKU: 142118
Price: 32.84 USD
Availability: InStock



Category Reed Relay Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Height	12mm
Length	30mm
Model	Cynergy3
Operating Time	1ms
Mount Type	PCB
Series	S8 (UL)
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Contact Resistance	150mΩ
Standards/Approvals	UR
Coil Resistance	750Ω
Isolation Coil To Contact	7kV

Key Features

Features a compact design measuring 30 x 10 x 12 mm for space-limited circuit applications.
Boasts a coil resistance of 750 Ω and fast operating time of 1 millisecond.
Designed for PCB mounting with PCB terminals for easy integration.
Operates efficiently within a temperature range from -40°C to +85°C for reliability in harsh environments.
Offers high isolation voltage of 7 kV between coil and contact for safety and durability.
Equipped with rhodium contacts providing low contact resistance of 150 mΩ for rapid electrical transfer.
Supports a long lifespan rated at one billion dry operations assuring extended durability.
Certified with UR standards ensuring quality and compliance.

Product Description

Cynergy3 S8-1204VU/RS PCB Reed Relay is a high-quality reed relay designed for industrial and commercial electrical applications requiring fast, reliable switching control. Featuring a 12V DC coil voltage, this relay supports single pole single throw (SPST) contact configuration offering normally open operation suitable for circuits demanding precise control without continuous current.

The relay's compact dimensions of 30mm length, 10mm width, and 12mm height enable mounting in tight spaces on printed circuit boards using PCB terminals. The coil resistance is 750 Ω, while coil power consumption is optimized for efficient performance.

Operating temperatures range from -40°C to +85°C, allowing the relay to function effectively under extreme environments, making it ideal for industrial automation, control panels, and instrumentation equipment. The relay ensures electrical safety with a coil-to-contact isolation voltage rated at 7kV and comes with rhodium-plated contacts which exhibit low contact resistance of 150mΩ, enhancing switching speed and reducing power losses.

With a rapid operating time of just 1 millisecond including bounce time, the relay facilitates quick switching ideal for time-sensitive circuits. The product is certified under the UR standard and is part of the S8 (UL) series, reflecting trusted quality and compliance.

The relay is well-suited for use in industrial controls, measuring instruments, telecommunications, HVAC systems, and other electronics requiring reliable and efficient switching with minimal space requirements. Its robust construction supports a long operational lifespan rated at one billion dry operations, ensuring stability and reliability throughout extensive use.

Compact size supports PCB mounting and space-saving circuit design. High voltage rating of 1000 V DC supports diverse application scenarios. Rhodium contacts guarantee low resistance and improved conductivity. Wide operating temperature range from -40°C to +85°C.

Fast 1 ms operating time for timely circuit switching. Discover Cynergy3 Reed Relays at EnvMart for reliable industrial and automation solutions with high-quality standards.
