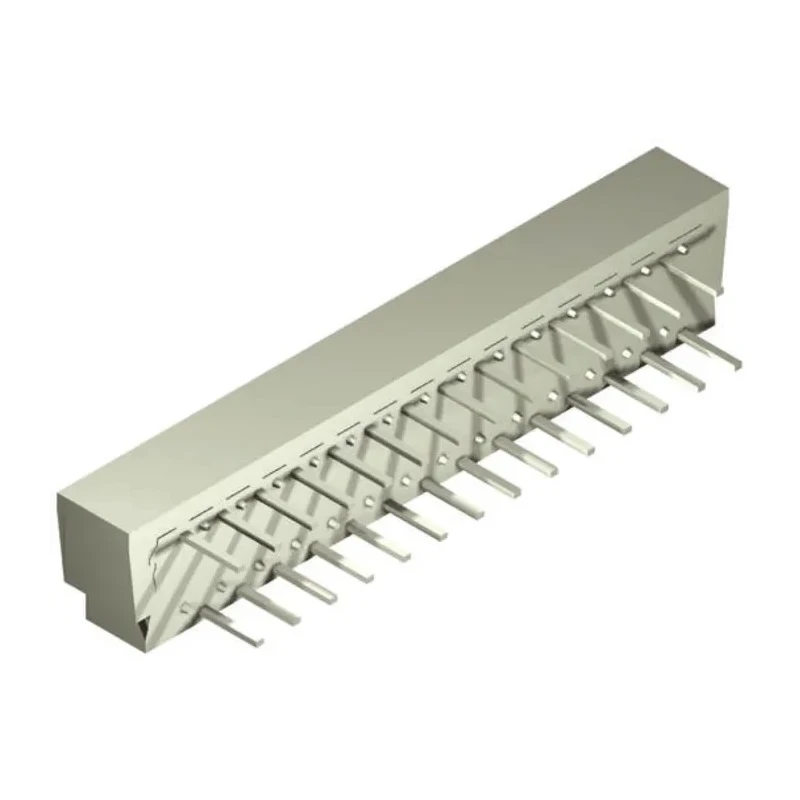

Molex FPC Connector 1.25 mm Pitch 22 Way Right Angle Female Solder Through Hole 200V 1A 5597 Series 39-53-2224

Molex 39-53-2224 is a 5597 Series FPC connector featuring a 1.25 mm pitch and 22 way right angle female contacts designed for solder through hole mounting. It incorporates a zero insertion force (ZIF) slide type actuator providing reliable and repeatable connections ideal for high-density electronic designs.

The connector's phosphor bronze contacts are plated with tin bismuth over nickel, offering excellent electrical performance and corrosion resistance. The housing is crafted from polybutylene terephthalate, contributing to mechanical durability and thermal stability between -20°C and 80°C. This product supports currents up to 1A and voltages up to 200V, matching the requirements of automotive electronic systems and other tight packaging applications.

The 5597 series enables space saving with a compact right angle orientation and a single row of contacts. The locking mechanism ensures secure assembly even under vibration and mechanical stress. This FPC connector is ideal for industrial, automotive, and other electronics manufacturing sectors where space and reliability are critical.

Zero Insertion Force slide actuator for secure FPC connection. Phosphor bronze contacts with tin bismuth plating. 1A current rating and 200V voltage rating. Polybutylene terephthalate housing for durability. Locking mechanism for connection security.

Operating temperature: -20°C to 80°C. Space saving right angle orientation. Single row, 22 way female contacts.

This Molex 5597 series FPC Connector provides a balance of compact design, electrical reliability, and ease of assembly. It is suitable for incorporation in automotive electronics, industrial controls, and advanced consumer electronic devices.
