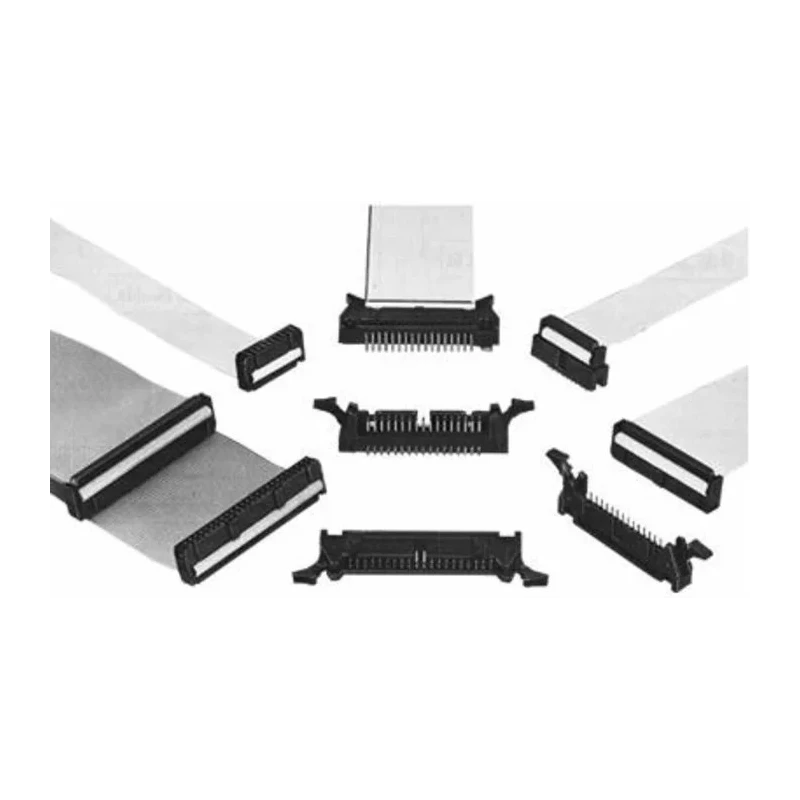

Hirose 64-Way IDC Connector Male for Through Hole 650V AC 1A Pitch 2.54mm Right Angle HIF3BB-64PA-2.54DS(63)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 650V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 1A |
| Model | HIF3BB-64PA-2.54DS(63) |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | HIF3B |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Designed for through-hole mounting with a right angle orientation.
- Supports current rating of 1 amp and voltage up to 650V AC.
- Features gold-plated brass contacts for enhanced conductivity and durability.
- Pitch spacing between contacts is 2.54 mm, suitable for UL2651 AWG#28 flat cables.
- Constructed with a shrouded design to help prevent mis-insertion during assembly.
- Housing material is durable polybutylene terephthalate ensuring long-lasting performance.
- Operates reliably over a temperature range from -55°C to 85°C.
- Termination type is solder, suitable for secure PCB connections.
Product Description
Hirose HIF3BB-64PA-2.54DS(63) is a 64-way IDC Connector with male contacts designed for electronic components and PCB wiring applications. It supports through-hole mount type with a right angle orientation, suitable for compact assembly layouts.
The connector can handle currents of 1 amp and withstand voltages up to 650V AC, making it ideal for various electronic and electrical systems. It has 64 contacts arranged in two rows with a pitch of 2.54 mm, compatible with UL2651 AWG#28 flat ribbon cables. The gold-plated brass contacts ensure excellent conductivity and resistance to corrosion.
Its shrouded design minimizes the risk of mis-insertion, improving connection reliability. The polybutylene terephthalate housing provides mechanical strength and heat resistance, allowing operation in harsh industrial environments from -55°C to 85°C.
Termination is done via soldering, ensuring a solid electrical and mechanical connection to PCBs. This connector series (HIF3B) is used widely in industrial automation, telecommunications, instrumentation, and electronic manufacturing.
Designed for through-hole mounting with right angle orientation for space-saving PCB integration. Gold-plated brass contacts provide durability and stable signal transmission. Shrouded mechanism to prevent mis-insertion and ensure connection integrity.
Polybutylene terephthalate housing offers chemical and thermal resistance. Supports up to 1 amp current and 650V AC operating voltage for various applications. Operating temperature range from -55°C to 85°C suits demanding industrial environments.
Perfect for use with UL2651 AWG#28 flat ribbon cables in electronic assemblies.
Ideal for industrial, manufacturing, telecommunications, and laboratory applications requiring reliable ribbon cable connections. Hirose connectors are trusted for quality and precision in high-performance electrical systems.
Explore more in the Electronics & Electricals category for connectors and related components on EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of up to 650V AC.
The connector can handle a current of 1 amp.
The pitch spacing between the contacts is 2.54 mm.
It is designed for through-hole mounting with a right angle orientation.
The housing is made from polybutylene terephthalate, and the contacts are gold-plated brass.
It operates reliably over a temperature range from -55°C to 85°C.
This connector has a total of 64 contacts arranged in two rows.
The termination type is solder, which ensures a secure connection to PCBs.
It features a shrouded design to help prevent mis-insertion during assembly.
It is ideal for use in industrial automation, telecommunications, instrumentation, and electronic manufacturing.
The country of origin for this connector is Malaysia.
The contact gender for this model is male.
