| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | DMN31D5L-7 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | DMN |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 0.5A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 2mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 520mW |
| Typical Gate Charge Qg @ Vgs | 1.2nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1.2V |

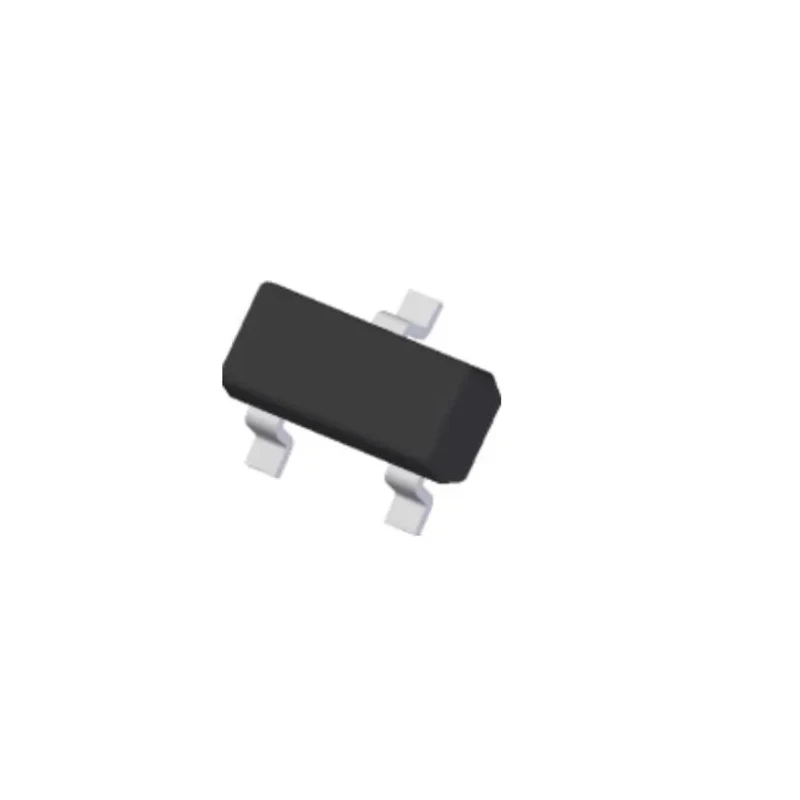

The DiodesZetex DMN31D5L-7 is a high-performance Type N-Channel Enhancement MOSFET optimized for efficient power management. With a maximum continuous drain current of 0.5 A and a drain-source voltage rating of 30 V, this device ensures reliable performance in demanding electronic applications.
Its low on-resistance and low input capacitance facilitate minimal power loss and fast switching speeds, making it ideal for motor control, backlighting, and general power management systems in industrial and commercial electronics.

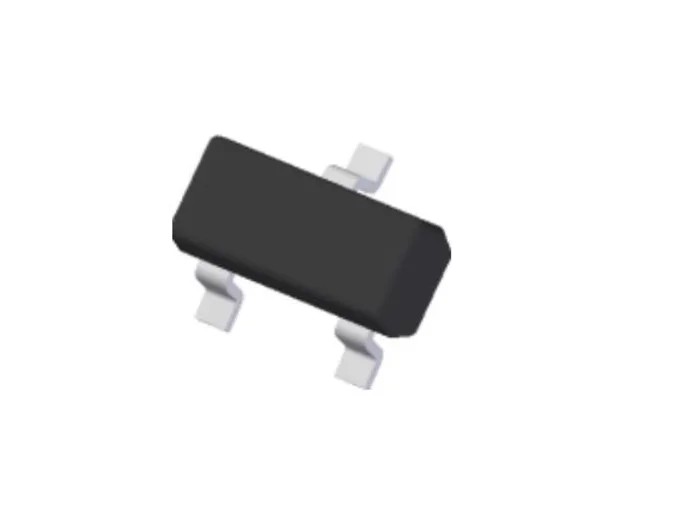

The MOSFET comes in a compact 3-pin SOT-23 package designed for surface mounting, measuring 3 mm in length, 1.4 mm in width, and 1 mm in height, enabling integration in densely packed circuit boards.
The component is fully compliant with automotive standard AEC-Q101, ensuring reliability in automotive and industrial environments. It operates effectively in temperature ranges from -55°C up to 150°C.
Other features include a maximum power dissipation of 520 mW, typical gate charge of 1.2 nC, and forward voltage of 1.2 V, supporting efficient operation and switching. This MOSFET is lead-free, halogen-free, and halogen and antimony free, making it a green device suitable for environmentally conscious designs.
Low on-resistance and input capacitance for high efficiency. Fast switching speed suitable for dynamic applications. Wide temperature operating range from -55°C to 150°C. Compact 3-pin SOT-23 package for surface mounting.
Compliance with automotive standard AEC-Q101. Maximum power dissipation of 520 mW for reliable operation. Environmentally friendly, lead-free, and halogen-free construction.
This DiodesZetex DMN31D5L-7 MOSFET is suitable for use in industrial, automotive, and electronic manufacturing sectors, offering an efficient solution for power management, motor control, and backlighting systems. Browse the Electronics & Electricals category at EnvMart for more semiconductor components including MOSFETs.
